Century Spring

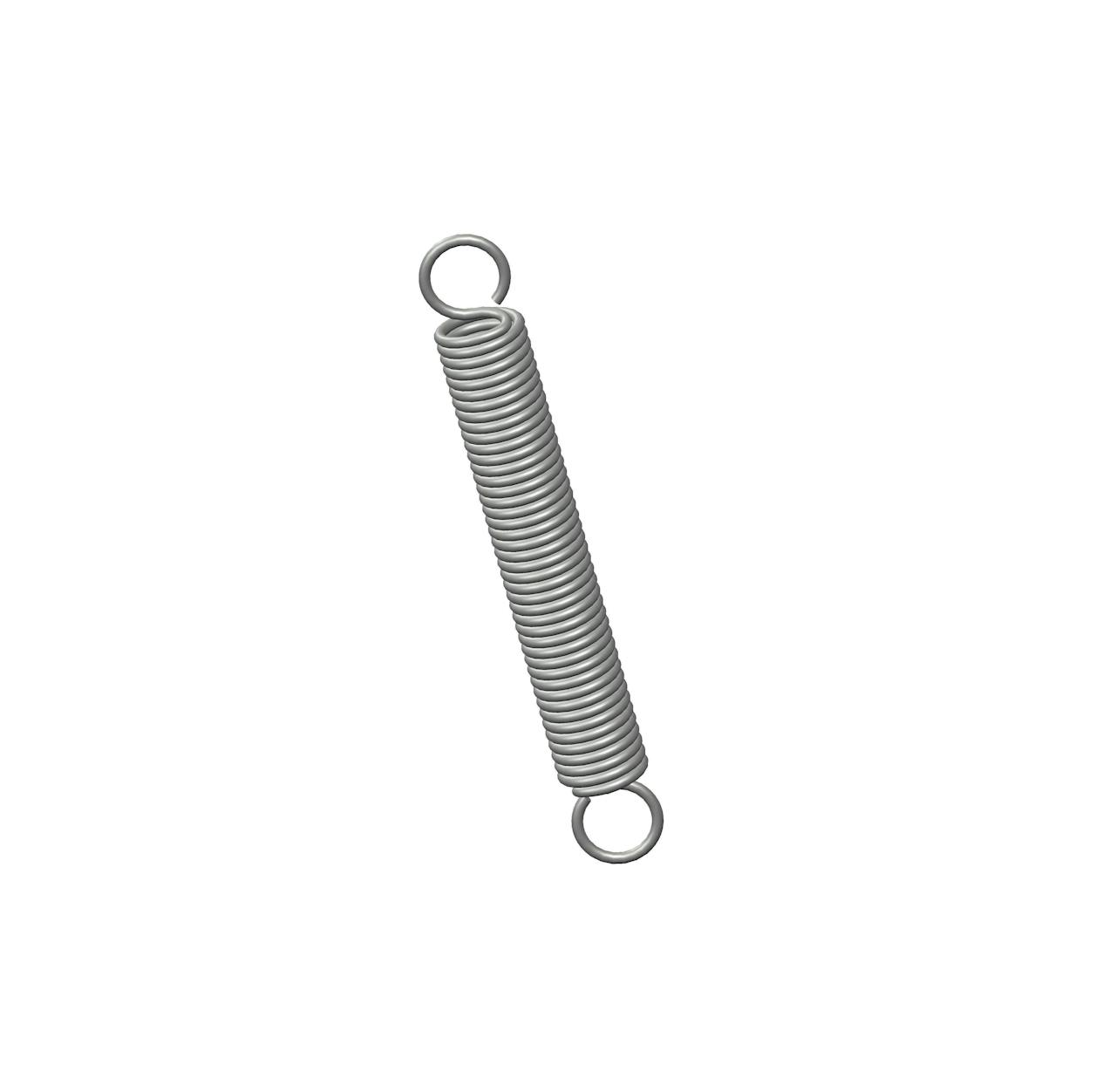

5125CS - 2.5 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.343 Inch and an initial tension of 2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5125
Ends Full Loop
Finish Zinc
Initial Tension 2 lb
Length 2.5 in
Material Spring Steel
Outside Diameter 0.343 in
Part Type Standard
Rate 4.3 lbs/in
SKU 5125CS
Sugg Max Deflection 1.7 in
Sugg Max Load 9 lbf
Wind Direction Left
Wire Diameter 0.044 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5125
Ends Full Loop
Finish Zinc
Initial Tension 0.91 kg
Length 63.5 mm
Material Spring Steel
Outside Diameter 8.71 mm
Part Type Standard
Rate 0.75 N/mm
SKU 5125CS
Sugg Max Deflection 43.18 mm
Sugg Max Load 40.03 N
Wind Direction Left
Wire Diameter 1.12 mm
