Century Spring

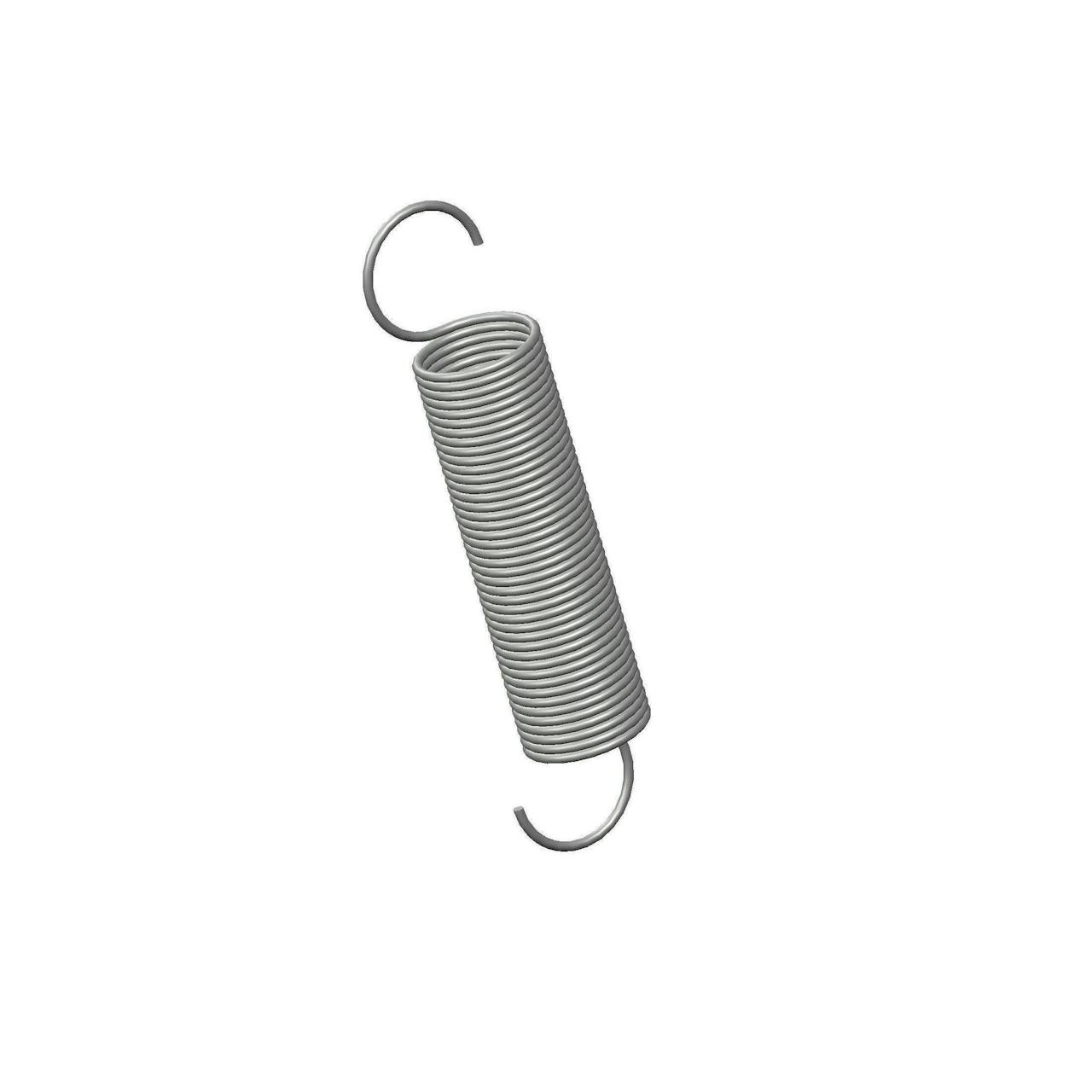

5117CS - 0.81 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.156 Inch and an initial tension of 0.04 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5117
Ends Side Hook
Finish None
Initial Tension 0.04 lb
Length 0.81 in
Material Music Wire
Outside Diameter 0.156 in
Part Type Standard
Rate 0.21 lbs/in
SKU 5117CS
Sugg Max Deflection 2.8 in
Sugg Max Load 0.64 lbf
Wind Direction Left
Wire Diameter 0.012 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5117
Ends Side Hook
Finish None
Initial Tension 0.02 kg
Length 20.57 mm
Material Music Wire
Outside Diameter 3.96 mm
Part Type Standard
Rate 0.04 N/mm
SKU 5117CS
Sugg Max Deflection 71.12 mm
Sugg Max Load 2.85 N
Wind Direction Left
Wire Diameter 0.3 mm
