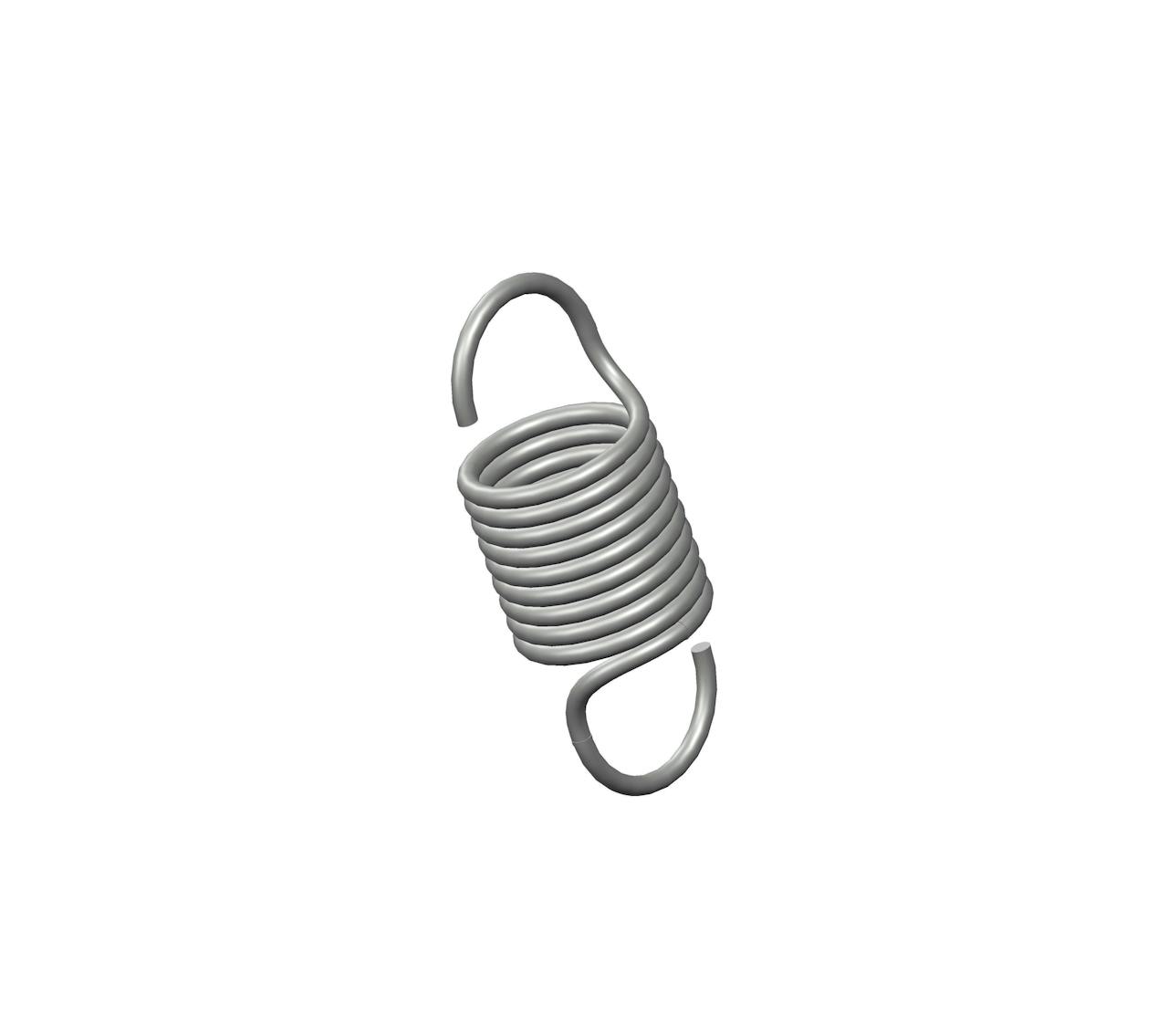

5097CS - 2.17 Inch High Carbon Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in High Carbon Steel. This spring features an O.D. of 0.75 Inch and an initial tension of 4 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5097
Ends Machine Hook
Finish Zinc
Initial Tension 4 lb
Length 2.17 in
Material High Carbon Steel
Outside Diameter 0.75 in
Part Type Standard
Rate 12 lbs/in
SKU 5097CS
Sugg Max Deflection 1.6 in
Sugg Max Load 22 lbf
Wire Diameter 0.08 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5097
Ends Machine Hook
Finish Zinc
Initial Tension 1.81 kg
Length 55.12 mm
Material High Carbon Steel
Outside Diameter 19.05 mm
Part Type Standard
Rate 2.1 N/mm
SKU 5097CS
Sugg Max Deflection 40.64 mm
Sugg Max Load 97.86 N
Wire Diameter 2.03 mm
