50924SCS - 2.756" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

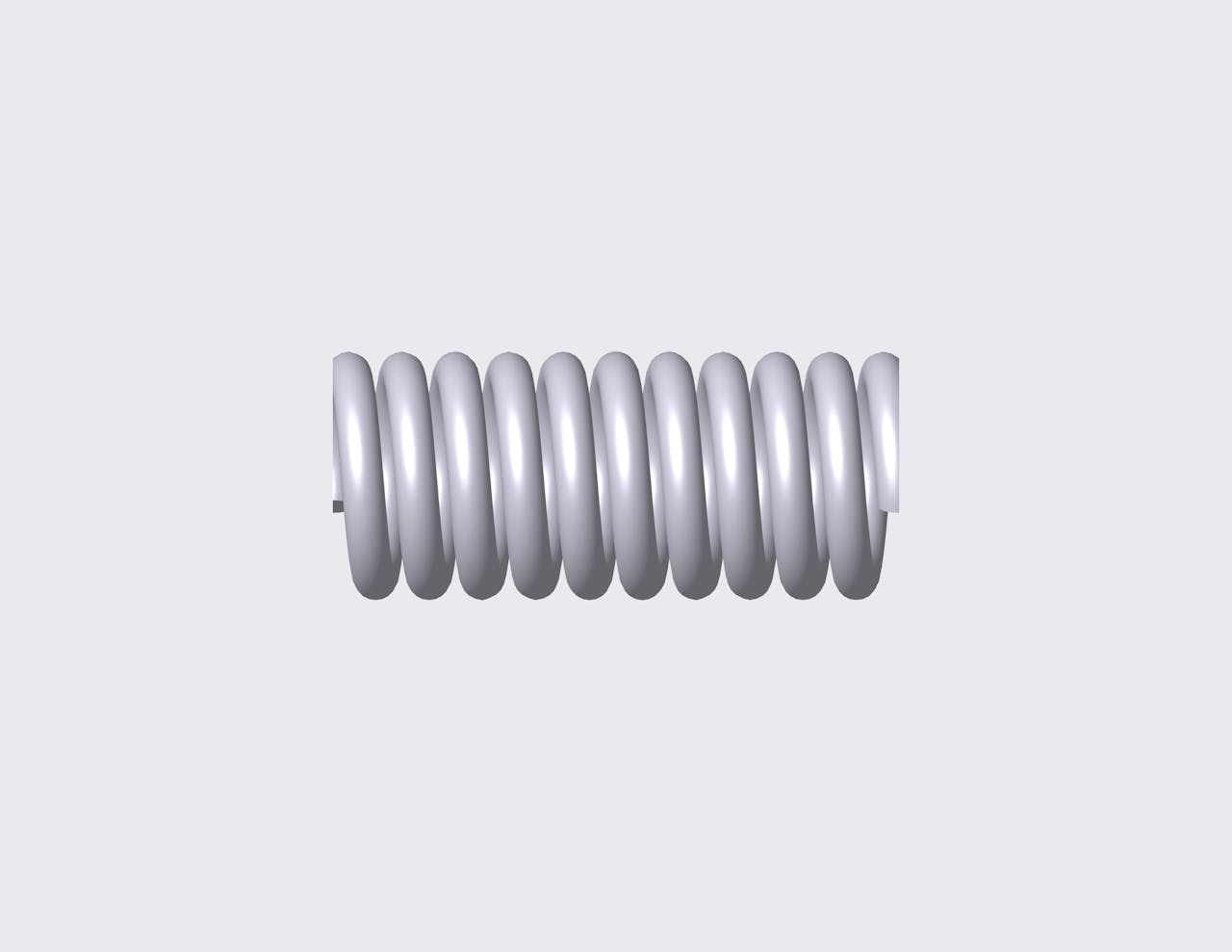

Compression spring manufactured from 316 stainless steel with 9.8 coils and closed & ground ends. This spring features an O.D. of 1.211", and an I.D. of 0.797".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 50924S |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 2.756 in |
| Inside Diameter | 0.797 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 1.211 in |
| Rate | 291.277 lbs/in |
| SKU | 50924SCS |
| Solid Length | 2.029 in |
| Suggested Max Deflection | 0.506 in |
| Suggested Max Load | 147.423 lbf |
| Total Coils | 9.8 |
| Wire Diameter | 0.207 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 50924S |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 70 mm |
| Inside Diameter | 20.24 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 30.76 mm |
| Rate | 51 N/mm |
| SKU | 50924SCS |
| Solid Length | 51.54 mm |
| Suggested Max Deflection | 12.85 mm |
| Suggested Max Load | 655.74 N |
| Total Coils | 9.8 |
| Wire Diameter | 5.26 mm |
The 50924S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 316 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The 50924SCS compression spring is designed with a free length of 1.969" total of 7.3 coils, and a rate of 428.672 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 50924S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The 50924SCS compression spring is designed with a free length of 1.969" total of 7.3 coils, and a rate of 428.672 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 50924S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
