Century Spring

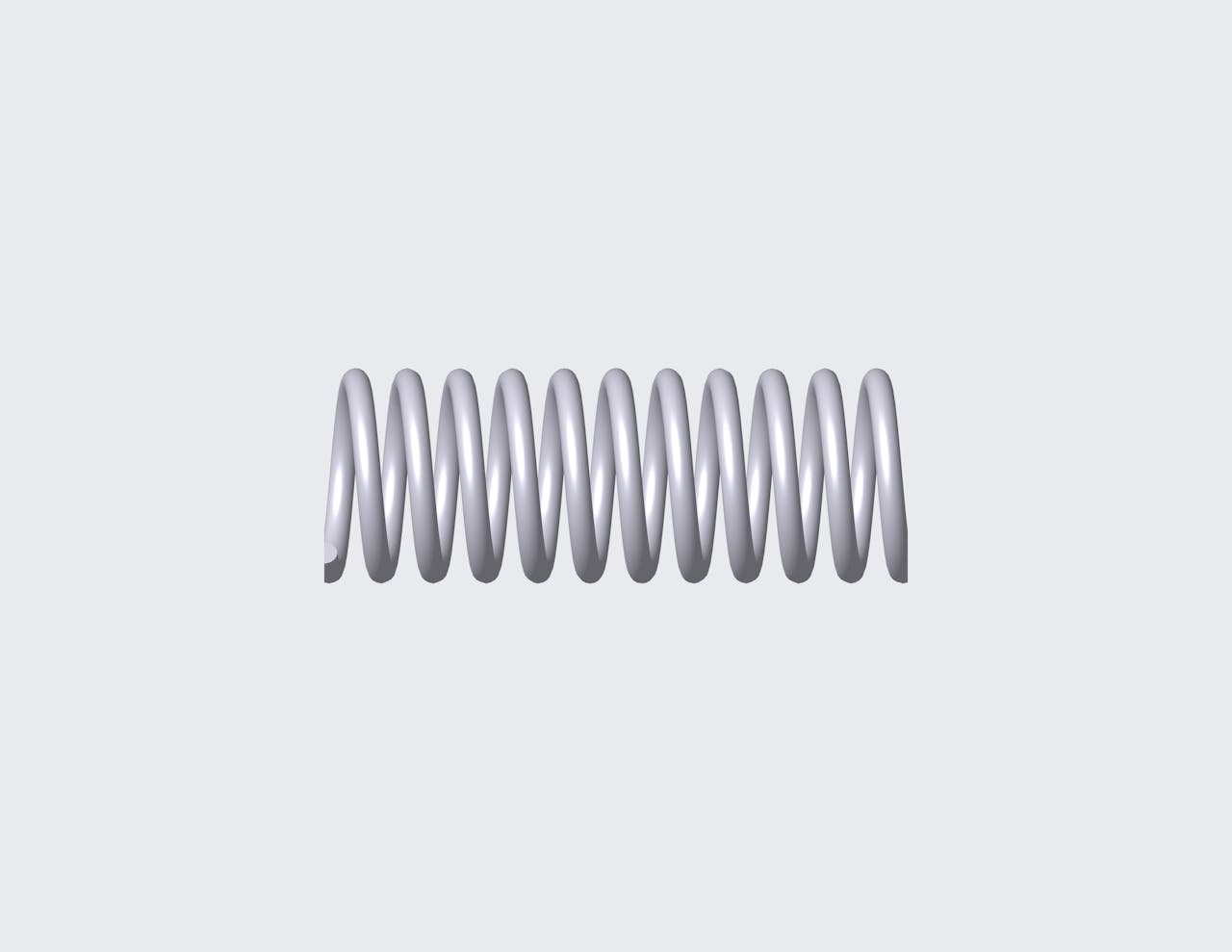

50896SCS - 3.15" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 10.7 coils and closed & ground ends. This spring features an O.D. of 1.164", and an I.D. of 0.883".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50896S
Ends Closed & Ground
Finish Passivated
Free Length 3.15 in
Inside Diameter 0.883 in
Material 316 Stainless Steel
Outside Diameter 1.164 in
Rate 51.694 lbs/in
SKU 50896SCS
Solid Length 1.5 in
Suggested Max Deflection 1.099 in
Suggested Max Load 56.819 lbf
Total Coils 10.7
Wire Diameter 0.14 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50896S
Ends Closed & Ground
Finish Passivated
Free Length 80.01 mm
Inside Diameter 22.43 mm
Material 316 Stainless Steel
Outside Diameter 29.57 mm
Rate 9.05 N/mm
SKU 50896SCS
Solid Length 38.1 mm
Suggested Max Deflection 27.91 mm
Suggested Max Load 252.73 N
Total Coils 10.7
Wire Diameter 3.56 mm
The 50896SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.14" diameter 316 stainless steel, the 50896S spring design exhibits reliable strength across its 10.7 active coils, withstanding repeated compression cycles with a maximum load of 56.819 lbf without succumbing to fatigue.

We manufacture the 50896S design to provide a compression spring that is 3.15" long at rest and provides a consistent rate of 51.694 lbs/in along its recommended maximum of 1.099" deflection. For best results, your application should fully accommodate the inner (0.883") and outer (1.164") diameters of this spring and be designed for its closed & ground end configuration.
