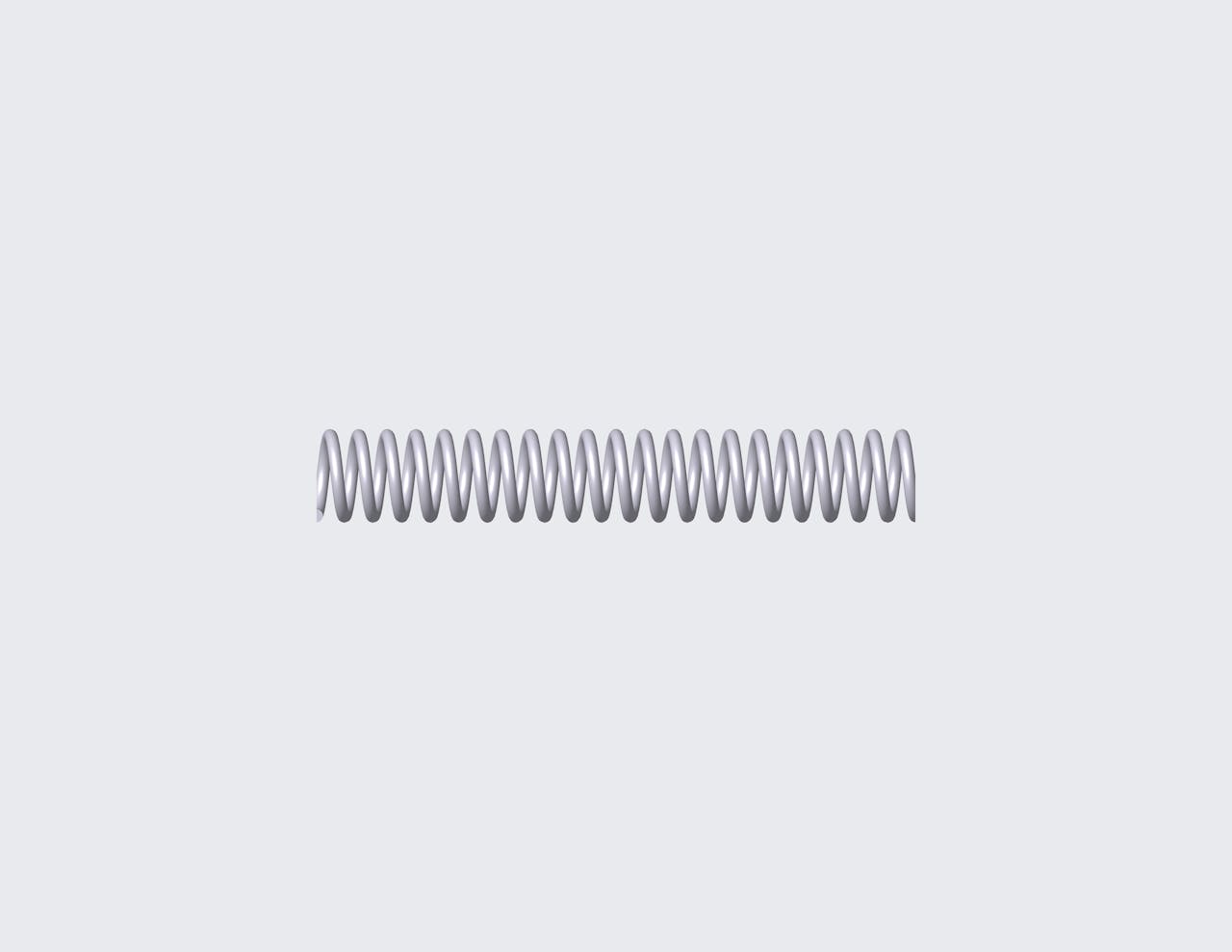

50882SCS - 7.283" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 316 stainless steel with 20.5 coils and closed & ground ends. This spring features an O.D. of 1.142", and an I.D. of 0.827".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 50882S |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 7.283 in |
| Inside Diameter | 0.827 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 1.142 in |
| Rate | 43.584 lbs/in |
| SKU | 50882SCS |
| Solid Length | 3.228 in |
| Suggested Max Deflection | 1.813 in |
| Suggested Max Load | 79.021 lbf |
| Total Coils | 20.5 |
| Wire Diameter | 0.157 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 50882S |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 184.99 mm |
| Inside Diameter | 21.01 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 29.01 mm |
| Rate | 7.63 N/mm |
| SKU | 50882SCS |
| Solid Length | 81.99 mm |
| Suggested Max Deflection | 46.05 mm |
| Suggested Max Load | 351.49 N |
| Total Coils | 20.5 |
| Wire Diameter | 3.99 mm |
The compression spring 50882SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 50882S compression spring design exhibits exceptional tensile strength and resilience.
The 50882S design is manufactured with a free length of 7.283", with an outer diameter of 1.142", an inner diameter of 0.827", and a total of 20.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 43.584 lbs/in.
The 50882SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 50882S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 50882S design is manufactured with a free length of 7.283", with an outer diameter of 1.142", an inner diameter of 0.827", and a total of 20.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 43.584 lbs/in.
The 50882SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 50882S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
