Century Spring

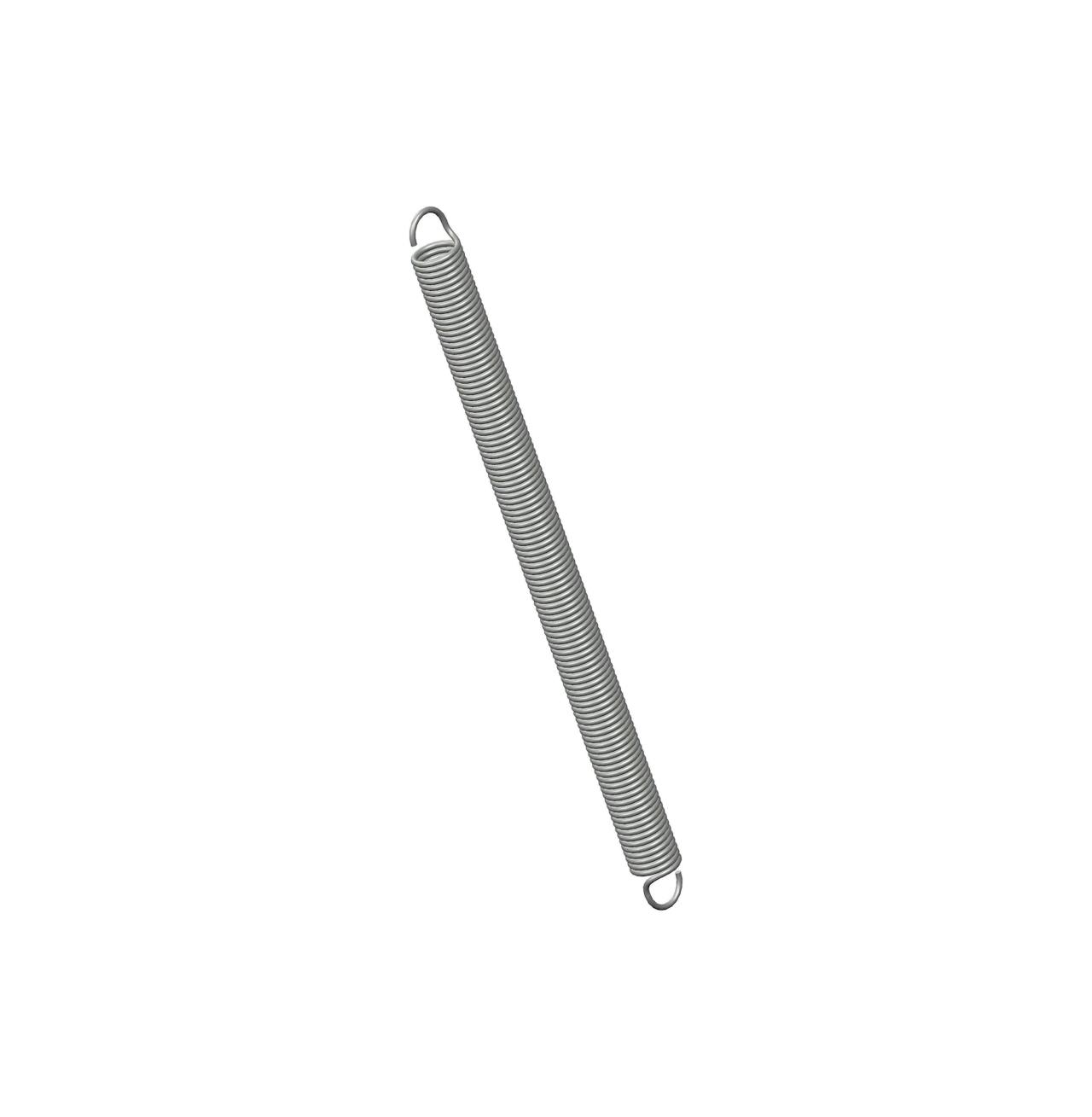

5087CS - 5 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.328 Inch and an initial tension of 1 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5087
Ends Side Loop
Finish Zinc
Initial Tension 1 lb
Length 5 in
Material Spring Steel
Outside Diameter 0.328 in
Part Type Standard
Rate 1.6 lbs/in
SKU 5087CS
Sugg Max Deflection 4 in
Sugg Max Load 7.6 lbf
Wind Direction Left
Wire Diameter 0.041 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5087
Ends Side Loop
Finish Zinc
Initial Tension 0.45 kg
Length 127 mm
Material Spring Steel
Outside Diameter 8.33 mm
Part Type Standard
Rate 0.28 N/mm
SKU 5087CS
Sugg Max Deflection 101.6 mm
Sugg Max Load 33.8 N
Wind Direction Left
Wire Diameter 1.04 mm
