Century Spring

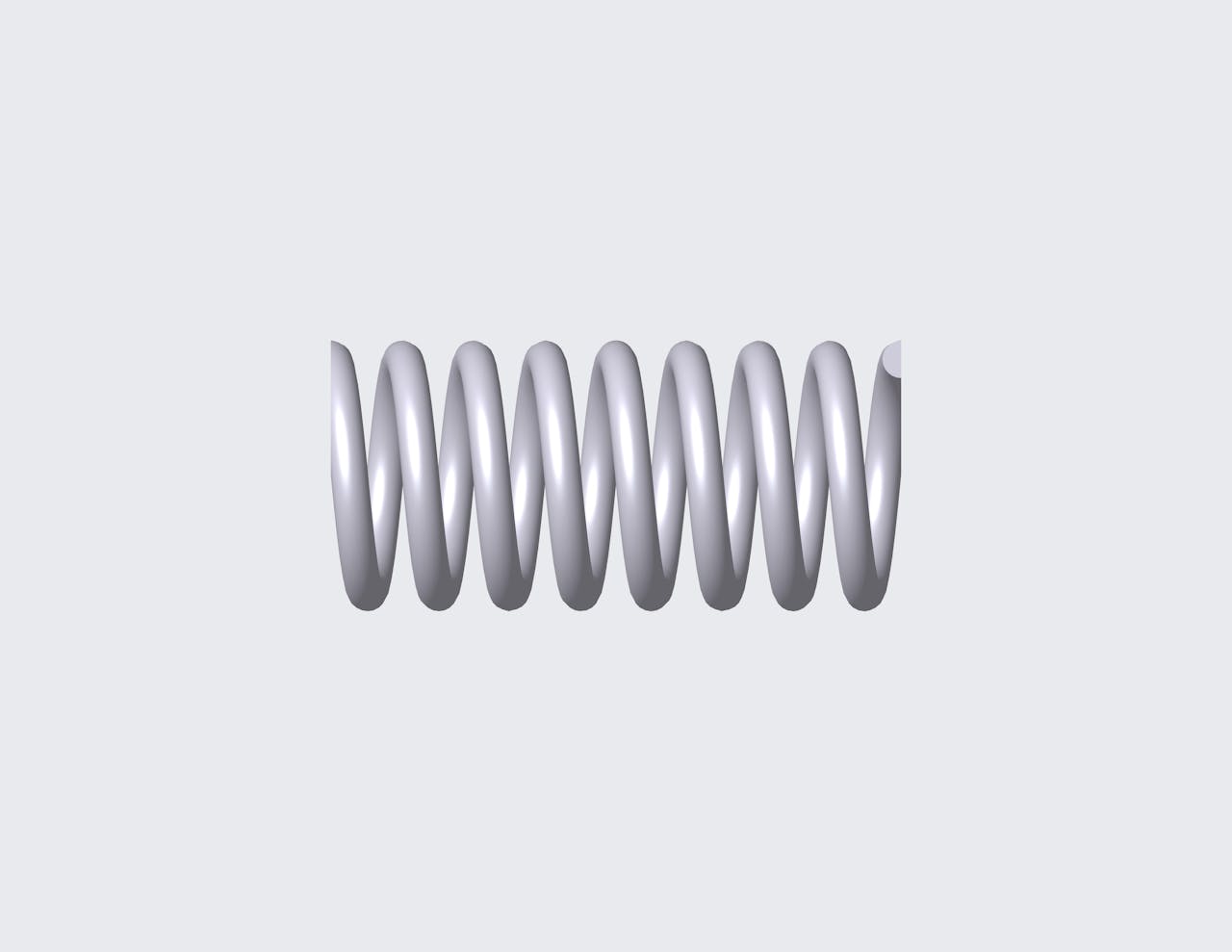

50876SCS - 2.402" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 7.5 coils and closed & ground ends. This spring features an O.D. of 1.142", and an I.D. of 0.827".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50876S
Ends Closed & Ground
Finish None
Free Length 2.402 in
Inside Diameter 0.827 in
Material 316 Stainless Steel
Outside Diameter 1.142 in
Rate 146.601 lbs/in
SKU 50876SCS
Solid Length 1.181 in
Suggested Max Deflection 0.539 in
Suggested Max Load 79.021 lbf
Total Coils 7.5
Wire Diameter 0.157 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50876S
Ends Closed & Ground
Finish None
Free Length 61.01 mm
Inside Diameter 21.01 mm
Material 316 Stainless Steel
Outside Diameter 29.01 mm
Rate 25.67 N/mm
SKU 50876SCS
Solid Length 30 mm
Suggested Max Deflection 13.69 mm
Suggested Max Load 351.49 N
Total Coils 7.5
Wire Diameter 3.99 mm
The compression spring 50876SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 50876S compression spring design exhibits exceptional tensile strength and resilience.

The 50876S design is manufactured with a free length of 2.402", with an outer diameter of 1.142", an inner diameter of 0.827", and a total of 7.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 146.601 lbs/in.

The 50876SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 50876S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
