Century Spring

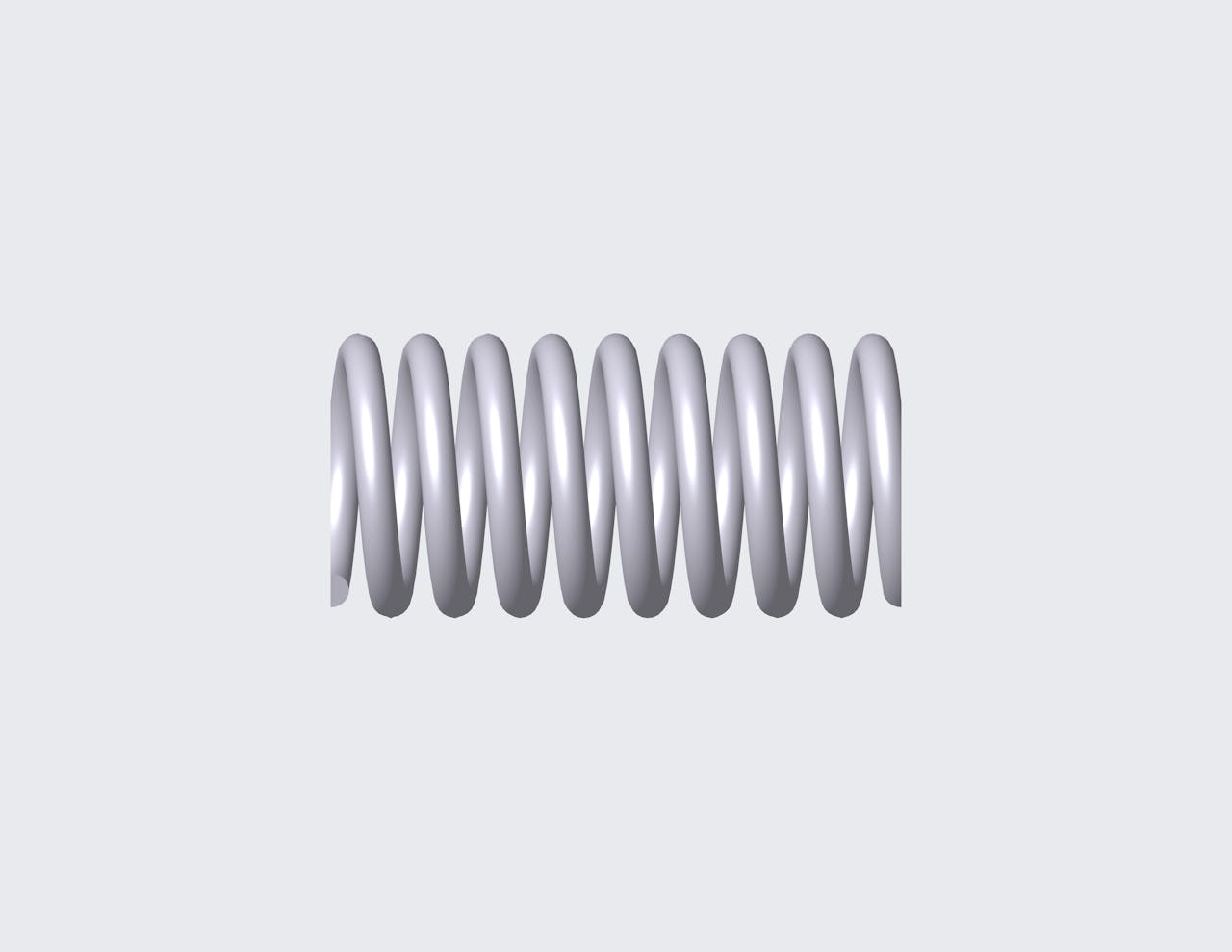

50828SCS - 2.165" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 8.3 coils and closed & ground ends. This spring features an O.D. of 1.081", and an I.D. of 0.801".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50828S
Ends Closed & Ground
Finish Passivated
Free Length 2.165 in
Inside Diameter 0.801 in
Material 316 Stainless Steel
Outside Diameter 1.081 in
Rate 91.906 lbs/in
SKU 50828SCS
Solid Length 1.163 in
Suggested Max Deflection 0.662 in
Suggested Max Load 60.817 lbf
Total Coils 8.3
Wire Diameter 0.14 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50828S
Ends Closed & Ground
Finish Passivated
Free Length 54.99 mm
Inside Diameter 20.35 mm
Material 316 Stainless Steel
Outside Diameter 27.46 mm
Rate 16.09 N/mm
SKU 50828SCS
Solid Length 29.54 mm
Suggested Max Deflection 16.81 mm
Suggested Max Load 270.51 N
Total Coils 8.3
Wire Diameter 3.56 mm
The compression spring 50828SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 50828S compression spring design exhibits exceptional tensile strength and resilience.

The 50828S design is manufactured with a free length of 2.165", with an outer diameter of 1.081", an inner diameter of 0.801", and a total of 8.3 coils, expertly designed to deliver consistent compression characteristics including a rate of 91.906 lbs/in.

The 50828SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 50828S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
