Century Spring

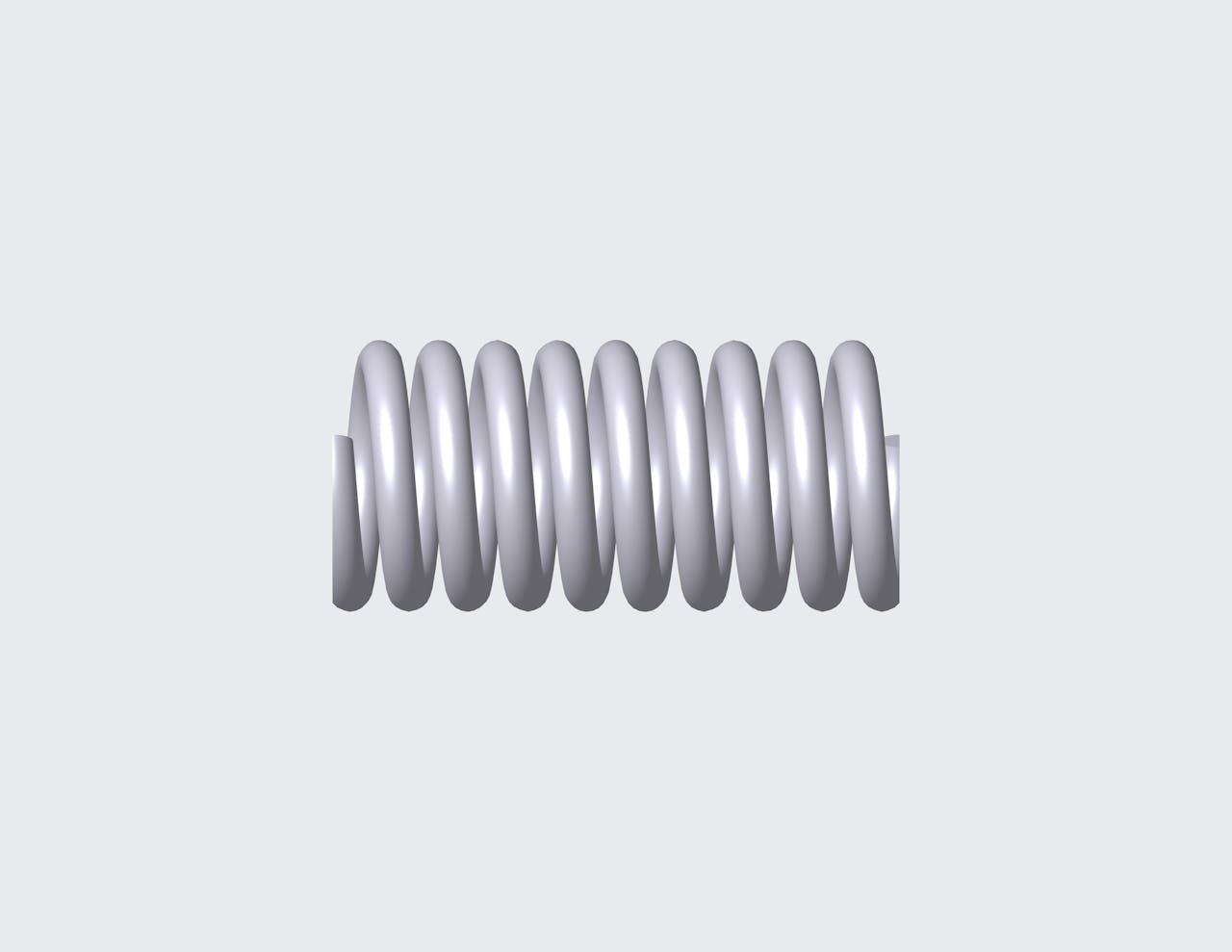

50791SCS - 2.165" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 8.9 coils and closed & ground ends. This spring features an O.D. of 1.039", and an I.D. of 0.724".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50791S
Ends Closed & Ground
Finish None
Free Length 2.165 in
Inside Diameter 0.724 in
Material 316 Stainless Steel
Outside Diameter 1.039 in
Rate 162.452 lbs/in
SKU 50791SCS
Solid Length 1.402 in
Suggested Max Deflection 0.529 in
Suggested Max Load 86.003 lbf
Total Coils 8.9
Wire Diameter 0.157 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50791S
Ends Closed & Ground
Finish None
Free Length 54.99 mm
Inside Diameter 18.39 mm
Material 316 Stainless Steel
Outside Diameter 26.39 mm
Rate 28.45 N/mm
SKU 50791SCS
Solid Length 35.61 mm
Suggested Max Deflection 13.44 mm
Suggested Max Load 382.54 N
Total Coils 8.9
Wire Diameter 3.99 mm
The 50791S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 316 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 50791SCS compression spring is designed with a free length of 1.772" total of 7.5 coils, and a rate of 203.804 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 50791S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
