Century Spring

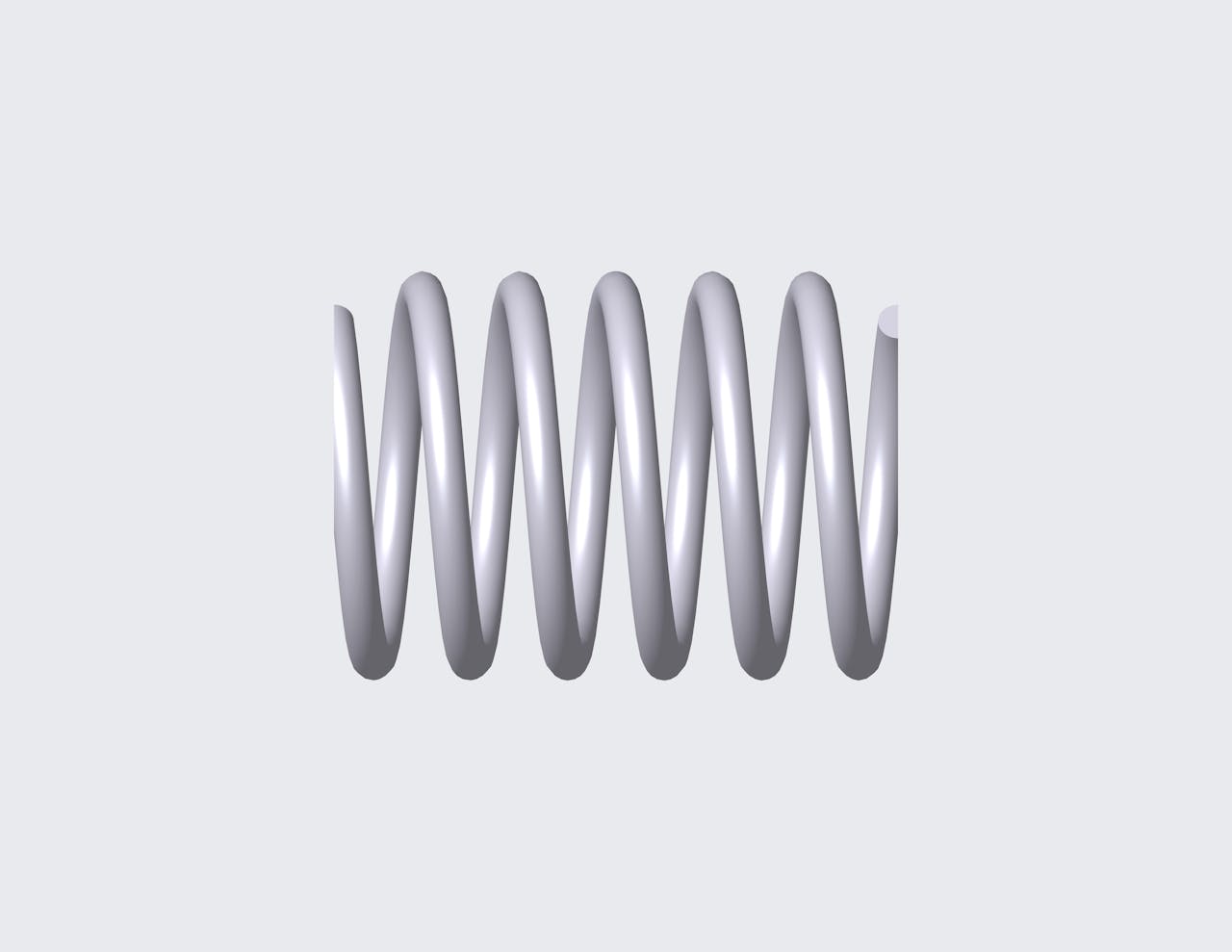

50763SCS - 1.378" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 5.4 coils and closed & ground ends. This spring features an O.D. of 1", and an I.D. of 0.803".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50763S
Ends Closed & Ground
Finish Passivated
Free Length 1.378 in
Inside Diameter 0.803 in
Material 316 Stainless Steel
Outside Diameter 1 in
Rate 47.082 lbs/in
SKU 50763SCS
Solid Length 0.531 in
Suggested Max Deflection 0.533 in
Suggested Max Load 25.102 lbf
Total Coils 5.4
Wire Diameter 0.098 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50763S
Ends Closed & Ground
Finish Passivated
Free Length 35 mm
Inside Diameter 20.4 mm
Material 316 Stainless Steel
Outside Diameter 25.4 mm
Rate 8.24 N/mm
SKU 50763SCS
Solid Length 13.49 mm
Suggested Max Deflection 13.54 mm
Suggested Max Load 111.65 N
Total Coils 5.4
Wire Diameter 2.49 mm
The compression spring 50763SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 50763S compression spring design exhibits exceptional tensile strength and resilience.

The 50763S design is manufactured with a free length of 1.378", with an outer diameter of 1", an inner diameter of 0.803", and a total of 5.4 coils, expertly designed to deliver consistent compression characteristics including a rate of 47.082 lbs/in.

The 50763SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 50763S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
