Century Spring

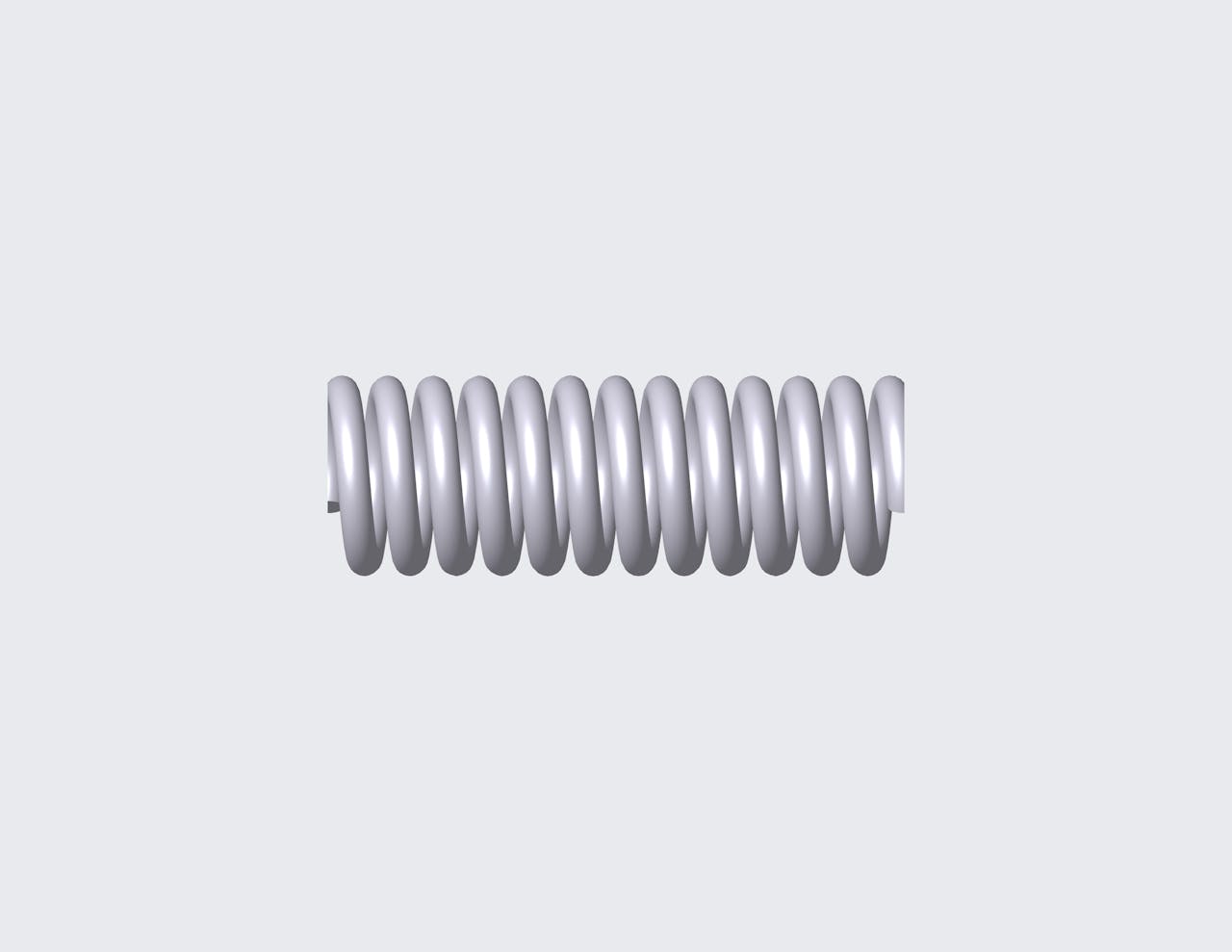

50749SCS - 2.756" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 11.9 coils and closed & ground ends. This spring features an O.D. of 0.961", and an I.D. of 0.646".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50749S
Ends Closed & Ground
Finish None
Free Length 2.756 in
Inside Diameter 0.646 in
Material 316 Stainless Steel
Outside Diameter 0.961 in
Rate 149.897 lbs/in
SKU 50749SCS
Solid Length 1.874 in
Suggested Max Deflection 0.615 in
Suggested Max Load 92.214 lbf
Total Coils 11.9
Wire Diameter 0.157 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50749S
Ends Closed & Ground
Finish None
Free Length 70 mm
Inside Diameter 16.41 mm
Material 316 Stainless Steel
Outside Diameter 24.41 mm
Rate 26.25 N/mm
SKU 50749SCS
Solid Length 47.6 mm
Suggested Max Deflection 15.62 mm
Suggested Max Load 410.17 N
Total Coils 11.9
Wire Diameter 3.99 mm
The 50749S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 316 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 50749SCS compression spring is designed with a free length of 2.362" total of 10.4 coils, and a rate of 176.664 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 50749S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
