Century Spring

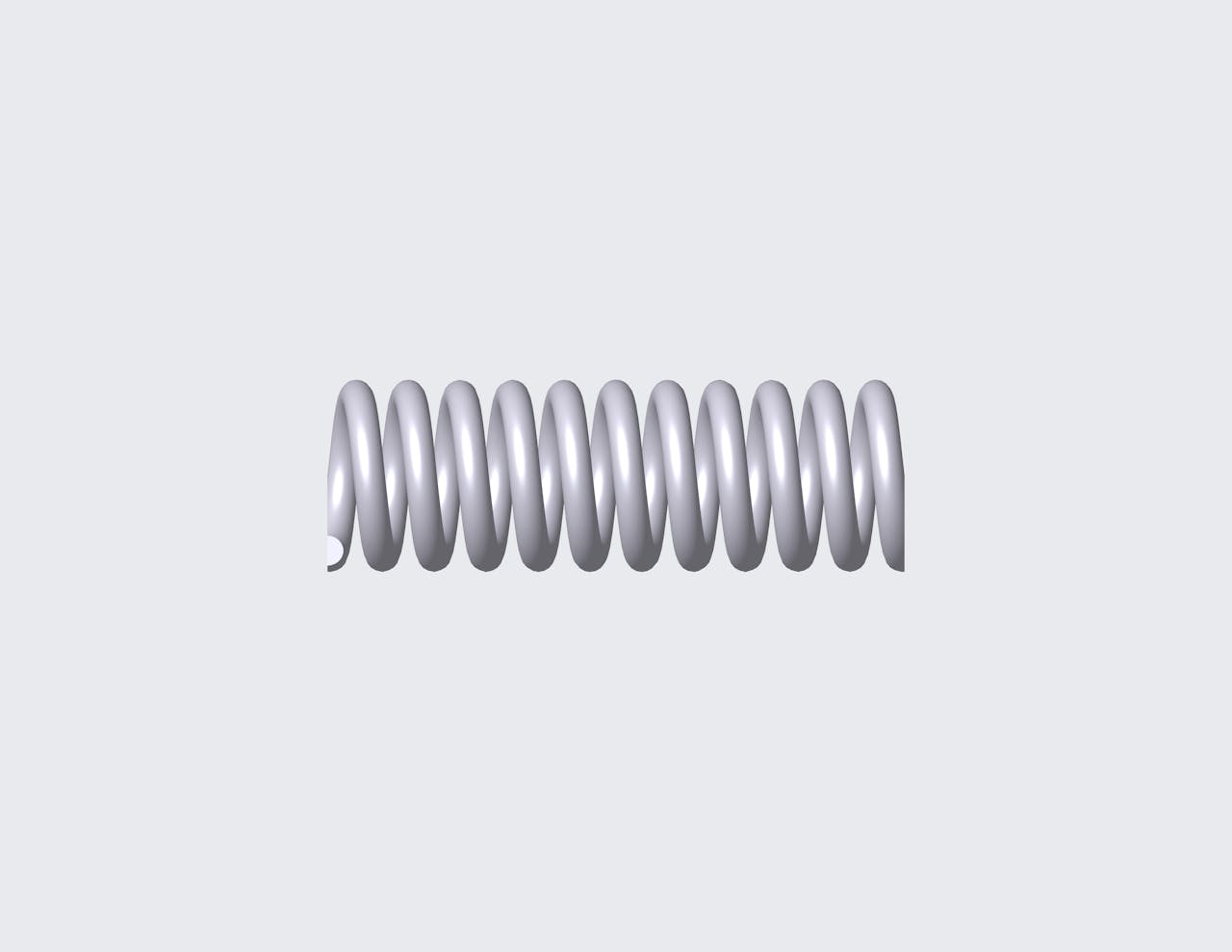

50740SCS - 2.835" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 10.5 coils and closed & ground ends. This spring features an O.D. of 0.945", and an I.D. of 0.63".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50740S
Ends Closed & Ground
Finish None
Free Length 2.835 in
Inside Diameter 0.63 in
Material 316 Stainless Steel
Outside Diameter 0.945 in
Rate 185.272 lbs/in
SKU 50740SCS
Solid Length 1.654 in
Suggested Max Deflection 0.505 in
Suggested Max Load 93.557 lbf
Total Coils 10.5
Wire Diameter 0.157 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50740S
Ends Closed & Ground
Finish None
Free Length 72.01 mm
Inside Diameter 16 mm
Material 316 Stainless Steel
Outside Diameter 24 mm
Rate 32.44 N/mm
SKU 50740SCS
Solid Length 42.01 mm
Suggested Max Deflection 12.83 mm
Suggested Max Load 416.14 N
Total Coils 10.5
Wire Diameter 3.99 mm
The 50740S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 316 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 50740SCS compression spring is designed with a free length of 2.323" total of 10 coils, and a rate of 196.852 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 50740S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
