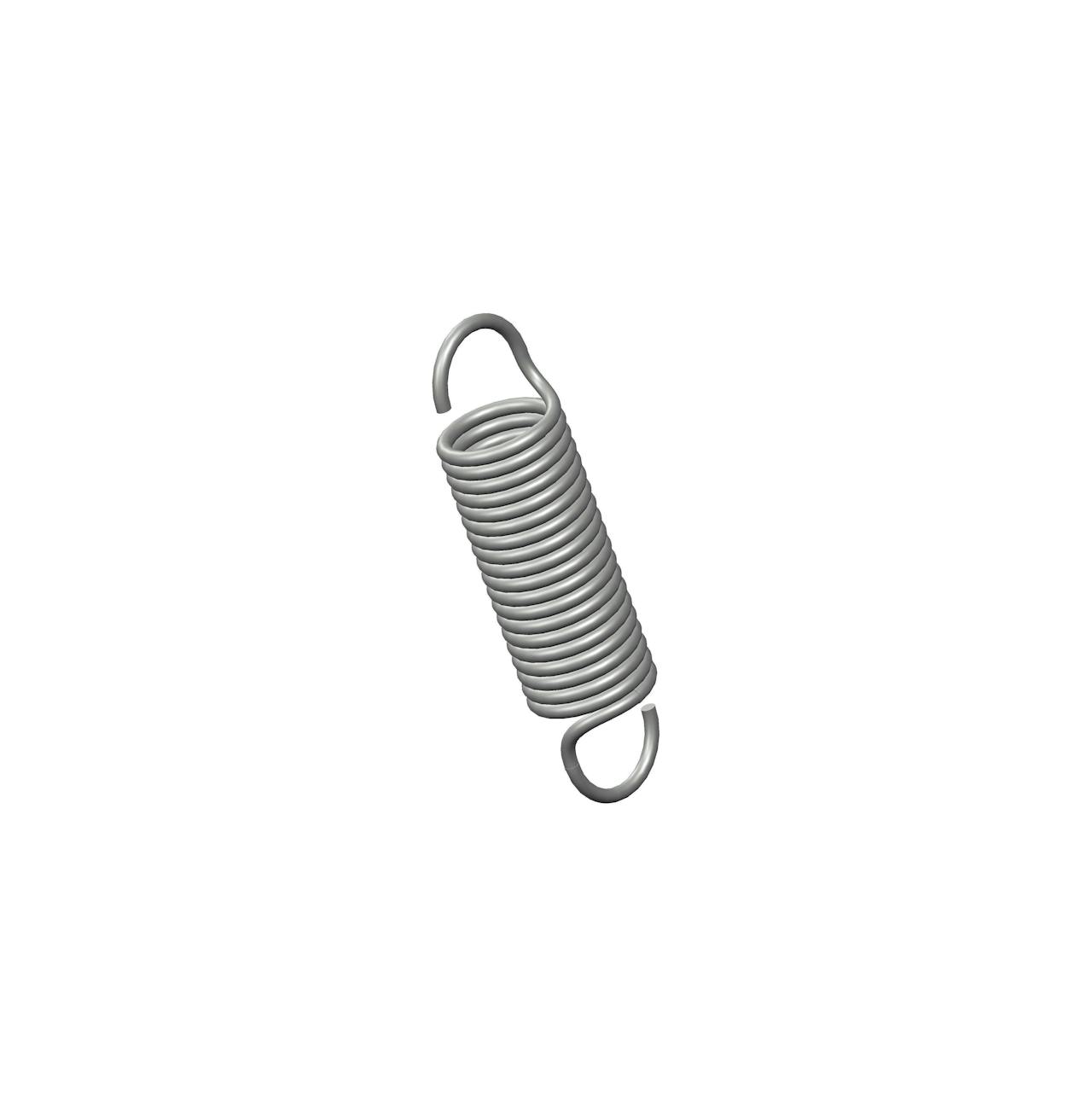

5073CS - 1.05 Inch Music Wire Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.25 Inch and an initial tension of 0.7 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5073
Ends Extended Hook
Finish Zinc
Initial Tension 0.7 lb
Length 1.05 in
Material Music Wire
Outside Diameter 0.25 in
Part Type Standard
Rate 8.4 lbs/in
SKU 5073CS
Sugg Max Deflection 0.57 in
Sugg Max Load 5.4 lbf
Wire Diameter 0.03 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5073
Ends Extended Hook
Finish Zinc
Initial Tension 0.32 kg
Length 26.67 mm
Material Music Wire
Outside Diameter 6.35 mm
Part Type Standard
Rate 1.47 N/mm
SKU 5073CS
Sugg Max Deflection 14.48 mm
Sugg Max Load 24.02 N
Wire Diameter 0.76 mm
