Century Spring

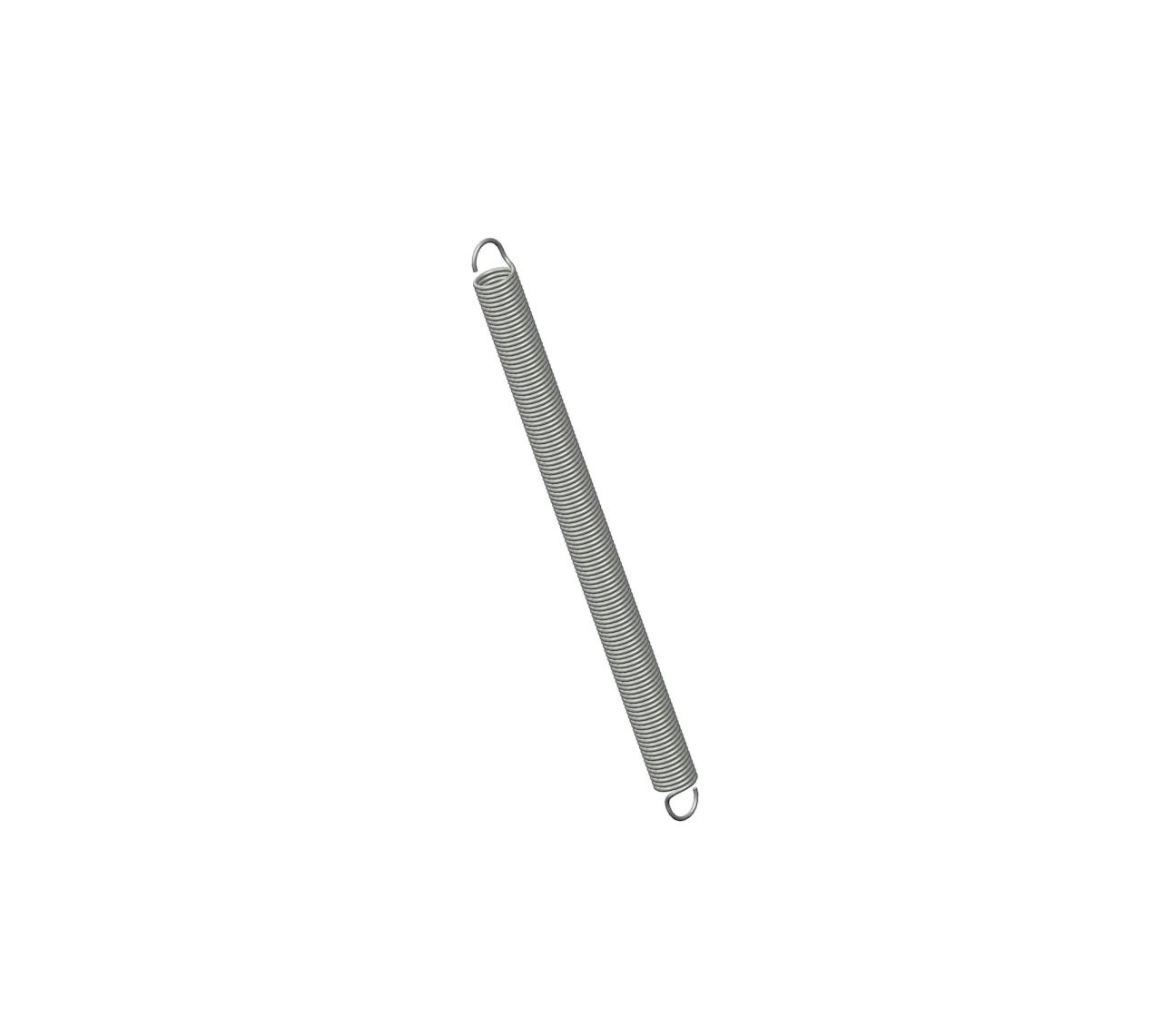

5061CS - 8.25 Inch High Carbon Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in High Carbon Steel. This spring features an O.D. of 0.562 Inch and an initial tension of 2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5061
Ends Machine Hook
Finish Zinc
Initial Tension 2 lb
Length 8.25 in
Material High Carbon Steel
Outside Diameter 0.562 in
Part Type Standard
Rate 1.4 lbs/in
SKU 5061CS
Sugg Max Deflection 8.4 in
Sugg Max Load 14 lbf
Wind Direction Left
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5061
Ends Machine Hook
Finish Zinc
Initial Tension 0.91 kg
Length 209.55 mm
Material High Carbon Steel
Outside Diameter 14.27 mm
Part Type Standard
Rate 0.25 N/mm
SKU 5061CS
Sugg Max Deflection 213.36 mm
Sugg Max Load 62.27 N
Wind Direction Left
Wire Diameter 1.59 mm
