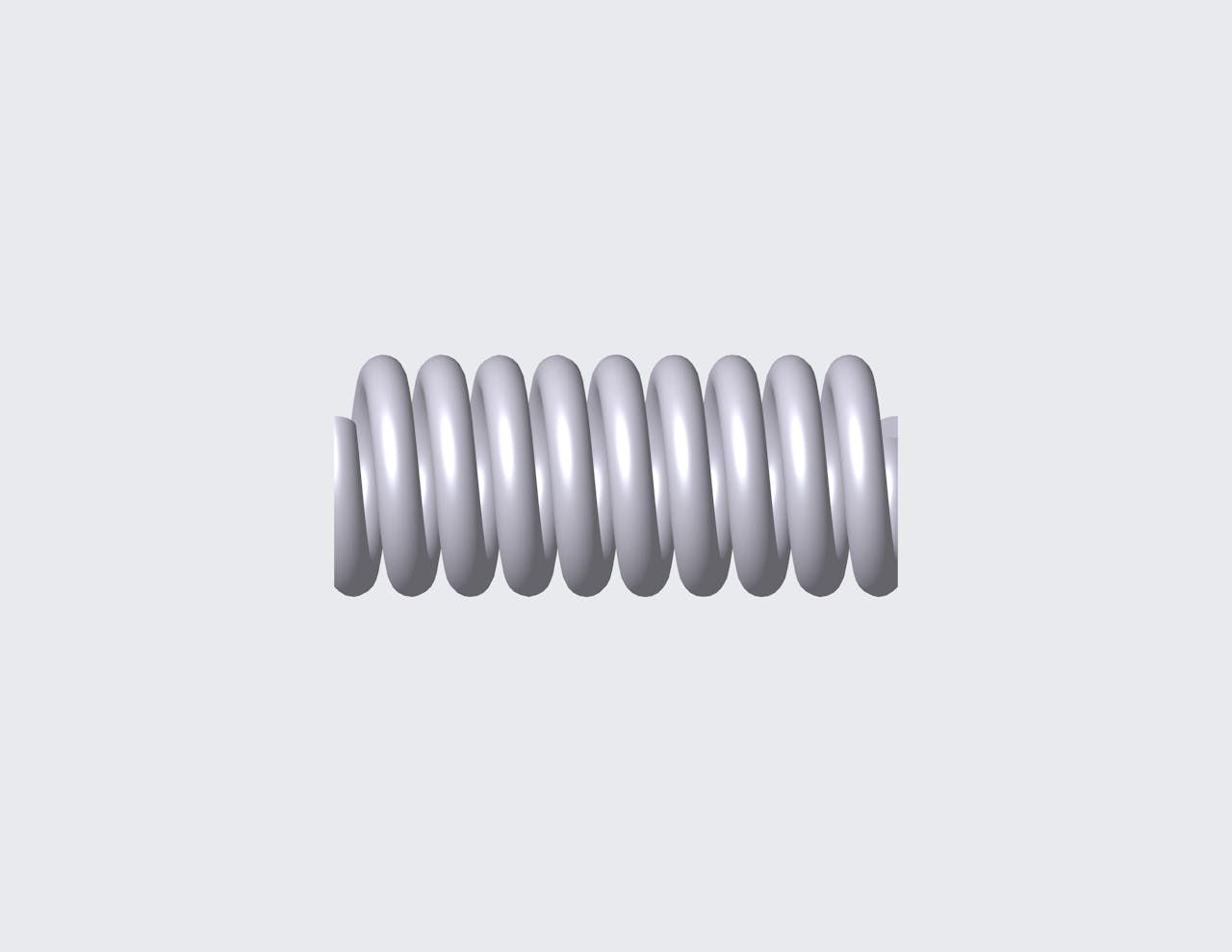

50594SCS - 1.772" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 316 stainless steel with 8.9 coils and closed & ground ends. This spring features an O.D. of 0.762", and an I.D. of 0.482".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 50594S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 1.772 in |
| Inside Diameter | 0.482 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 0.762 in |
| Rate | 290.441 lbs/in |
| SKU | 50594SCS |
| Solid Length | 1.247 in |
| Suggested Max Deflection | 0.285 in |
| Suggested Max Load | 82.92 lbf |
| Total Coils | 8.9 |
| Wire Diameter | 0.14 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 50594S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 45.01 mm |
| Inside Diameter | 12.24 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 19.35 mm |
| Rate | 50.86 N/mm |
| SKU | 50594SCS |
| Solid Length | 31.67 mm |
| Suggested Max Deflection | 7.24 mm |
| Suggested Max Load | 368.83 N |
| Total Coils | 8.9 |
| Wire Diameter | 3.56 mm |
The compression spring 50594SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 50594S compression spring design exhibits exceptional tensile strength and resilience.
The 50594S design is manufactured with a free length of 1.772", with an outer diameter of 0.762", an inner diameter of 0.482", and a total of 8.9 coils, expertly designed to deliver consistent compression characteristics including a rate of 290.441 lbs/in.
The 50594SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 50594S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 50594S design is manufactured with a free length of 1.772", with an outer diameter of 0.762", an inner diameter of 0.482", and a total of 8.9 coils, expertly designed to deliver consistent compression characteristics including a rate of 290.441 lbs/in.
The 50594SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 50594S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
