Century Spring

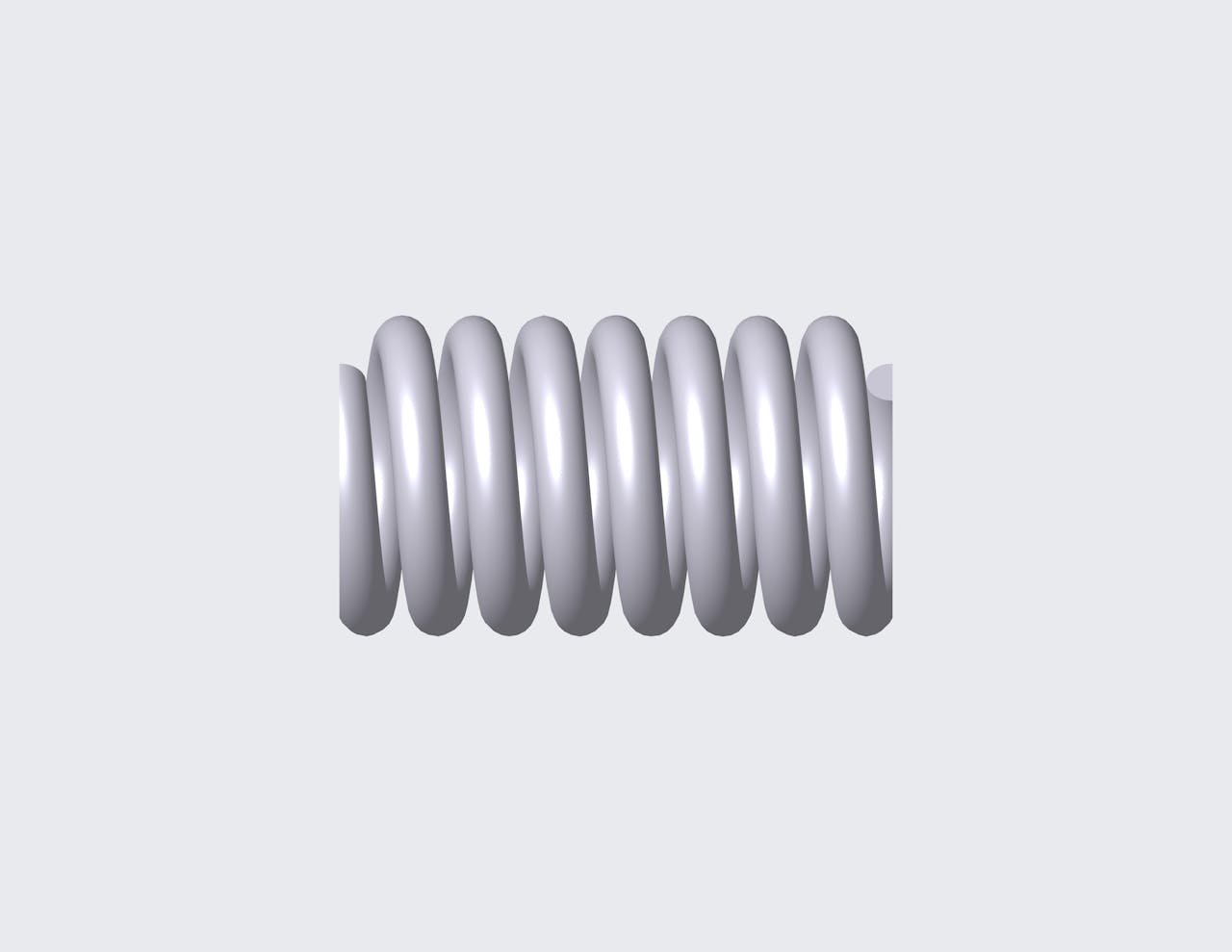

50585SCS - 1.299" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 7 coils and closed & ground ends. This spring features an O.D. of 0.755", and an I.D. of 0.505".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50585S
Ends Closed & Ground
Finish Passivated
Free Length 1.299 in
Inside Diameter 0.505 in
Material 316 Stainless Steel
Outside Diameter 0.755 in
Rate 245.73 lbs/in
SKU 50585SCS
Solid Length 0.876 in
Suggested Max Deflection 0.246 in
Suggested Max Load 60.522 lbf
Total Coils 7
Wire Diameter 0.125 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50585S
Ends Closed & Ground
Finish Passivated
Free Length 32.99 mm
Inside Diameter 12.83 mm
Material 316 Stainless Steel
Outside Diameter 19.18 mm
Rate 43.03 N/mm
SKU 50585SCS
Solid Length 22.25 mm
Suggested Max Deflection 6.25 mm
Suggested Max Load 269.2 N
Total Coils 7
Wire Diameter 3.18 mm
The compression spring 50585SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 50585S compression spring design exhibits exceptional tensile strength and resilience.

The 50585S design is manufactured with a free length of 1.299", with an outer diameter of 0.755", an inner diameter of 0.505", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 245.73 lbs/in.

The 50585SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 50585S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
