Century Spring

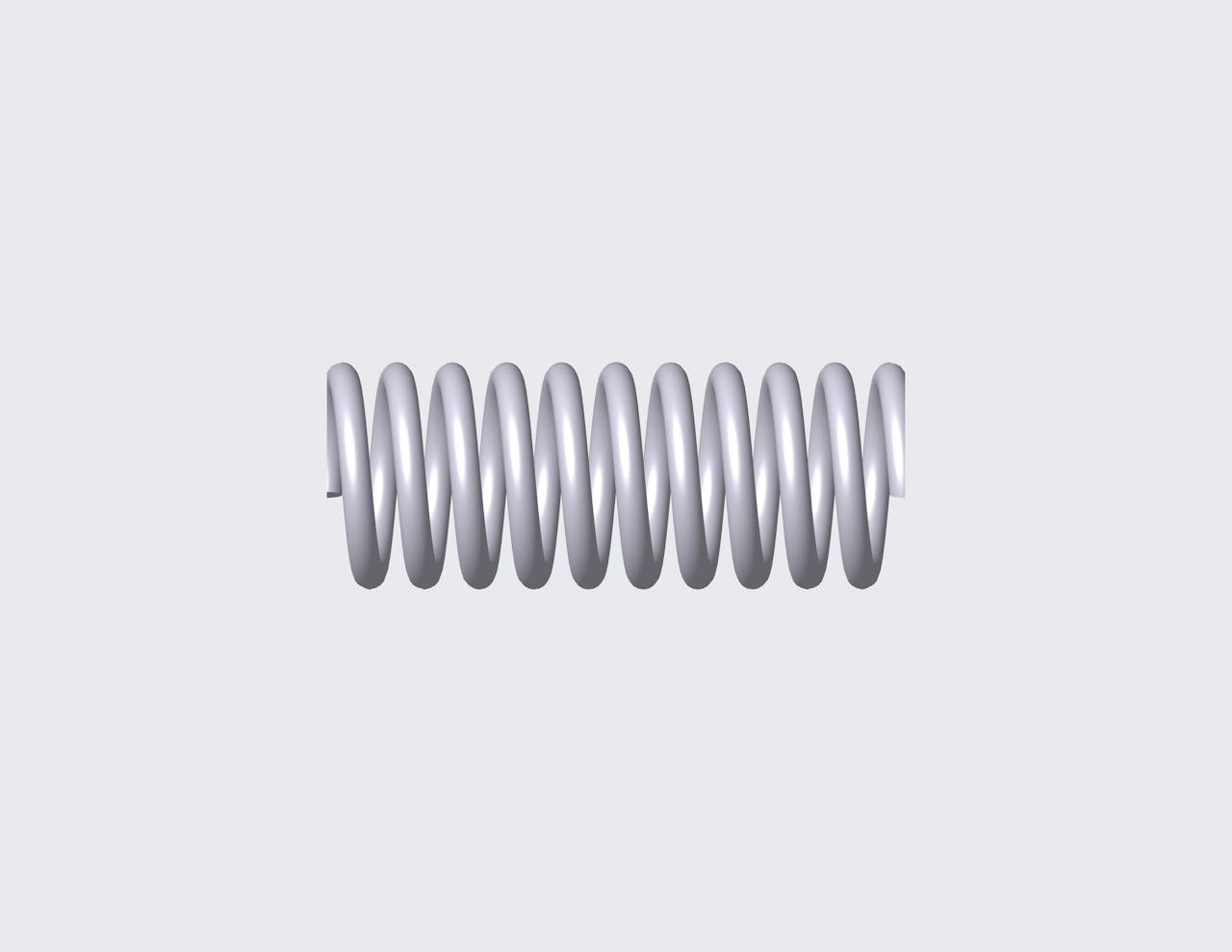

50577SCS - 1.85" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 10 coils and closed & ground ends. This spring features an O.D. of 0.728", and an I.D. of 0.531".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50577S
Ends Closed & Ground
Finish Passivated
Free Length 1.85 in
Inside Diameter 0.531 in
Material 316 Stainless Steel
Outside Diameter 0.728 in
Rate 58.666 lbs/in
SKU 50577SCS
Solid Length 0.984 in
Suggested Max Deflection 0.575 in
Suggested Max Load 33.718 lbf
Total Coils 10
Wire Diameter 0.098 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50577S
Ends Closed & Ground
Finish Passivated
Free Length 46.99 mm
Inside Diameter 13.49 mm
Material 316 Stainless Steel
Outside Diameter 18.49 mm
Rate 10.27 N/mm
SKU 50577SCS
Solid Length 24.99 mm
Suggested Max Deflection 14.61 mm
Suggested Max Load 149.98 N
Total Coils 10
Wire Diameter 2.49 mm
The 50577S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 316 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 50577SCS compression spring is designed with a free length of 1.614" total of 7.5 coils, and a rate of 85.333 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 50577S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
