Century Spring

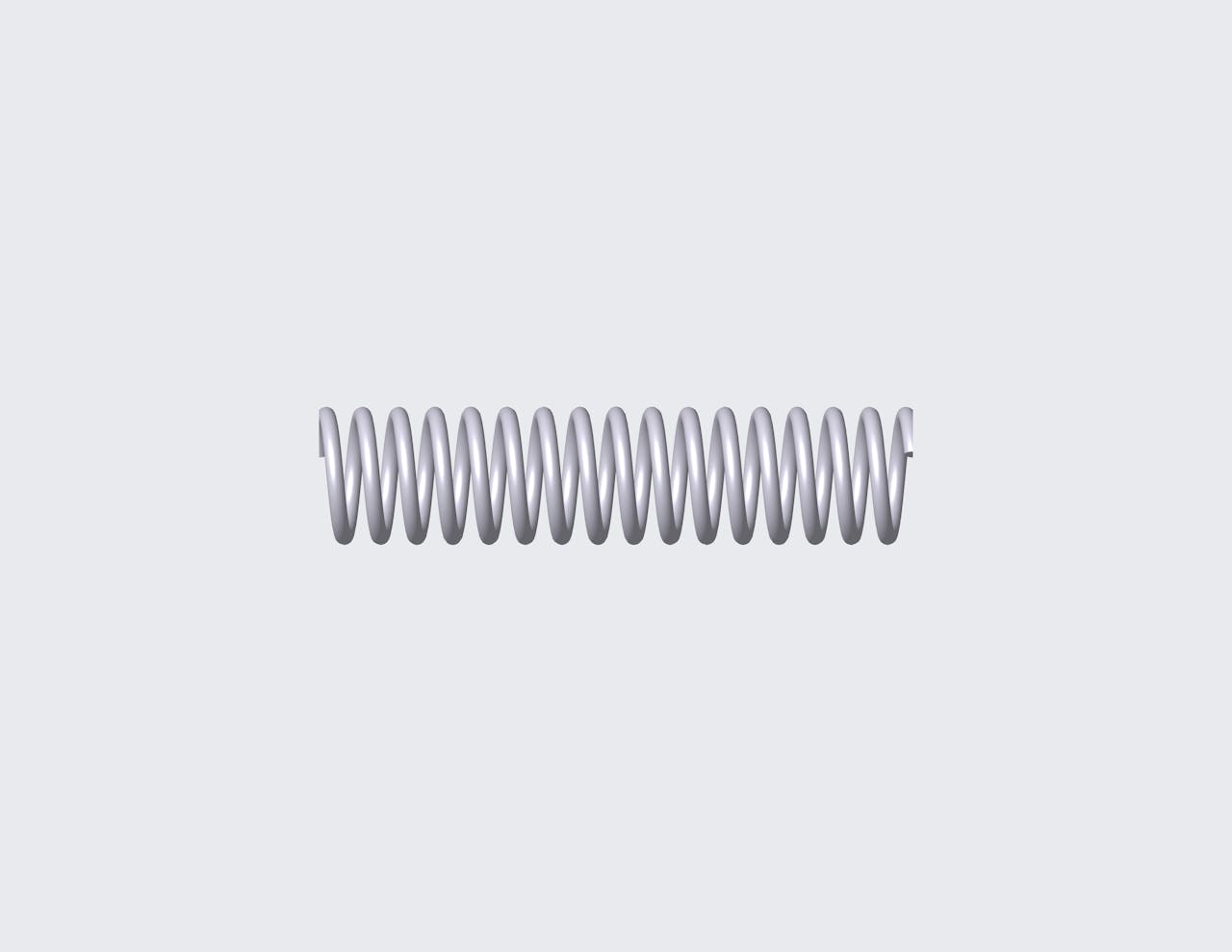

50508SCS - 2.756" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 15.91 coils and closed & ground ends. This spring features an O.D. of 0.643", and an I.D. of 0.483".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50508S
Ends Closed & Ground
Finish Passivated
Free Length 2.756 in
Inside Diameter 0.483 in
Material 316 Stainless Steel
Outside Diameter 0.643 in
Rate 20.546 lbs/in
SKU 50508SCS
Solid Length 1.272 in
Suggested Max Deflection 1.053 in
Suggested Max Load 21.636 lbf
Total Coils 15.91
Wire Diameter 0.08 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50508S
Ends Closed & Ground
Finish Passivated
Free Length 70 mm
Inside Diameter 12.27 mm
Material 316 Stainless Steel
Outside Diameter 16.33 mm
Rate 3.6 N/mm
SKU 50508SCS
Solid Length 32.31 mm
Suggested Max Deflection 26.75 mm
Suggested Max Load 96.24 N
Total Coils 15.91
Wire Diameter 2.03 mm
The 50508S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 316 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 50508SCS compression spring is designed with a free length of 2.362" total of 13.65 coils, and a rate of 24.532 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 50508S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
