Century Spring

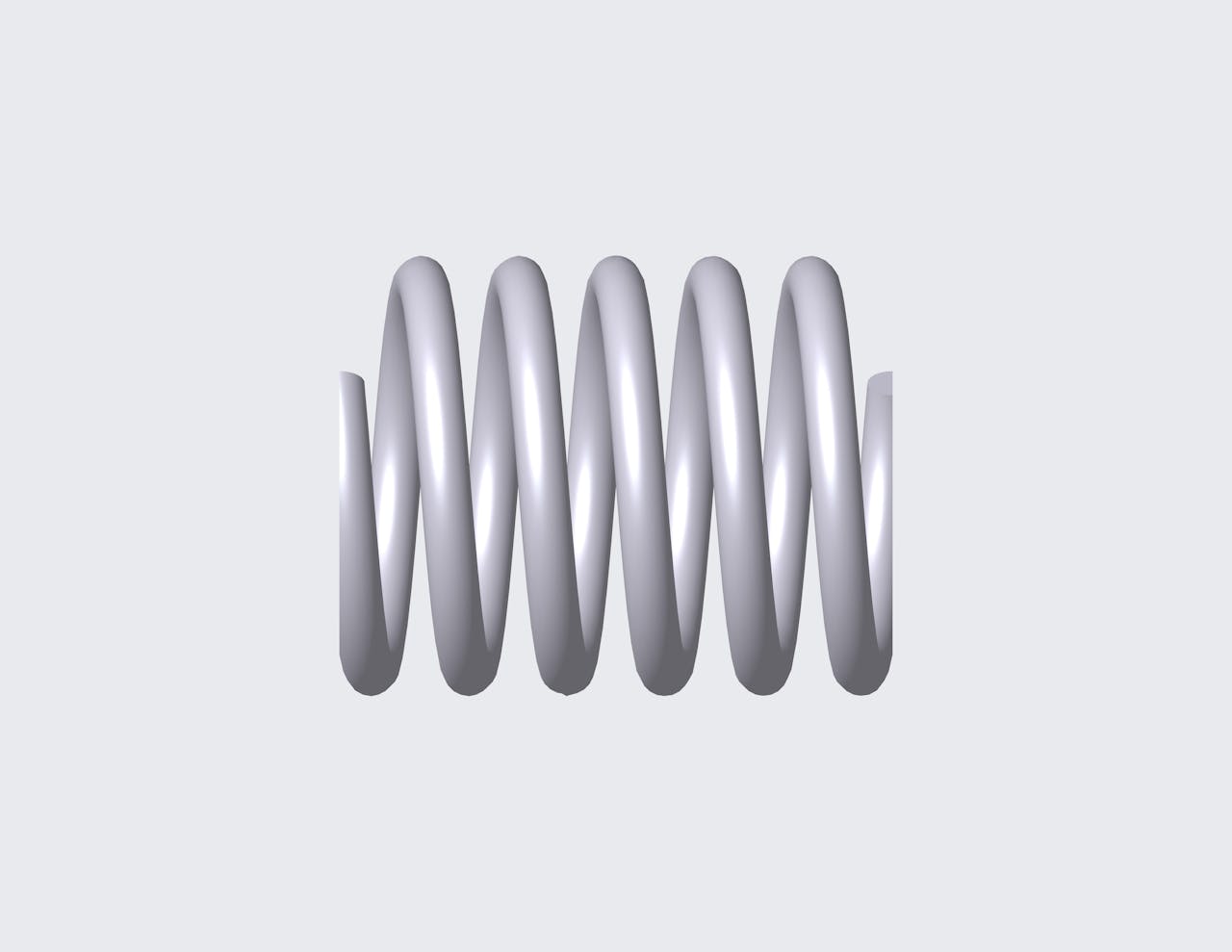

50496SCS - 0.787" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 5.14 coils and closed & ground ends. This spring features an O.D. of 0.627", and an I.D. of 0.483".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50496S
Ends Closed & Ground
Finish Passivated
Free Length 0.787 in
Inside Diameter 0.483 in
Material 316 Stainless Steel
Outside Diameter 0.627 in
Rate 62.704 lbs/in
SKU 50496SCS
Solid Length 0.37 in
Suggested Max Deflection 0.261 in
Suggested Max Load 16.341 lbf
Total Coils 5.14
Wire Diameter 0.072 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50496S
Ends Closed & Ground
Finish Passivated
Free Length 19.99 mm
Inside Diameter 12.27 mm
Material 316 Stainless Steel
Outside Diameter 15.93 mm
Rate 10.98 N/mm
SKU 50496SCS
Solid Length 9.4 mm
Suggested Max Deflection 6.63 mm
Suggested Max Load 72.68 N
Total Coils 5.14
Wire Diameter 1.83 mm
The compression spring 50496SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 50496S compression spring design exhibits exceptional tensile strength and resilience.

The 50496S design is manufactured with a free length of 0.787", with an outer diameter of 0.627", an inner diameter of 0.483", and a total of 5.14 coils, expertly designed to deliver consistent compression characteristics including a rate of 62.704 lbs/in.

The 50496SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 50496S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
