Century Spring

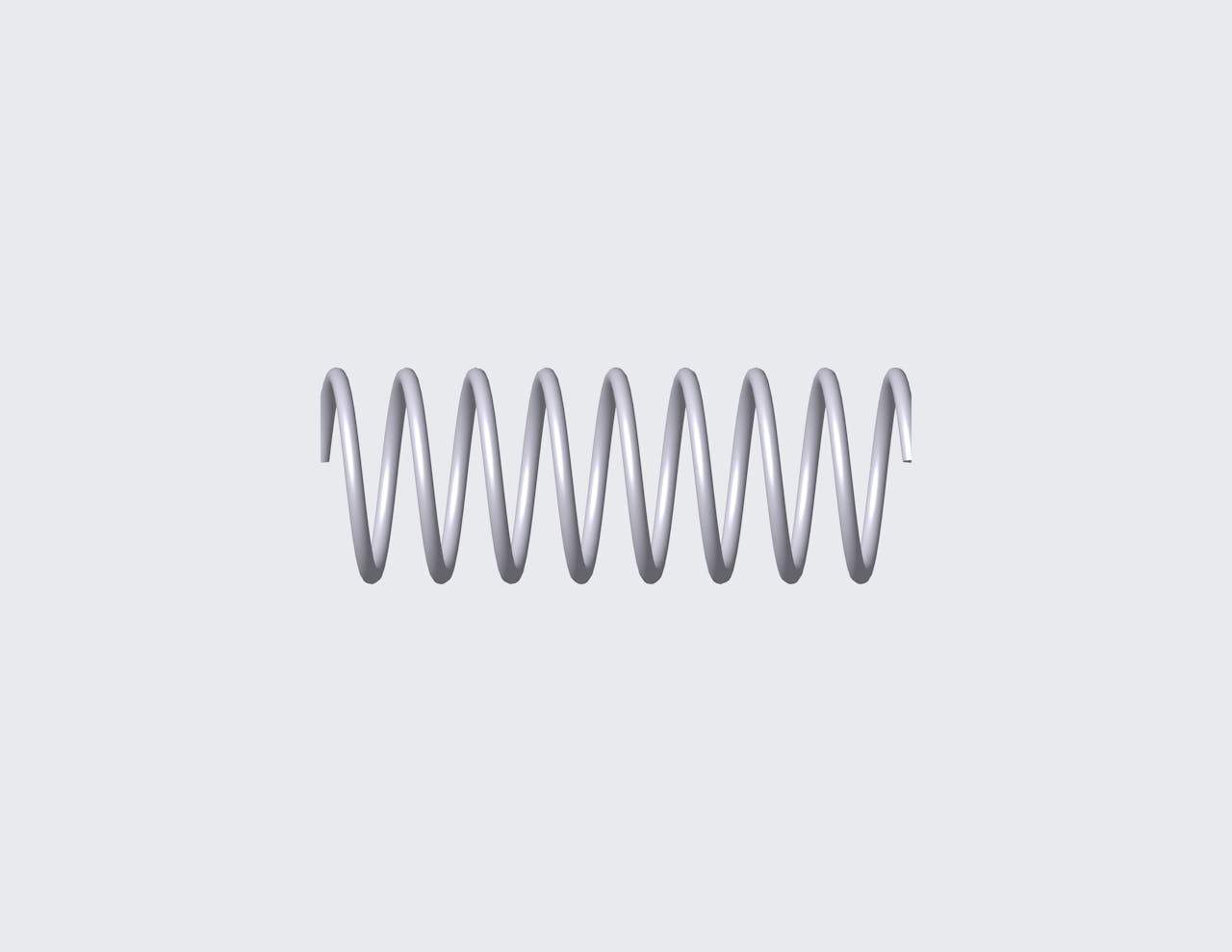

50468SCS - 1.575" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 8.2 coils and closed & ground ends. This spring features an O.D. of 0.579", and an I.D. of 0.484".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50468S
Ends Closed & Ground
Finish Passivated
Free Length 1.575 in
Inside Diameter 0.484 in
Material 316 Stainless Steel
Outside Diameter 0.579 in
Rate 6.69 lbs/in
SKU 50468SCS
Solid Length 0.387 in
Suggested Max Deflection 0.813 in
Suggested Max Load 5.435 lbf
Total Coils 8.2
Wire Diameter 0.047 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50468S
Ends Closed & Ground
Finish Passivated
Free Length 40.01 mm
Inside Diameter 12.29 mm
Material 316 Stainless Steel
Outside Diameter 14.71 mm
Rate 1.17 N/mm
SKU 50468SCS
Solid Length 9.83 mm
Suggested Max Deflection 20.65 mm
Suggested Max Load 24.17 N
Total Coils 8.2
Wire Diameter 1.19 mm
The 50468SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.047" diameter 316 stainless steel, the 50468S spring design exhibits reliable strength across its 8.2 active coils, withstanding repeated compression cycles with a maximum load of 5.435 lbf without succumbing to fatigue.

We manufacture the 50468S design to provide a compression spring that is 1.575" long at rest and provides a consistent rate of 6.69 lbs/in along its recommended maximum of 0.813" deflection. For best results, your application should fully accommodate the inner (0.484") and outer (0.579") diameters of this spring and be designed for its closed & ground end configuration.
