50465SCS - 1.457" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

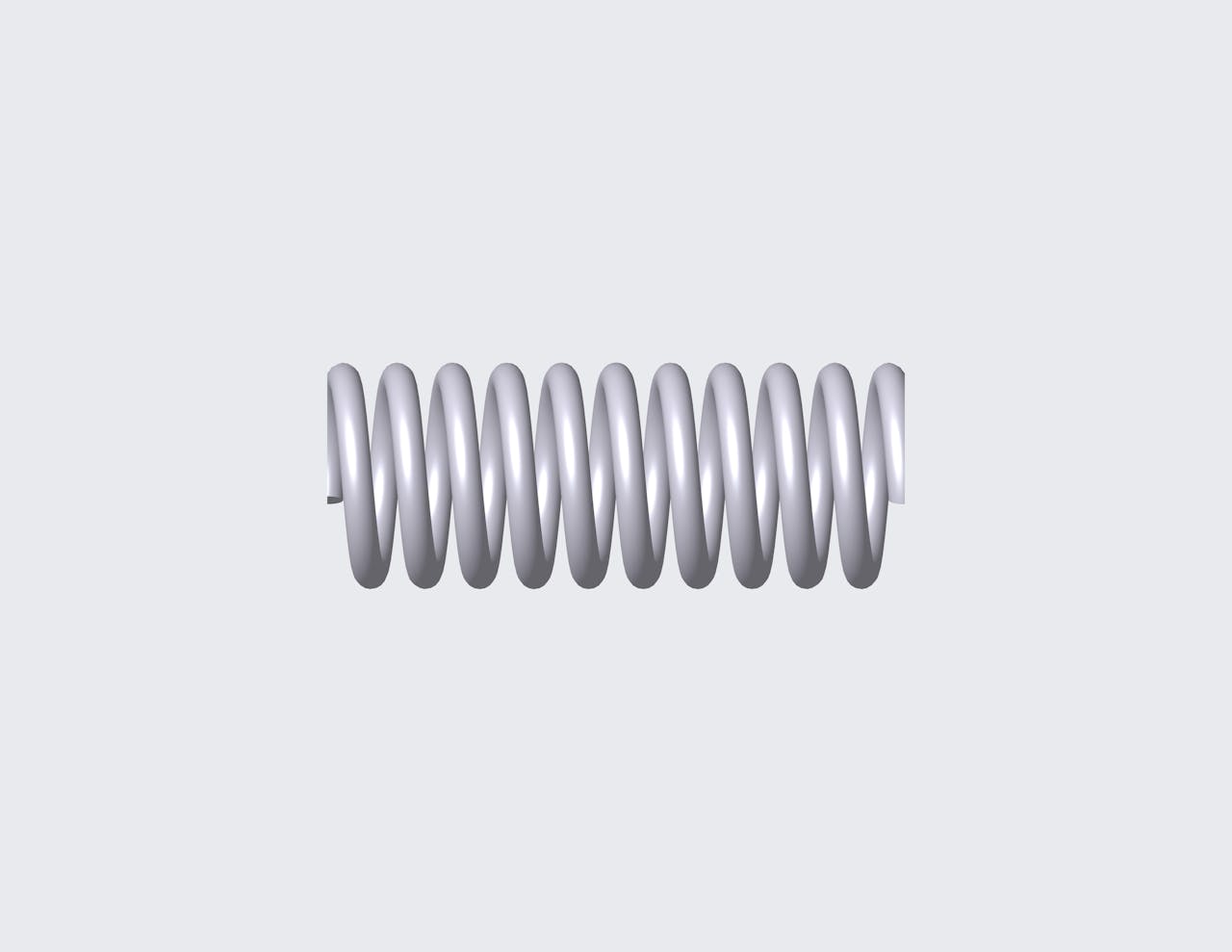

Compression spring manufactured from 316 stainless steel with 10 coils and closed & ground ends. This spring features an O.D. of 0.572", and an I.D. of 0.412".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 50465S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 1.457 in |
| Inside Diameter | 0.412 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 0.572 in |
| Rate | 53.486 lbs/in |
| SKU | 50465SCS |
| Solid Length | 0.799 in |
| Suggested Max Deflection | 0.45 in |
| Suggested Max Load | 24.078 lbf |
| Total Coils | 10 |
| Wire Diameter | 0.08 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 50465S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 37.01 mm |
| Inside Diameter | 10.46 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 14.53 mm |
| Rate | 9.37 N/mm |
| SKU | 50465SCS |
| Solid Length | 20.29 mm |
| Suggested Max Deflection | 11.43 mm |
| Suggested Max Load | 107.1 N |
| Total Coils | 10 |
| Wire Diameter | 2.03 mm |
The 50465SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.08" diameter 316 stainless steel, the 50465S spring design exhibits reliable strength across its 10 active coils, withstanding repeated compression cycles with a maximum load of 24.078 lbf without succumbing to fatigue.
We manufacture the 50465S design to provide a compression spring that is 1.457" long at rest and provides a consistent rate of 53.486 lbs/in along its recommended maximum of 0.45" deflection. For best results, your application should fully accommodate the inner (0.412") and outer (0.572") diameters of this spring and be designed for its closed & ground end configuration.
