Century Spring

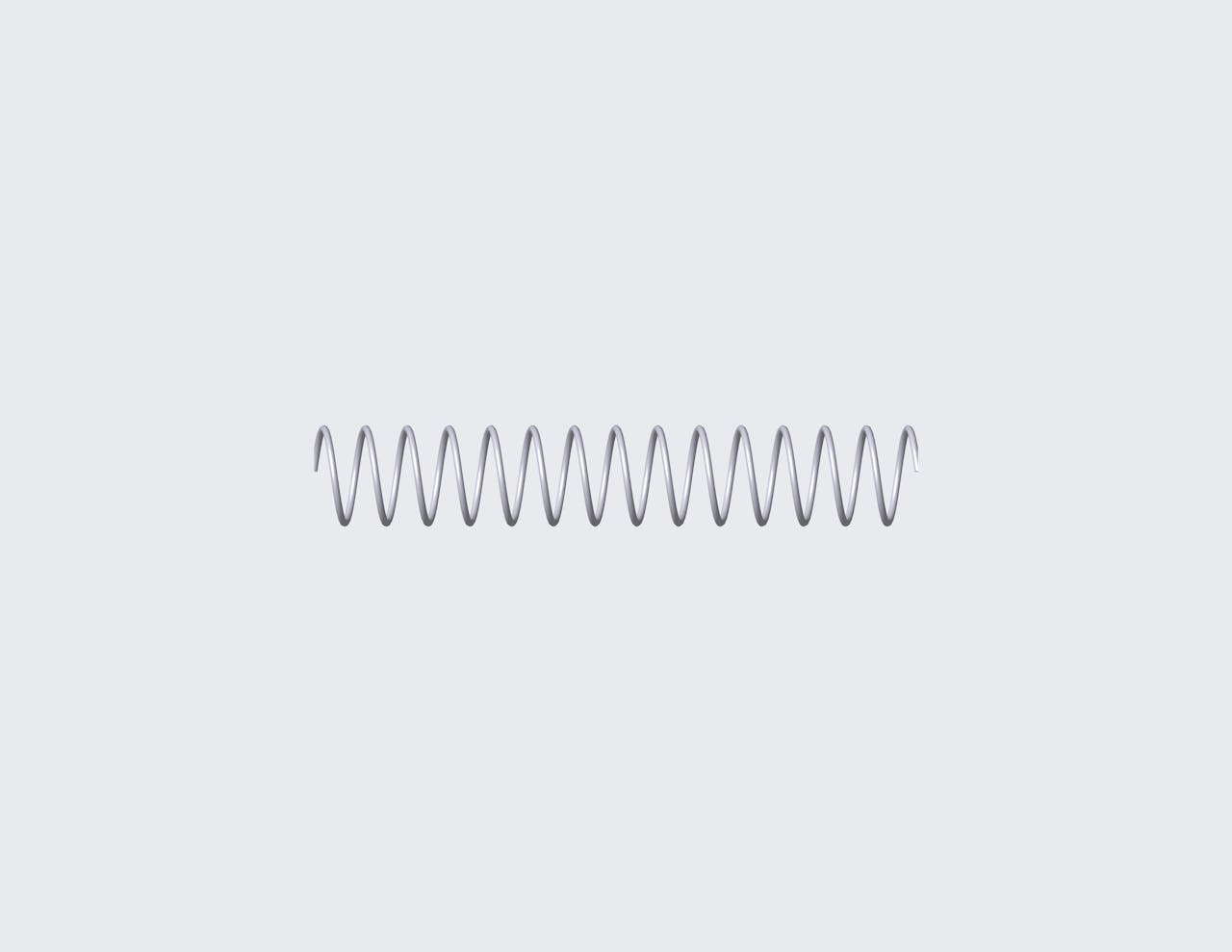

50456SCS - 3.346" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 14.3 coils and closed & ground ends. This spring features an O.D. of 0.563", and an I.D. of 0.484".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50456S
Ends Closed & Ground
Finish Passivated
Free Length 3.346 in
Inside Diameter 0.484 in
Material 316 Stainless Steel
Outside Diameter 0.563 in
Rate 1.701 lbs/in
SKU 50456SCS
Solid Length 0.563 in
Suggested Max Deflection 1.999 in
Suggested Max Load 3.399 lbf
Total Coils 14.3
Wire Diameter 0.039 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50456S
Ends Closed & Ground
Finish Passivated
Free Length 84.99 mm
Inside Diameter 12.29 mm
Material 316 Stainless Steel
Outside Diameter 14.3 mm
Rate 0.3 N/mm
SKU 50456SCS
Solid Length 14.3 mm
Suggested Max Deflection 50.77 mm
Suggested Max Load 15.12 N
Total Coils 14.3
Wire Diameter 0.99 mm
The 50456SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.039" diameter 316 stainless steel, the 50456S spring design exhibits reliable strength across its 14.3 active coils, withstanding repeated compression cycles with a maximum load of 3.399 lbf without succumbing to fatigue.

We manufacture the 50456S design to provide a compression spring that is 3.346" long at rest and provides a consistent rate of 1.701 lbs/in along its recommended maximum of 1.999" deflection. For best results, your application should fully accommodate the inner (0.484") and outer (0.563") diameters of this spring and be designed for its closed & ground end configuration.
