Century Spring

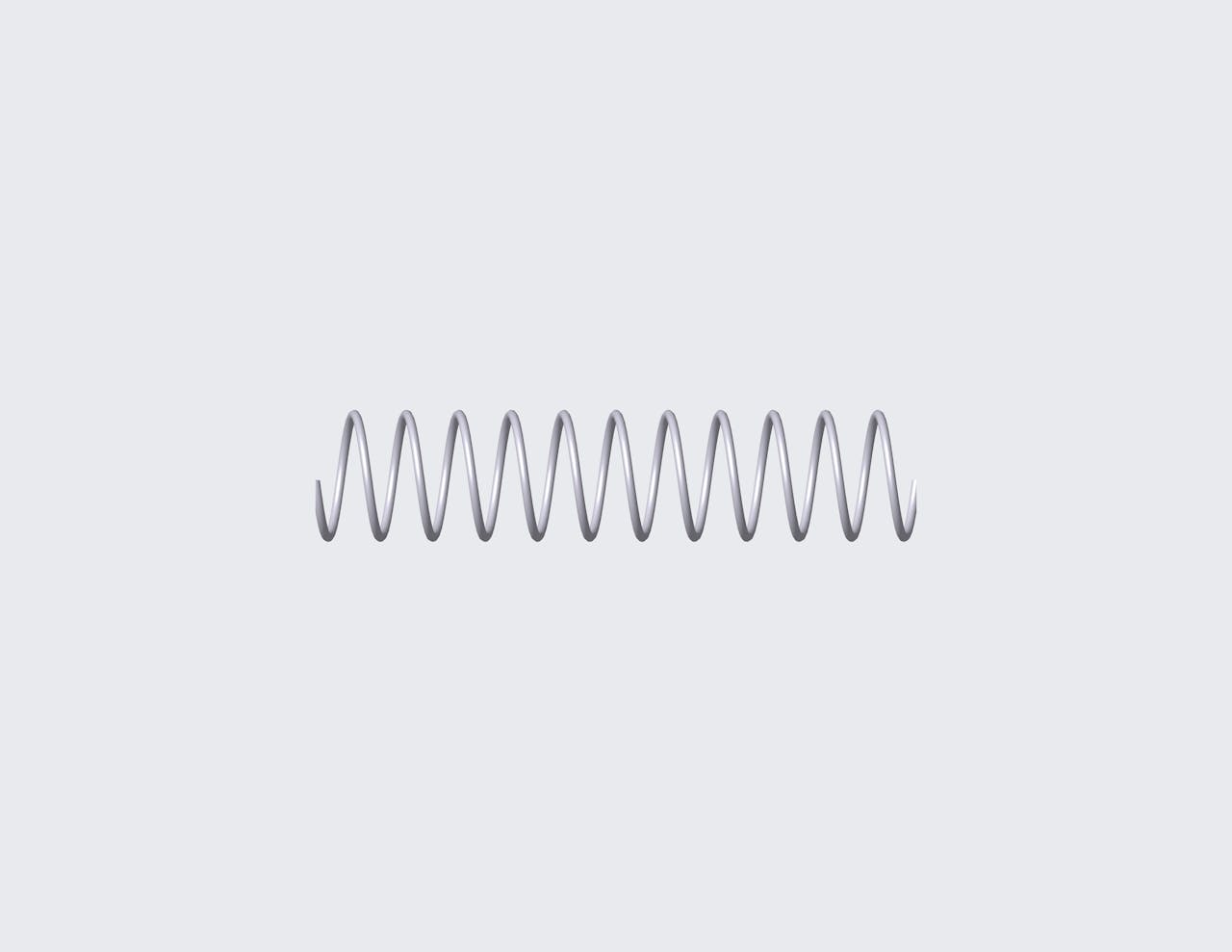

50454SCS - 2.559" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 11.3 coils and closed & ground ends. This spring features an O.D. of 0.563", and an I.D. of 0.484".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50454S
Ends Closed & Ground
Finish Passivated
Free Length 2.559 in
Inside Diameter 0.484 in
Material 316 Stainless Steel
Outside Diameter 0.563 in
Rate 2.249 lbs/in
SKU 50454SCS
Solid Length 0.445 in
Suggested Max Deflection 1.511 in
Suggested Max Load 3.399 lbf
Total Coils 11.3
Wire Diameter 0.039 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50454S
Ends Closed & Ground
Finish Passivated
Free Length 65 mm
Inside Diameter 12.29 mm
Material 316 Stainless Steel
Outside Diameter 14.3 mm
Rate 0.39 N/mm
SKU 50454SCS
Solid Length 11.3 mm
Suggested Max Deflection 38.38 mm
Suggested Max Load 15.12 N
Total Coils 11.3
Wire Diameter 0.99 mm
The compression spring 50454SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 50454S compression spring design exhibits exceptional tensile strength and resilience.

The 50454S design is manufactured with a free length of 2.559", with an outer diameter of 0.563", an inner diameter of 0.484", and a total of 11.3 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.249 lbs/in.

The 50454SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 50454S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
