50451SCS - 1.378" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

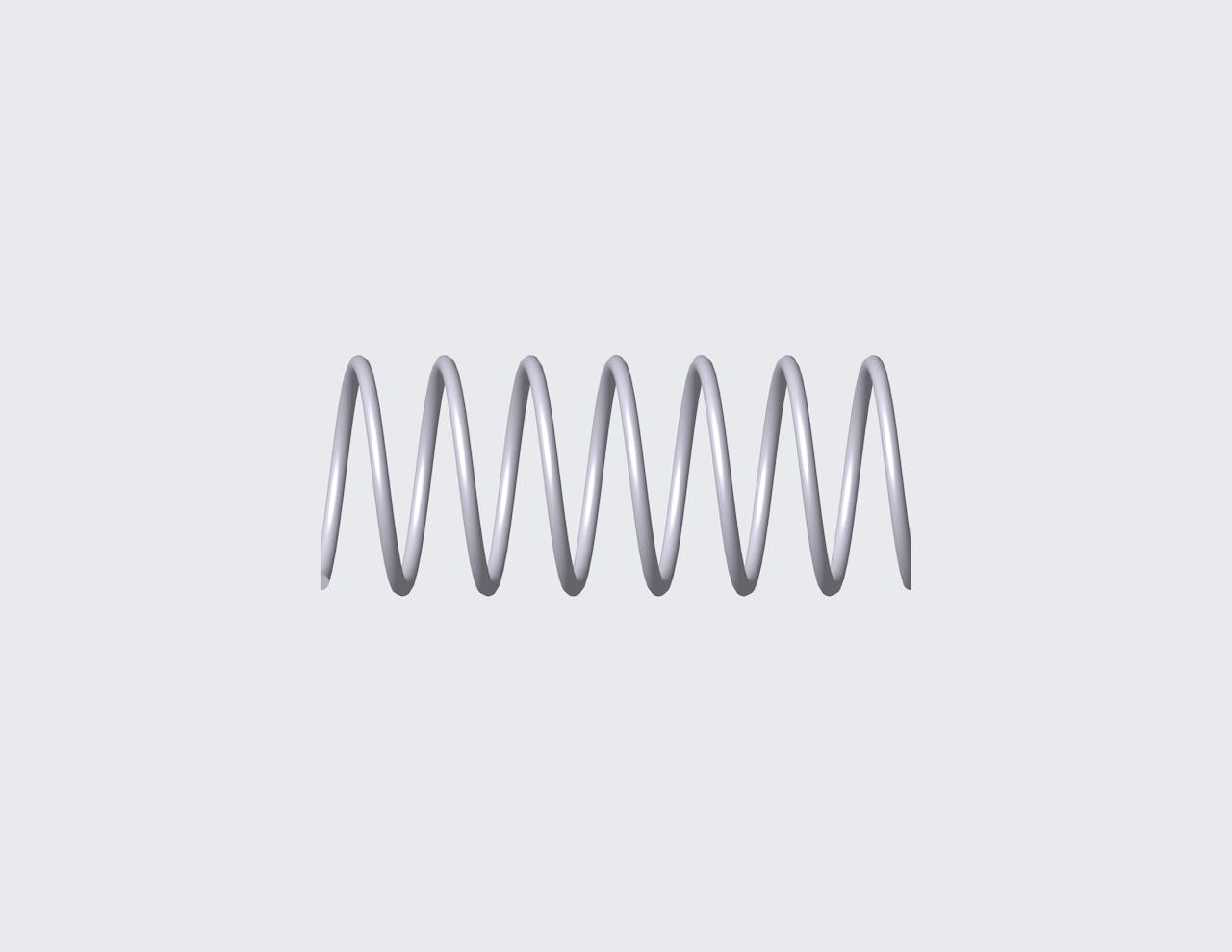

Compression spring manufactured from 316 stainless steel with 6.7 coils and closed & ground ends. This spring features an O.D. of 0.563", and an I.D. of 0.484".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 50451S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 1.378 in |
| Inside Diameter | 0.484 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 0.563 in |
| Rate | 4.451 lbs/in |
| SKU | 50451SCS |
| Solid Length | 0.264 in |
| Suggested Max Deflection | 0.764 in |
| Suggested Max Load | 3.399 lbf |
| Total Coils | 6.7 |
| Wire Diameter | 0.039 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 50451S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 35 mm |
| Inside Diameter | 12.29 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 14.3 mm |
| Rate | 0.78 N/mm |
| SKU | 50451SCS |
| Solid Length | 6.71 mm |
| Suggested Max Deflection | 19.41 mm |
| Suggested Max Load | 15.12 N |
| Total Coils | 6.7 |
| Wire Diameter | 0.99 mm |
The compression spring 50451SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 50451S compression spring design exhibits exceptional tensile strength and resilience.
The 50451S design is manufactured with a free length of 1.378", with an outer diameter of 0.563", an inner diameter of 0.484", and a total of 6.7 coils, expertly designed to deliver consistent compression characteristics including a rate of 4.451 lbs/in.
The 50451SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 50451S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
