50438SCS - 0.984" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

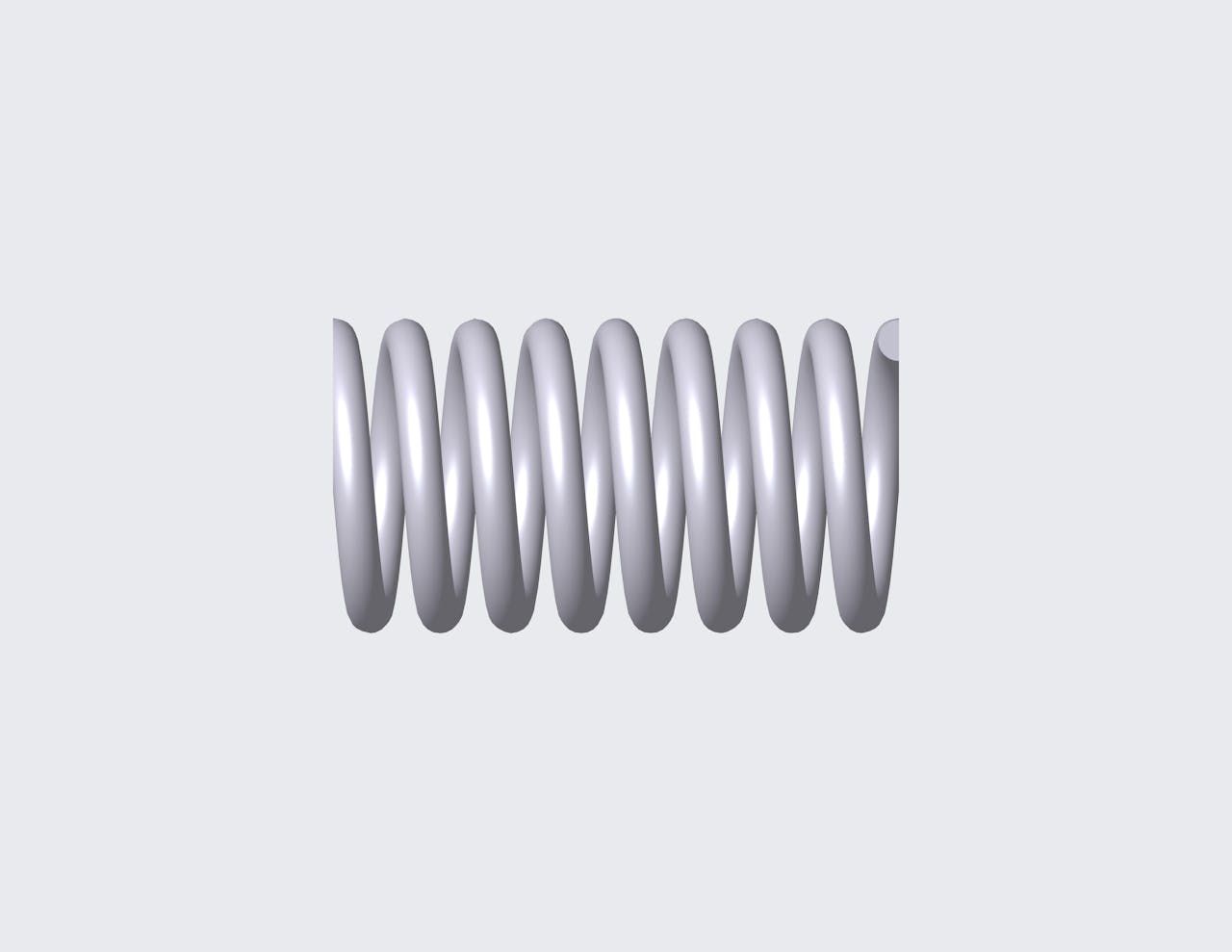

Compression spring manufactured from 316 stainless steel with 7.46 coils and closed & ground ends. This spring features an O.D. of 0.548", and an I.D. of 0.404".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 50438S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 0.984 in |
| Inside Diameter | 0.404 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 0.548 in |
| Rate | 57.06 lbs/in |
| SKU | 50438SCS |
| Solid Length | 0.537 in |
| Suggested Max Deflection | 0.324 in |
| Suggested Max Load | 18.499 lbf |
| Total Coils | 7.46 |
| Wire Diameter | 0.072 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 50438S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 24.99 mm |
| Inside Diameter | 10.26 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 13.92 mm |
| Rate | 9.99 N/mm |
| SKU | 50438SCS |
| Solid Length | 13.64 mm |
| Suggested Max Deflection | 8.23 mm |
| Suggested Max Load | 82.28 N |
| Total Coils | 7.46 |
| Wire Diameter | 1.83 mm |
The 50438SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.072" diameter 316 stainless steel, the 50438S spring design exhibits reliable strength across its 7.46 active coils, withstanding repeated compression cycles with a maximum load of 18.499 lbf without succumbing to fatigue.
We manufacture the 50438S design to provide a compression spring that is 0.984" long at rest and provides a consistent rate of 57.06 lbs/in along its recommended maximum of 0.324" deflection. For best results, your application should fully accommodate the inner (0.404") and outer (0.548") diameters of this spring and be designed for its closed & ground end configuration.
