Century Spring

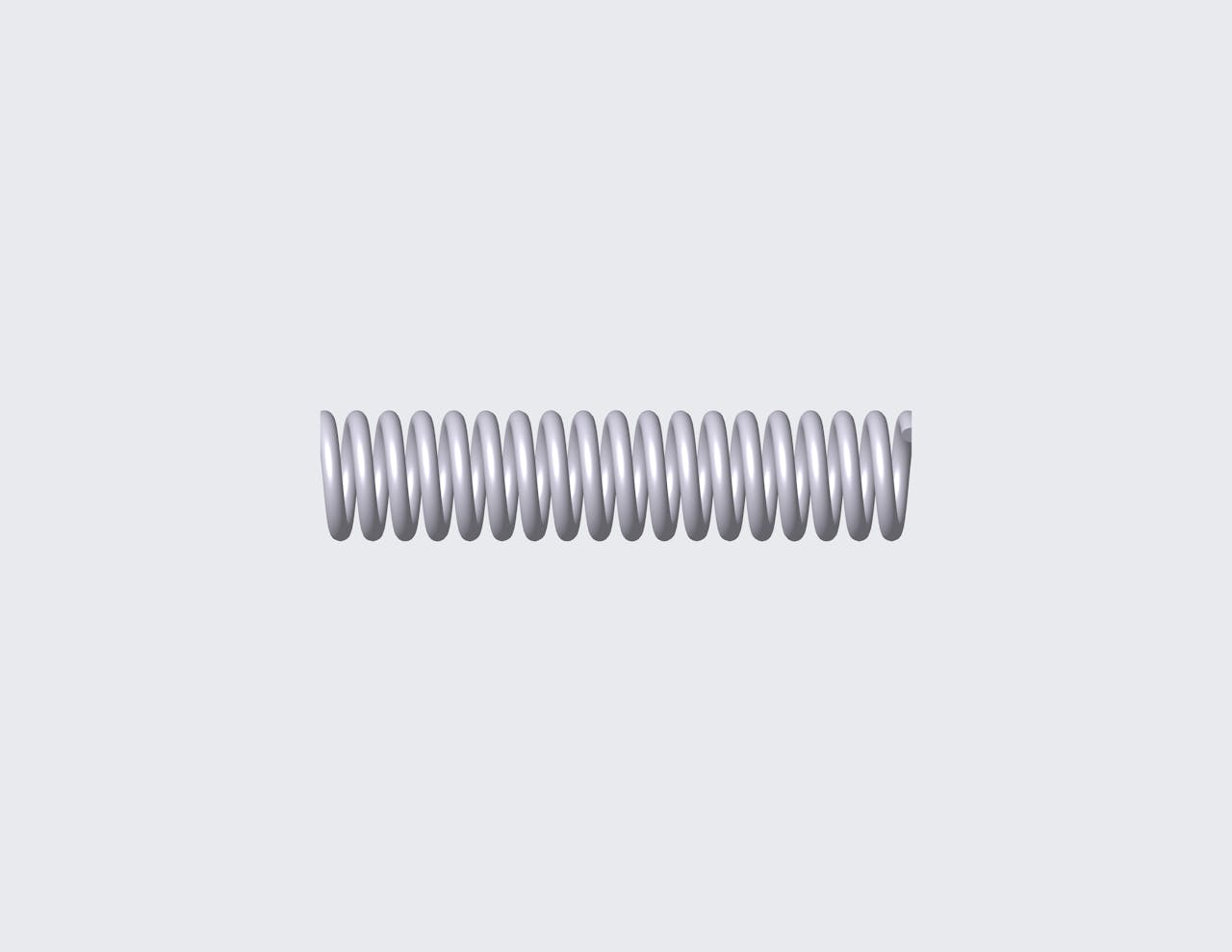

50421SCS - 2.362" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 17.62 coils and closed & ground ends. This spring features an O.D. of 0.525", and an I.D. of 0.365".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50421S
Ends Closed & Ground
Finish Passivated
Free Length 2.362 in
Inside Diameter 0.365 in
Material 316 Stainless Steel
Outside Diameter 0.525 in
Rate 37.081 lbs/in
SKU 50421SCS
Solid Length 1.408 in
Suggested Max Deflection 0.702 in
Suggested Max Load 26.02 lbf
Total Coils 17.62
Wire Diameter 0.08 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50421S
Ends Closed & Ground
Finish Passivated
Free Length 59.99 mm
Inside Diameter 9.27 mm
Material 316 Stainless Steel
Outside Diameter 13.34 mm
Rate 6.49 N/mm
SKU 50421SCS
Solid Length 35.76 mm
Suggested Max Deflection 17.83 mm
Suggested Max Load 115.74 N
Total Coils 17.62
Wire Diameter 2.03 mm
The compression spring 50421SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 50421S compression spring design exhibits exceptional tensile strength and resilience.

The 50421S design is manufactured with a free length of 2.362", with an outer diameter of 0.525", an inner diameter of 0.365", and a total of 17.62 coils, expertly designed to deliver consistent compression characteristics including a rate of 37.081 lbs/in.

The 50421SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 50421S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
