Century Spring

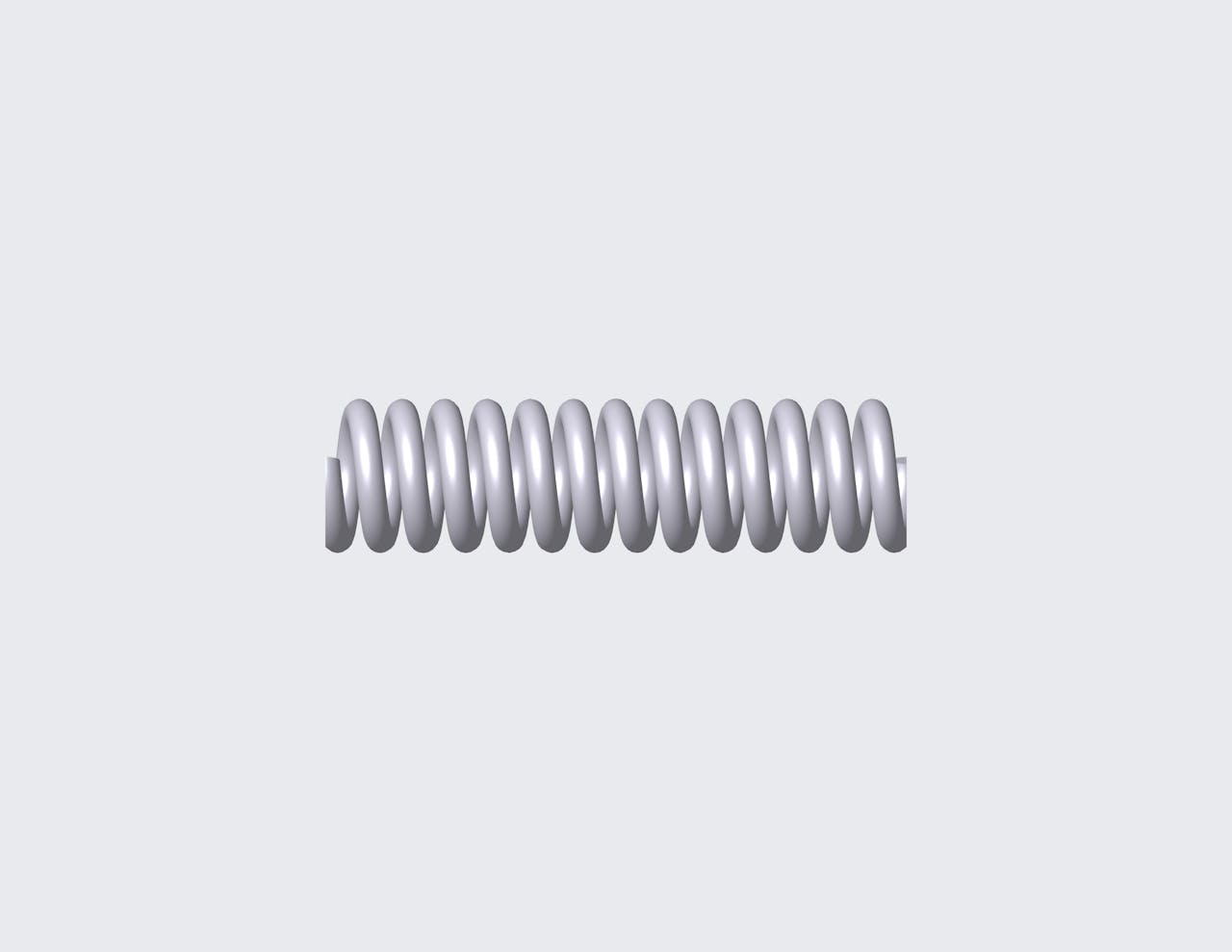

50408SCS - 1.969" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 12.9 coils and closed & ground ends. This spring features an O.D. of 0.524", and an I.D. of 0.327".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50408S
Ends Closed & Ground
Finish Passivated
Free Length 1.969 in
Inside Diameter 0.327 in
Material 316 Stainless Steel
Outside Diameter 0.524 in
Rate 140.004 lbs/in
SKU 50408SCS
Solid Length 1.27 in
Suggested Max Deflection 0.322 in
Suggested Max Load 45.087 lbf
Total Coils 12.9
Wire Diameter 0.098 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50408S
Ends Closed & Ground
Finish Passivated
Free Length 50.01 mm
Inside Diameter 8.31 mm
Material 316 Stainless Steel
Outside Diameter 13.31 mm
Rate 24.51 N/mm
SKU 50408SCS
Solid Length 32.26 mm
Suggested Max Deflection 8.18 mm
Suggested Max Load 200.55 N
Total Coils 12.9
Wire Diameter 2.49 mm
The 50408SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.098" diameter 316 stainless steel, the 50408S spring design exhibits reliable strength across its 12.9 active coils, withstanding repeated compression cycles with a maximum load of 45.087 lbf without succumbing to fatigue.

We manufacture the 50408S design to provide a compression spring that is 1.969" long at rest and provides a consistent rate of 140.004 lbs/in along its recommended maximum of 0.322" deflection. For best results, your application should fully accommodate the inner (0.327") and outer (0.524") diameters of this spring and be designed for its closed & ground end configuration.
