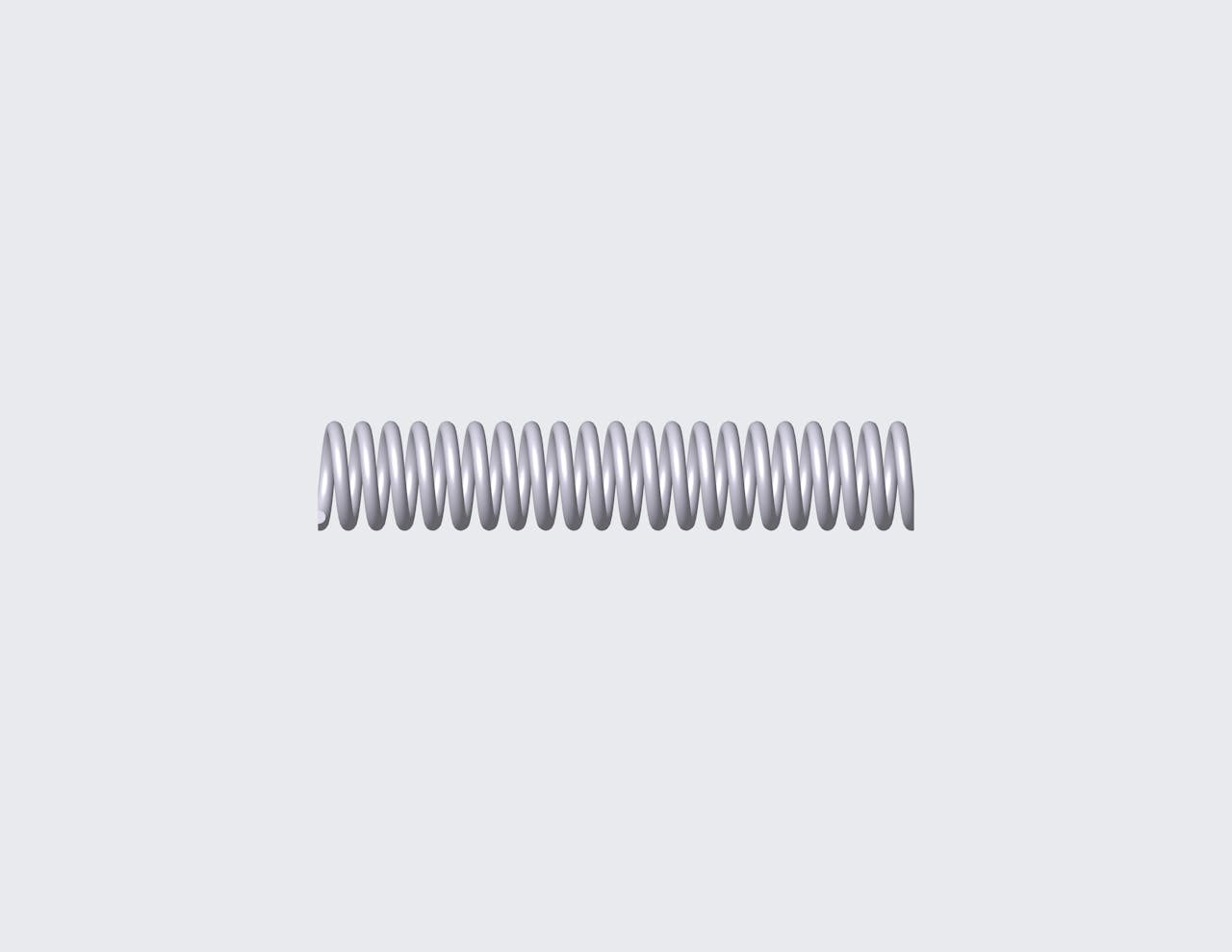

50406SCS - 2.756" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 20.61 coils and closed & ground ends. This spring features an O.D. of 0.509", and an I.D. of 0.365".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50406S
Ends Closed & Ground
Finish Passivated
Free Length 2.756 in
Inside Diameter 0.365 in
Material 316 Stainless Steel
Outside Diameter 0.509 in
Rate 21.685 lbs/in
SKU 50406SCS
Solid Length 1.485 in
Suggested Max Deflection 0.913 in
Suggested Max Load 19.798 lbf
Total Coils 20.61
Wire Diameter 0.072 in
The compression spring 50406SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 50406S compression spring design exhibits exceptional tensile strength and resilience.

The 50406S design is manufactured with a free length of 2.756", with an outer diameter of 0.509", an inner diameter of 0.365", and a total of 20.61 coils, expertly designed to deliver consistent compression characteristics including a rate of 21.685 lbs/in.

The 50406SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 50406S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
