Century Spring

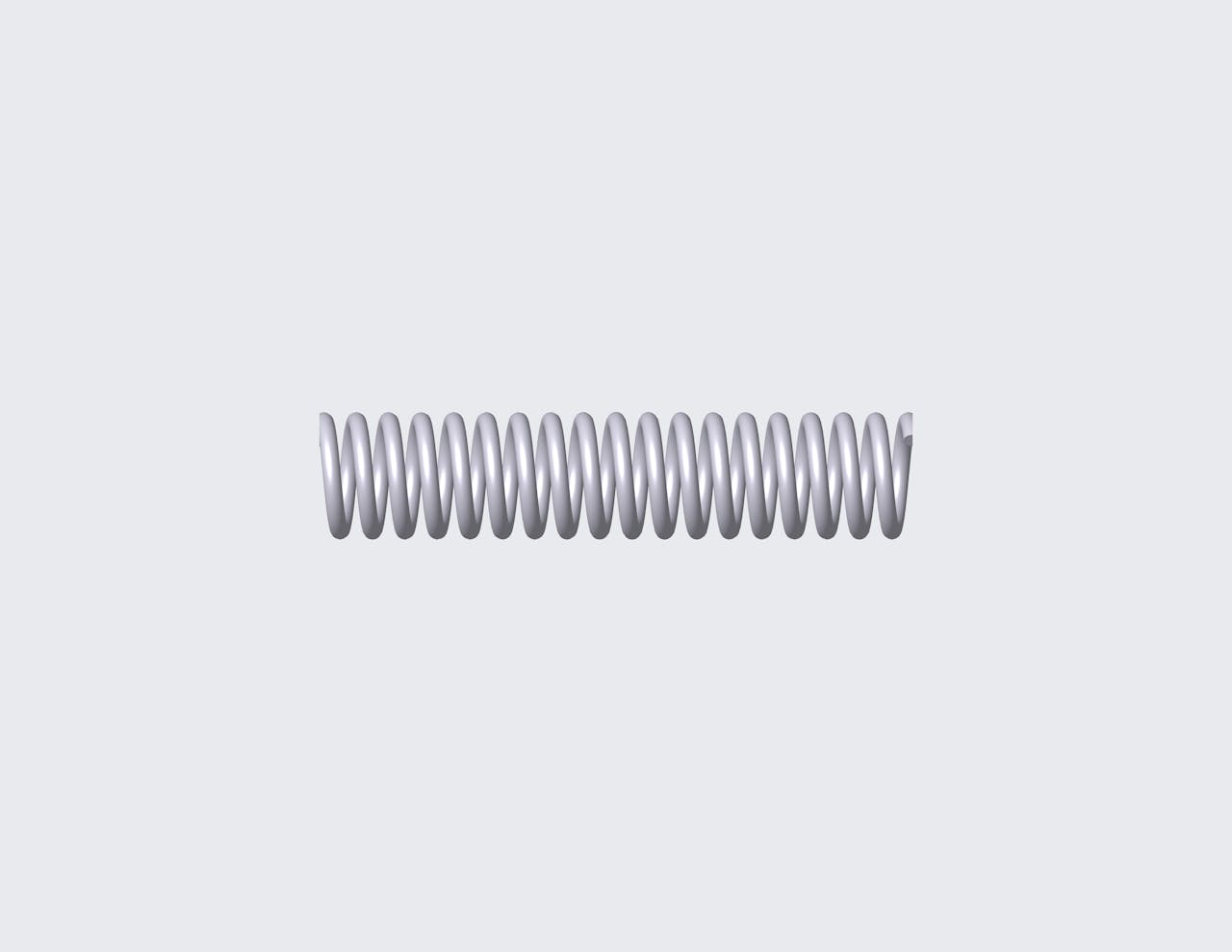

50405SCS - 2.362" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 17.72 coils and closed & ground ends. This spring features an O.D. of 0.509", and an I.D. of 0.365".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50405S
Ends Closed & Ground
Finish Passivated
Free Length 2.362 in
Inside Diameter 0.365 in
Material 316 Stainless Steel
Outside Diameter 0.509 in
Rate 25.672 lbs/in
SKU 50405SCS
Solid Length 1.277 in
Suggested Max Deflection 0.771 in
Suggested Max Load 19.798 lbf
Total Coils 17.72
Wire Diameter 0.072 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50405S
Ends Closed & Ground
Finish Passivated
Free Length 59.99 mm
Inside Diameter 9.27 mm
Material 316 Stainless Steel
Outside Diameter 12.93 mm
Rate 4.5 N/mm
SKU 50405SCS
Solid Length 32.44 mm
Suggested Max Deflection 19.58 mm
Suggested Max Load 88.06 N
Total Coils 17.72
Wire Diameter 1.83 mm
The 50405SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.072" diameter 316 stainless steel, the 50405S spring design exhibits reliable strength across its 17.72 active coils, withstanding repeated compression cycles with a maximum load of 19.798 lbf without succumbing to fatigue.

We manufacture the 50405S design to provide a compression spring that is 2.362" long at rest and provides a consistent rate of 25.672 lbs/in along its recommended maximum of 0.771" deflection. For best results, your application should fully accommodate the inner (0.365") and outer (0.509") diameters of this spring and be designed for its closed & ground end configuration.
