Century Spring

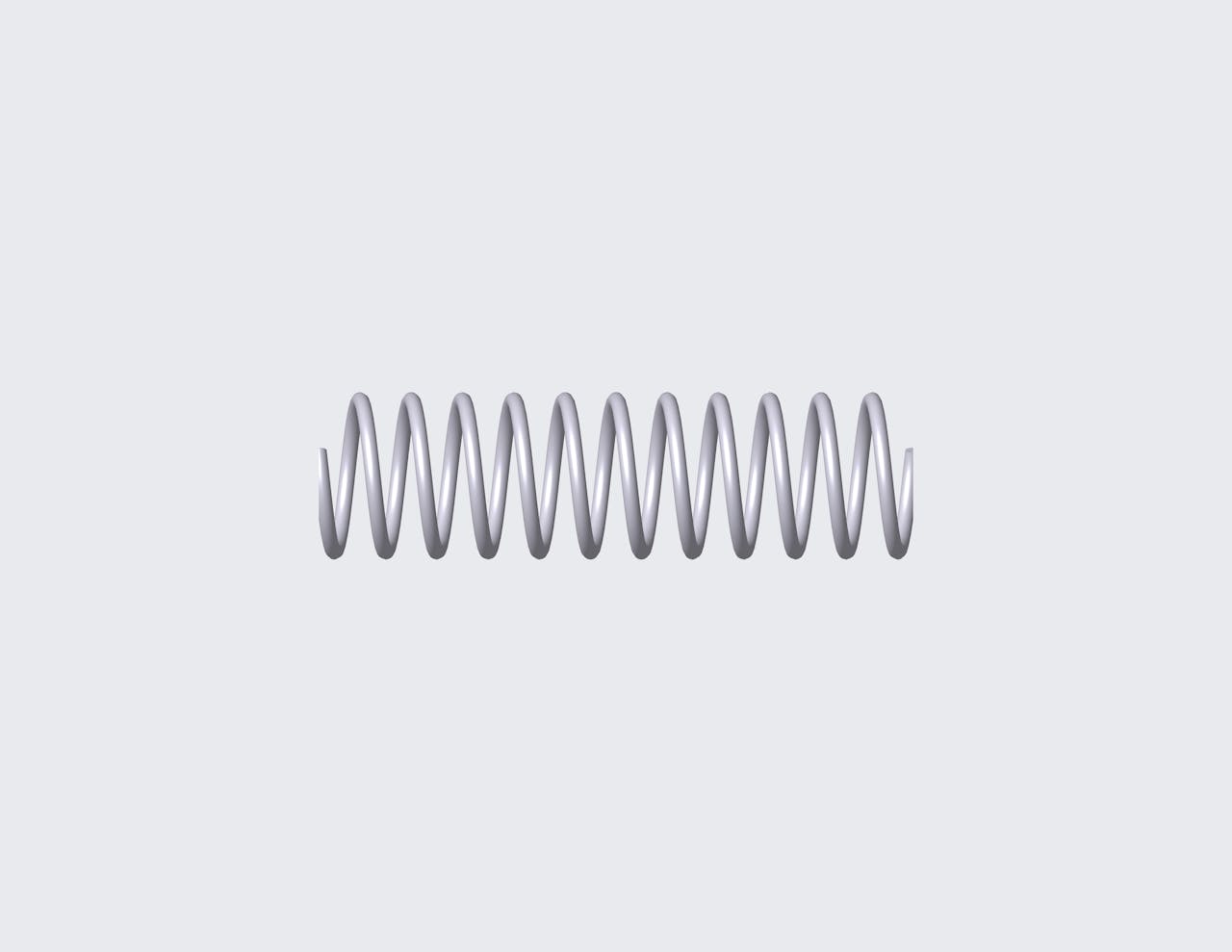

50397SCS - 1.772" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 11.3 coils and closed & ground ends. This spring features an O.D. of 0.5", and an I.D. of 0.406".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50397S
Ends Closed & Ground
Finish Passivated
Free Length 1.772 in
Inside Diameter 0.406 in
Material 316 Stainless Steel
Outside Diameter 0.5 in
Rate 7.215 lbs/in
SKU 50397SCS
Solid Length 0.534 in
Suggested Max Deflection 0.866 in
Suggested Max Load 6.249 lbf
Total Coils 11.3
Wire Diameter 0.047 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50397S
Ends Closed & Ground
Finish Passivated
Free Length 45.01 mm
Inside Diameter 10.31 mm
Material 316 Stainless Steel
Outside Diameter 12.7 mm
Rate 1.26 N/mm
SKU 50397SCS
Solid Length 13.56 mm
Suggested Max Deflection 22 mm
Suggested Max Load 27.8 N
Total Coils 11.3
Wire Diameter 1.19 mm
The 50397SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.047" diameter 316 stainless steel, the 50397S spring design exhibits reliable strength across its 11.3 active coils, withstanding repeated compression cycles with a maximum load of 6.249 lbf without succumbing to fatigue.

We manufacture the 50397S design to provide a compression spring that is 1.772" long at rest and provides a consistent rate of 7.215 lbs/in along its recommended maximum of 0.866" deflection. For best results, your application should fully accommodate the inner (0.406") and outer (0.5") diameters of this spring and be designed for its closed & ground end configuration.
