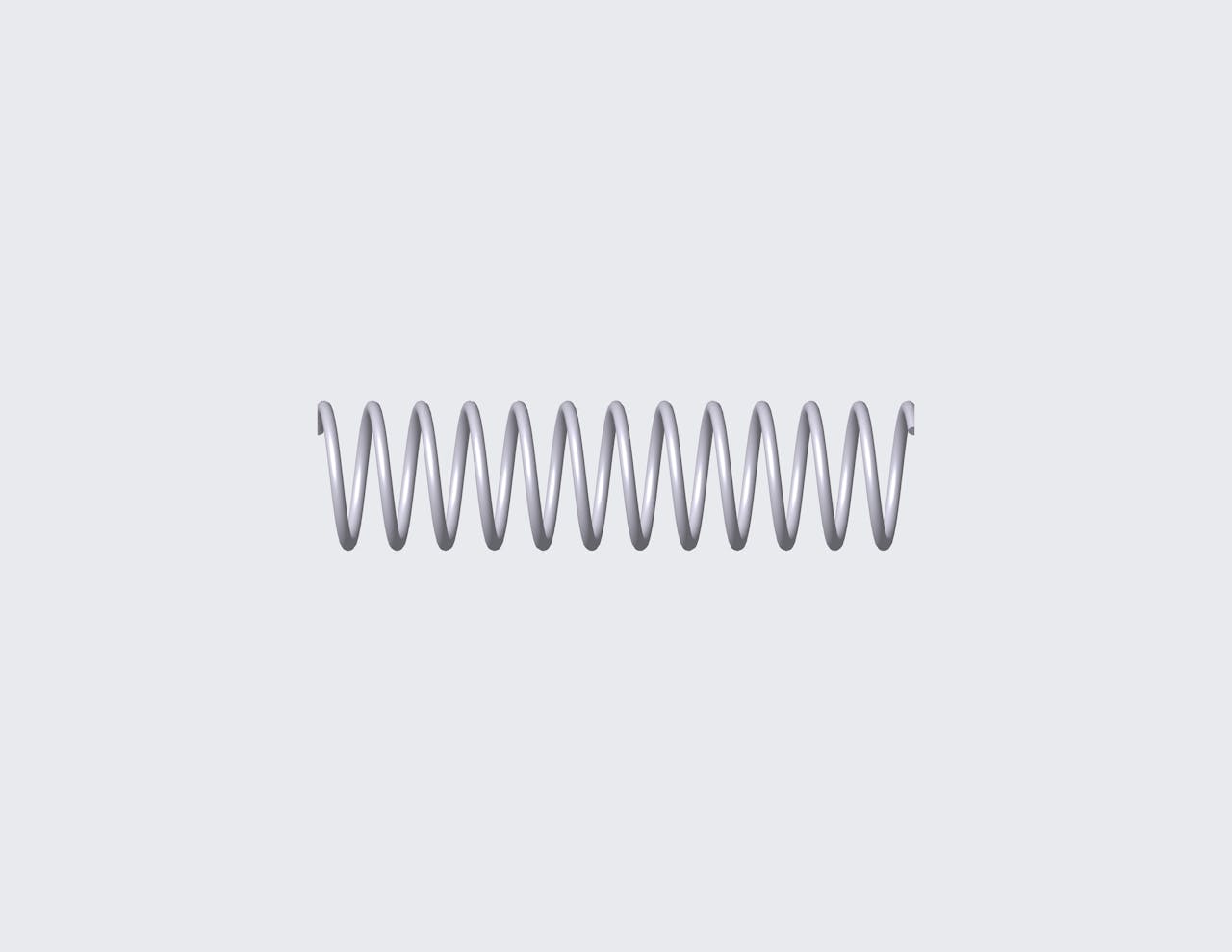

50340SCS - 1.772" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 316 stainless steel with 12 coils and closed & ground ends. This spring features an O.D. of 0.445", and an I.D. of 0.366".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 50340S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 1.772 in |
| Inside Diameter | 0.366 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 0.445 in |
| Rate | 4.504 lbs/in |
| SKU | 50340SCS |
| Solid Length | 0.472 in |
| Suggested Max Deflection | 0.946 in |
| Suggested Max Load | 4.262 lbf |
| Total Coils | 12 |
| Wire Diameter | 0.039 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 50340S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 45.01 mm |
| Inside Diameter | 9.3 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 11.3 mm |
| Rate | 0.79 N/mm |
| SKU | 50340SCS |
| Solid Length | 11.99 mm |
| Suggested Max Deflection | 24.03 mm |
| Suggested Max Load | 18.96 N |
| Total Coils | 12 |
| Wire Diameter | 0.99 mm |
The 50340SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.039" diameter 316 stainless steel, the 50340S spring design exhibits reliable strength across its 12 active coils, withstanding repeated compression cycles with a maximum load of 4.262 lbf without succumbing to fatigue.
We manufacture the 50340S design to provide a compression spring that is 1.772" long at rest and provides a consistent rate of 4.504 lbs/in along its recommended maximum of 0.946" deflection. For best results, your application should fully accommodate the inner (0.366") and outer (0.445") diameters of this spring and be designed for its closed & ground end configuration.
