50319SCS - 0.787" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

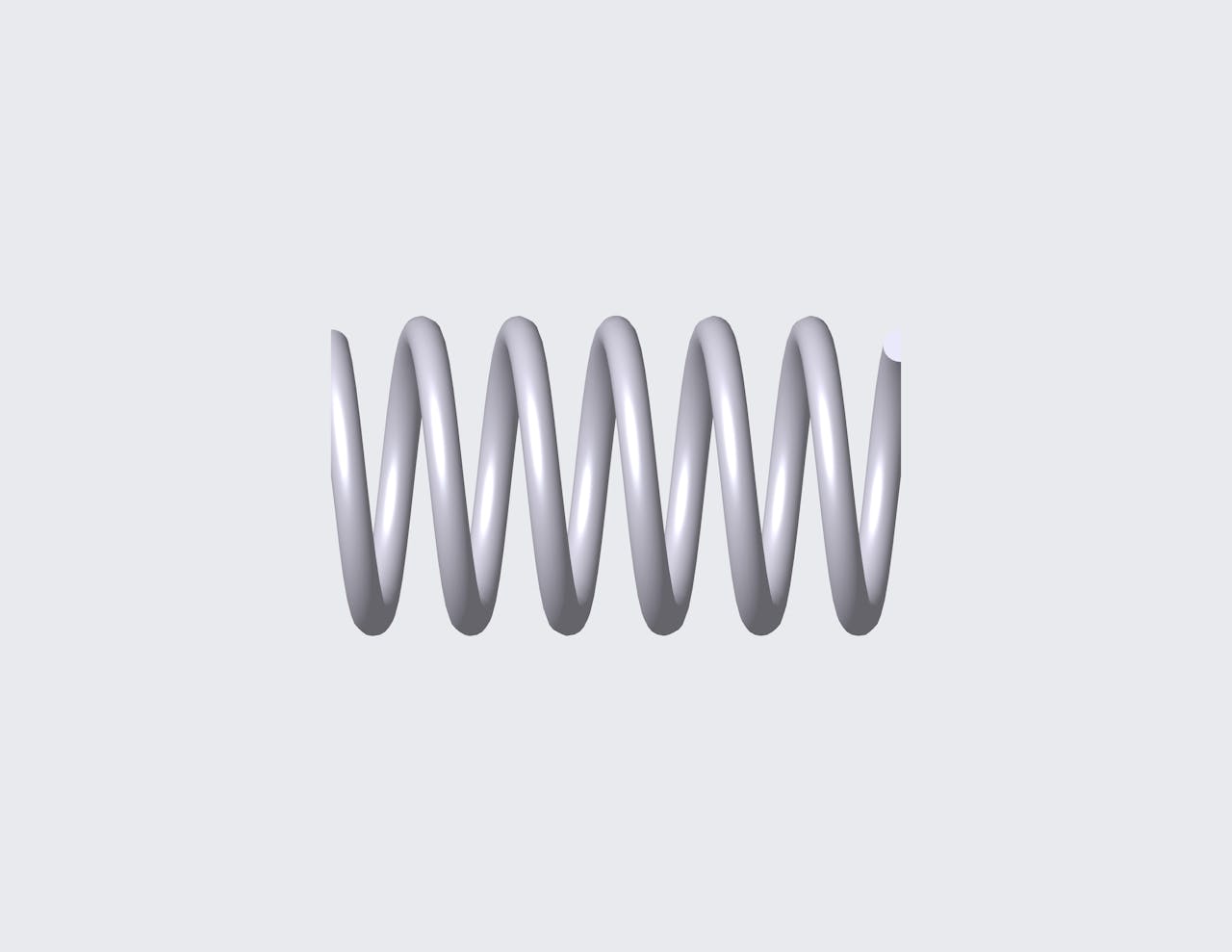

Compression spring manufactured from 316 stainless steel with 5.5 coils and closed & ground ends. This spring features an O.D. of 0.443", and an I.D. of 0.344".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 50319S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 0.787 in |
| Inside Diameter | 0.344 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 0.443 in |
| Rate | 34.328 lbs/in |
| SKU | 50319SCS |
| Solid Length | 0.271 in |
| Suggested Max Deflection | 0.23 in |
| Suggested Max Load | 7.9 lbf |
| Total Coils | 5.5 |
| Wire Diameter | 0.049 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 50319S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 19.99 mm |
| Inside Diameter | 8.74 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 11.25 mm |
| Rate | 6.01 N/mm |
| SKU | 50319SCS |
| Solid Length | 6.88 mm |
| Suggested Max Deflection | 5.84 mm |
| Suggested Max Load | 35.14 N |
| Total Coils | 5.5 |
| Wire Diameter | 1.24 mm |
The 50319SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.049" diameter 316 stainless steel, the 50319S spring design exhibits reliable strength across its 5.5 active coils, withstanding repeated compression cycles with a maximum load of 7.9 lbf without succumbing to fatigue.
We manufacture the 50319S design to provide a compression spring that is 0.787" long at rest and provides a consistent rate of 34.328 lbs/in along its recommended maximum of 0.23" deflection. For best results, your application should fully accommodate the inner (0.344") and outer (0.443") diameters of this spring and be designed for its closed & ground end configuration.
