Century Spring

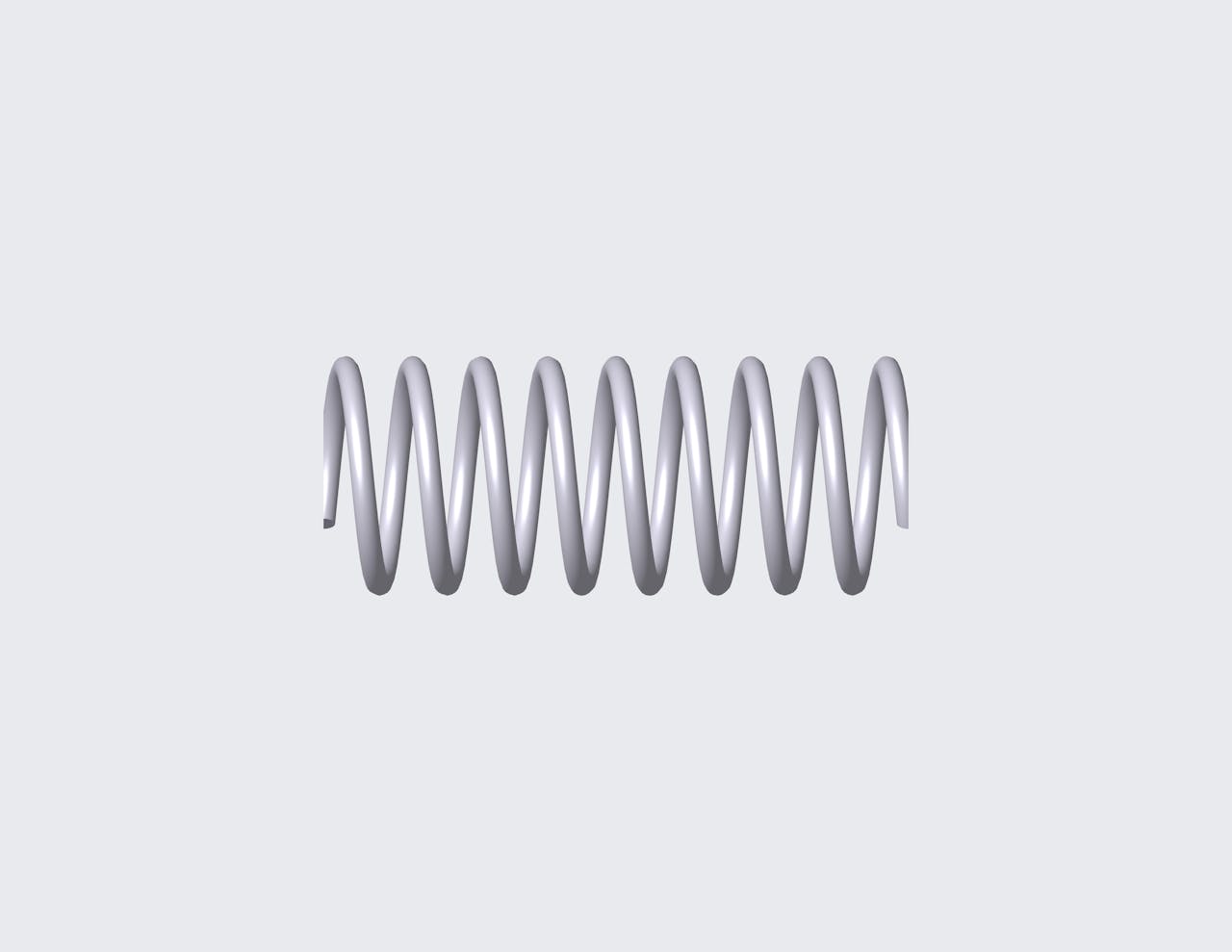

50285SCS - 0.984" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 8.3 coils and closed & ground ends. This spring features an O.D. of 0.404", and an I.D. of 0.325".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50285S
Ends Closed & Ground
Finish Passivated
Free Length 0.984 in
Inside Diameter 0.325 in
Material 316 Stainless Steel
Outside Diameter 0.404 in
Rate 9.87 lbs/in
SKU 50285SCS
Solid Length 0.327 in
Suggested Max Deflection 0.474 in
Suggested Max Load 4.676 lbf
Total Coils 8.3
Wire Diameter 0.039 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50285S
Ends Closed & Ground
Finish Passivated
Free Length 24.99 mm
Inside Diameter 8.26 mm
Material 316 Stainless Steel
Outside Diameter 10.26 mm
Rate 1.73 N/mm
SKU 50285SCS
Solid Length 8.31 mm
Suggested Max Deflection 12.04 mm
Suggested Max Load 20.8 N
Total Coils 8.3
Wire Diameter 0.99 mm
The compression spring 50285SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 50285S compression spring design exhibits exceptional tensile strength and resilience.

The 50285S design is manufactured with a free length of 0.984", with an outer diameter of 0.404", an inner diameter of 0.325", and a total of 8.3 coils, expertly designed to deliver consistent compression characteristics including a rate of 9.87 lbs/in.

The 50285SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 50285S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
