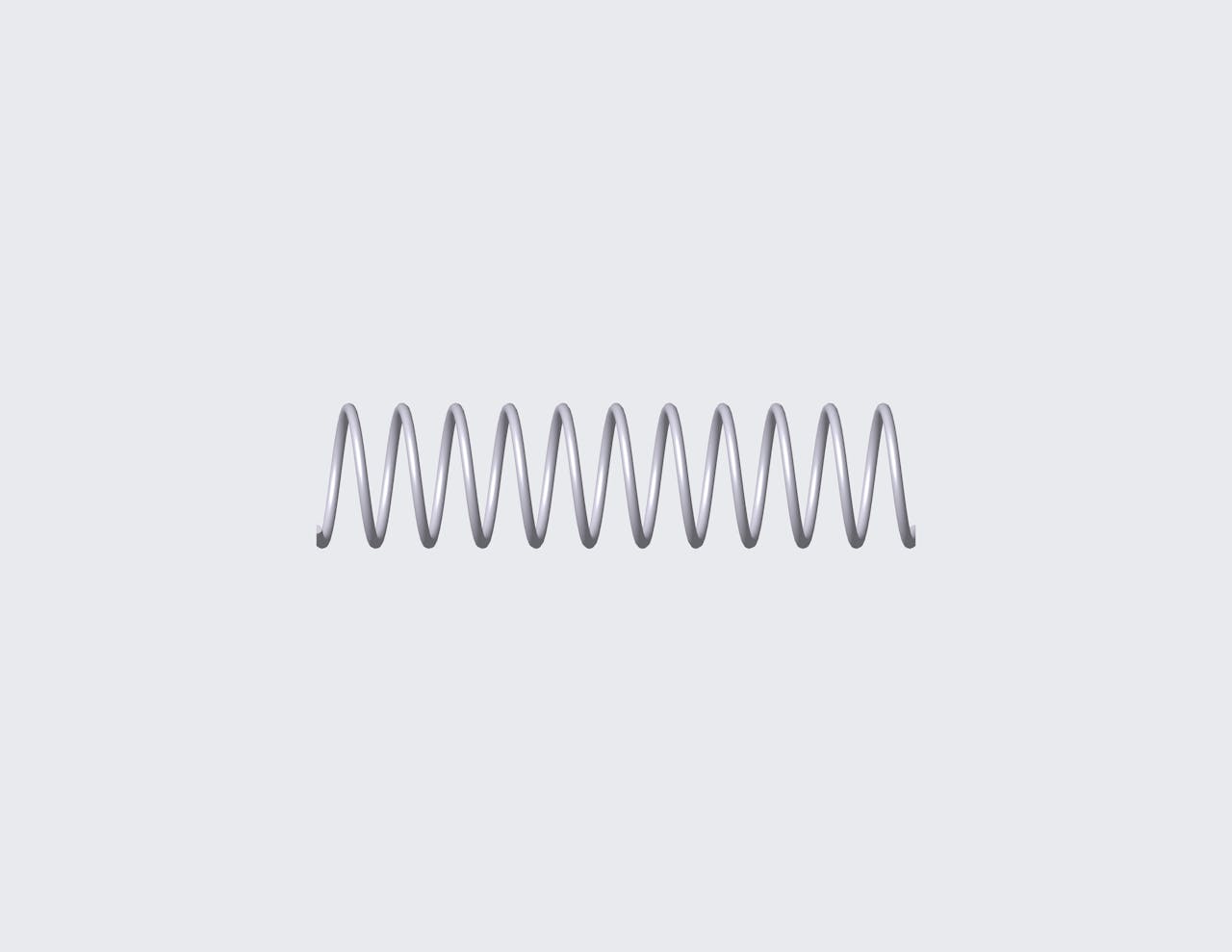

50279SCS - 1.575" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 316 stainless steel with 11 coils and closed & ground ends. This spring features an O.D. of 0.384", and an I.D. of 0.325".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 50279S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 1.575 in |
| Inside Diameter | 0.325 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 0.384 in |
| Rate | 2.373 lbs/in |
| SKU | 50279SCS |
| Solid Length | 0.325 in |
| Suggested Max Deflection | 0.883 in |
| Suggested Max Load | 2.096 lbf |
| Total Coils | 11 |
| Wire Diameter | 0.03 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 50279S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 40.01 mm |
| Inside Diameter | 8.26 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 9.75 mm |
| Rate | 0.42 N/mm |
| SKU | 50279SCS |
| Solid Length | 8.26 mm |
| Suggested Max Deflection | 22.43 mm |
| Suggested Max Load | 9.32 N |
| Total Coils | 11 |
| Wire Diameter | 0.76 mm |
The compression spring 50279SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 50279S compression spring design exhibits exceptional tensile strength and resilience.
The 50279S design is manufactured with a free length of 1.575", with an outer diameter of 0.384", an inner diameter of 0.325", and a total of 11 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.373 lbs/in.
The 50279SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 50279S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
