50274SCS - 0.394" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

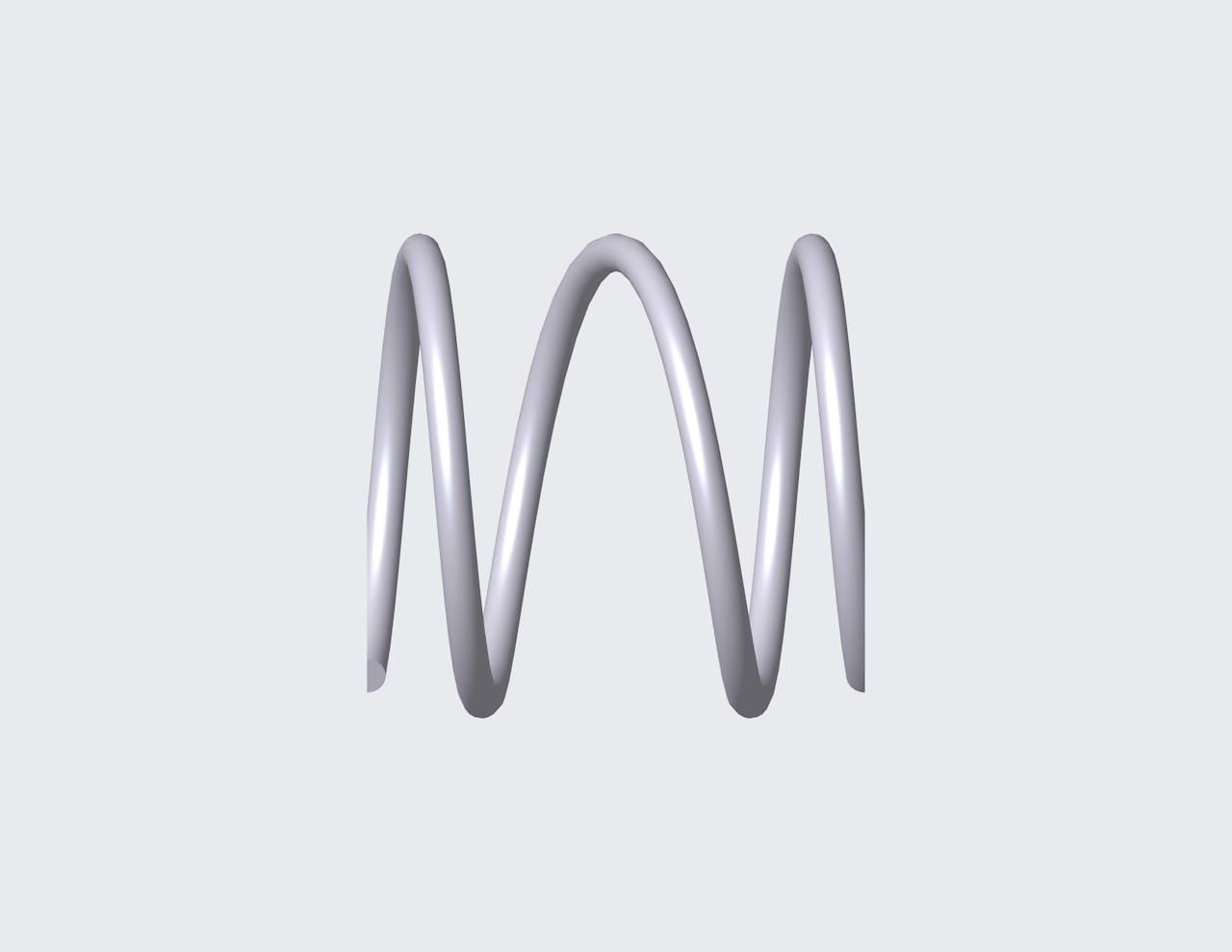

Compression spring manufactured from 316 stainless steel with 3.7 coils and closed & ground ends. This spring features an O.D. of 0.384", and an I.D. of 0.325".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50274S
Ends Closed & Ground
Finish Passivated
Free Length 0.394 in
Inside Diameter 0.325 in
Material 316 Stainless Steel
Outside Diameter 0.384 in
Rate 12.565 lbs/in
SKU 50274SCS
Solid Length 0.109 in
Suggested Max Deflection 0.167 in
Suggested Max Load 2.096 lbf
Total Coils 3.7
Wire Diameter 0.03 in
The 50274S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 316 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 50274SCS compression spring is designed with a free length of 2.362" total of 22.1 coils, and a rate of 8.415 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 50274S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
