Century Spring

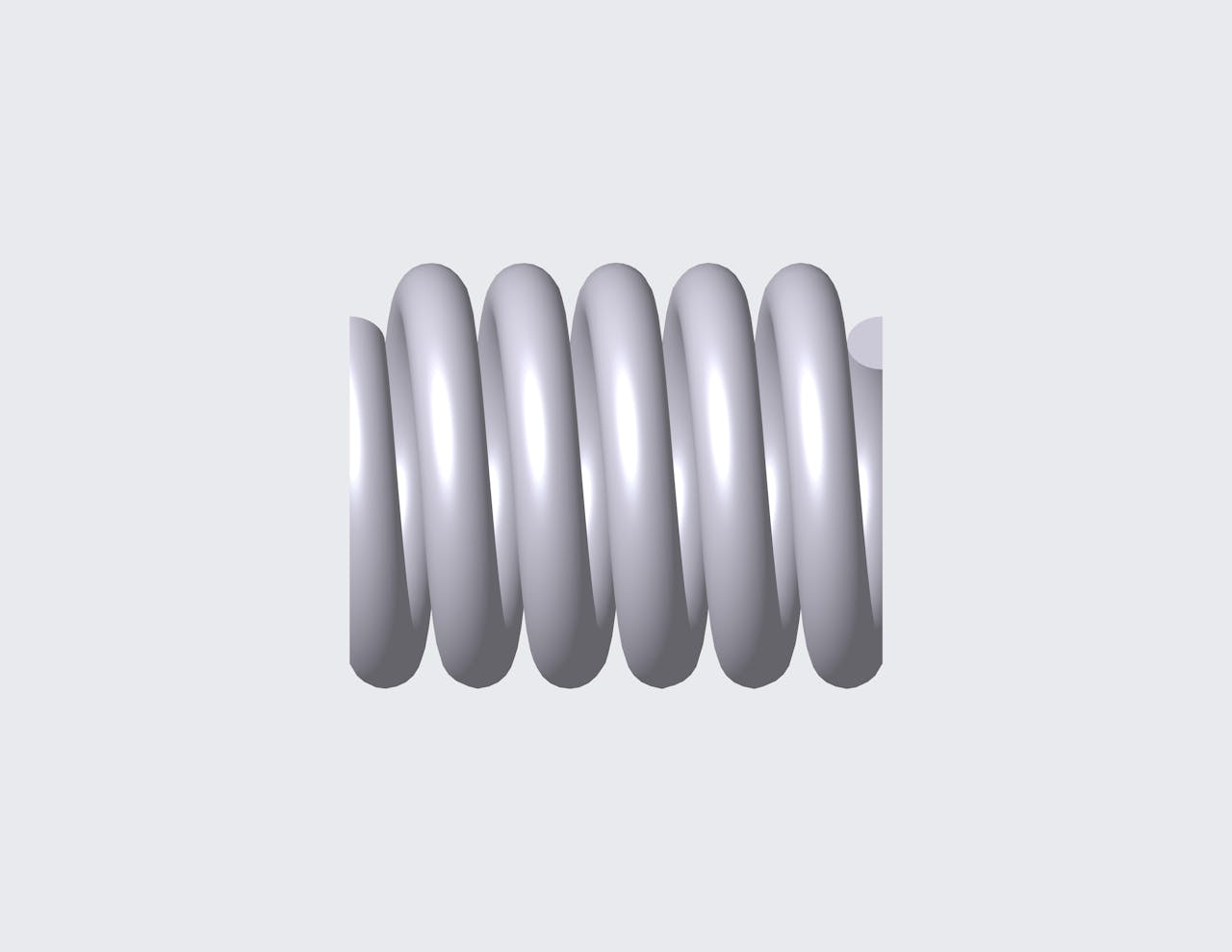

50267SCS - 0.472" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 5 coils and closed & ground ends. This spring features an O.D. of 0.378", and an I.D. of 0.253".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50267S
Ends Closed & Ground
Finish Passivated
Free Length 0.472 in
Inside Diameter 0.253 in
Material 316 Stainless Steel
Outside Diameter 0.378 in
Rate 209.975 lbs/in
SKU 50267SCS
Solid Length 0.315 in
Suggested Max Deflection 0.085 in
Suggested Max Load 17.866 lbf
Total Coils 5
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50267S
Ends Closed & Ground
Finish Passivated
Free Length 11.99 mm
Inside Diameter 6.43 mm
Material 316 Stainless Steel
Outside Diameter 9.6 mm
Rate 36.77 N/mm
SKU 50267SCS
Solid Length 8 mm
Suggested Max Deflection 2.16 mm
Suggested Max Load 79.47 N
Total Coils 5
Wire Diameter 1.59 mm
The compression spring 50267SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 50267S compression spring design exhibits exceptional tensile strength and resilience.

The 50267S design is manufactured with a free length of 0.472", with an outer diameter of 0.378", an inner diameter of 0.253", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 209.975 lbs/in.

The 50267SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 50267S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
