Century Spring

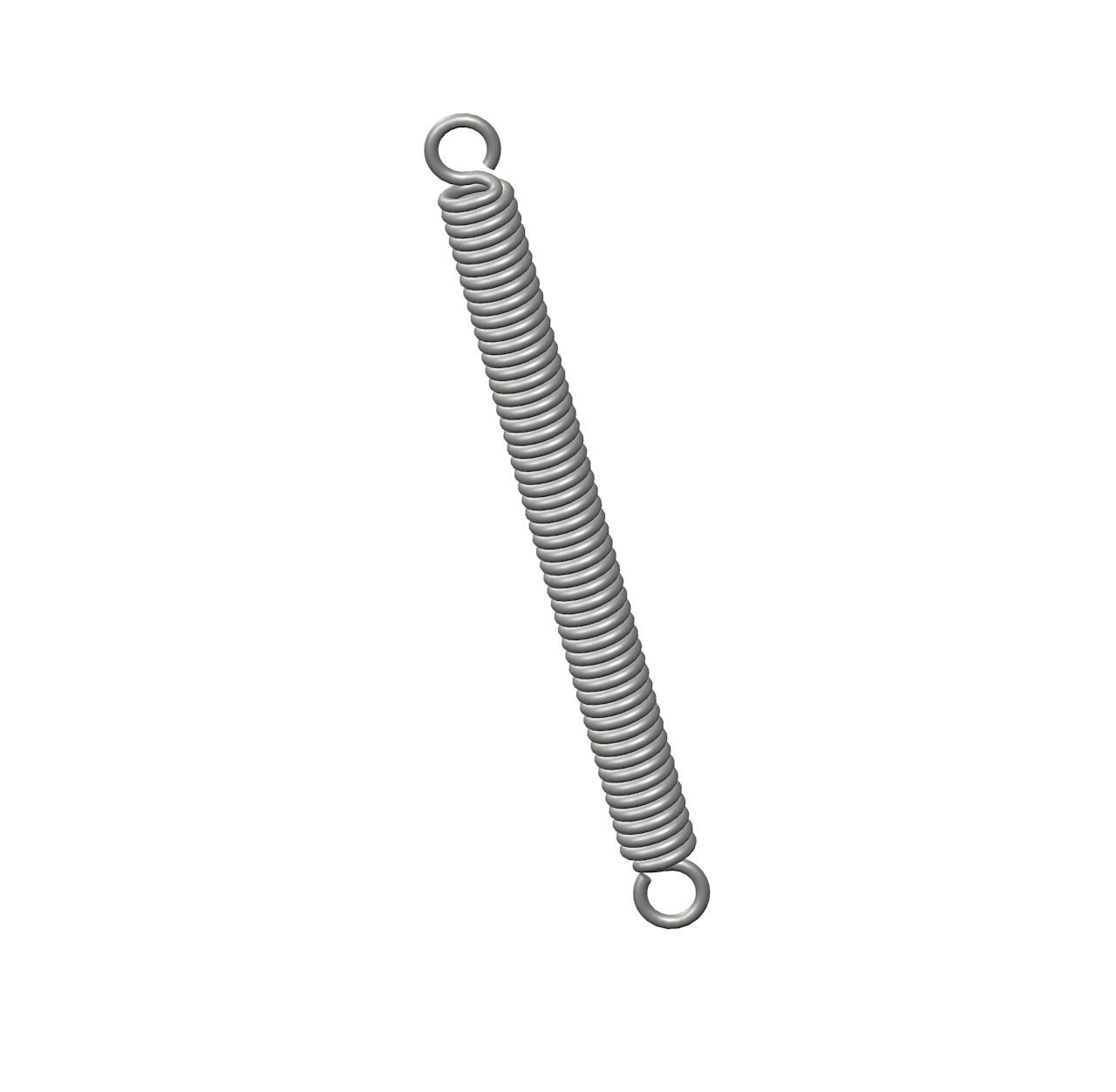

5025CS - 8.5 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.75 Inch and an initial tension of 37 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5025
Ends Machine Hook
Finish Zinc
Initial Tension 37 lb
Length 8.5 in
Material Spring Steel
Outside Diameter 0.75 in
Part Type Standard
Rate 45 lbs/in
SKU 5025CS
Sugg Max Deflection 1.8 in
Sugg Max Load 120 lbf
Wind Direction Left
Wire Diameter 0.14 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5025
Ends Machine Hook
Finish Zinc
Initial Tension 16.78 kg
Length 215.9 mm
Material Spring Steel
Outside Diameter 19.05 mm
Part Type Standard
Rate 7.88 N/mm
SKU 5025CS
Sugg Max Deflection 45.72 mm
Sugg Max Load 533.76 N
Wind Direction Left
Wire Diameter 3.56 mm
