50239SCS - 0.472" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

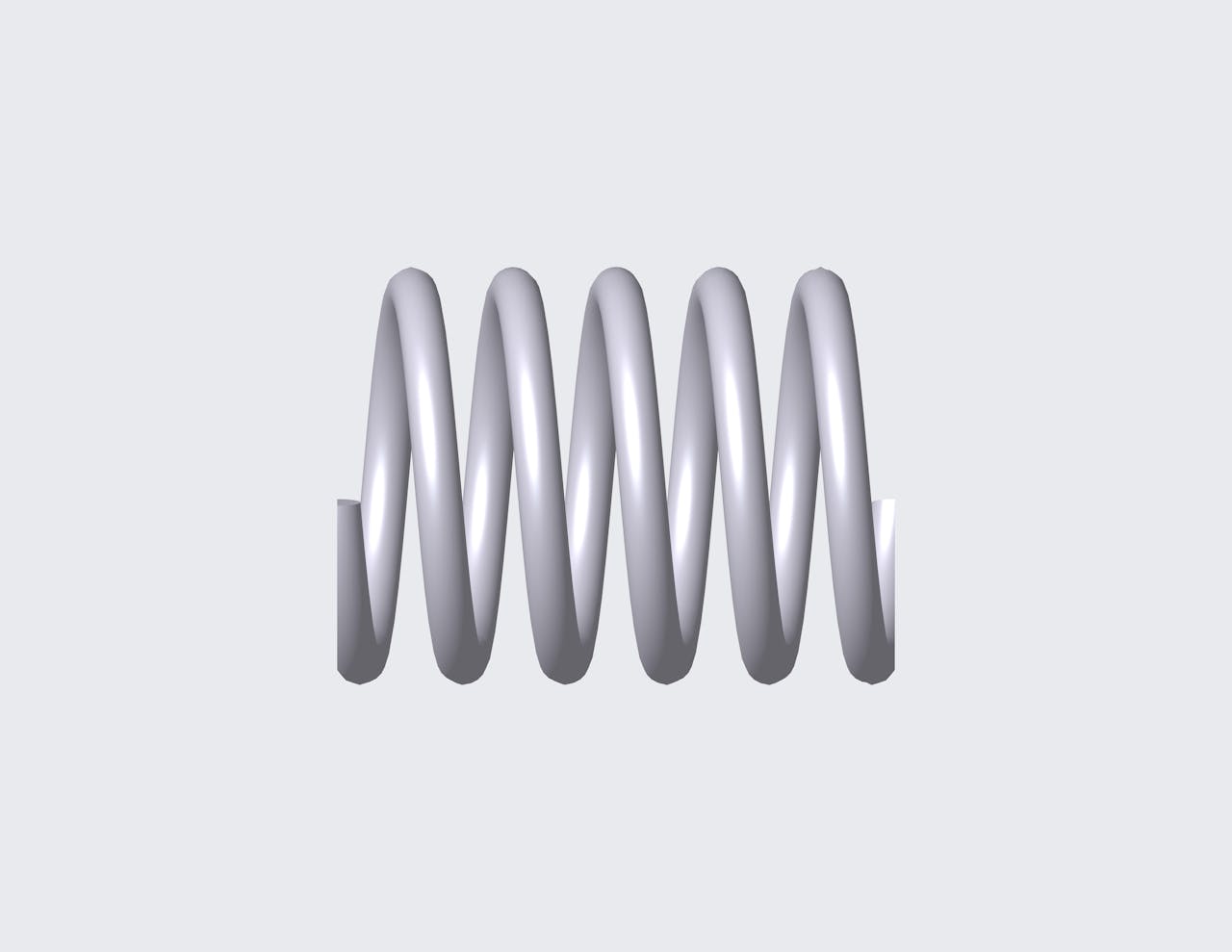

Compression spring manufactured from 316 stainless steel with 5 coils and closed & ground ends. This spring features an O.D. of 0.354", and an I.D. of 0.276".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 50239S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 0.472 in |
| Inside Diameter | 0.276 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 0.354 in |
| Rate | 32.04 lbs/in |
| SKU | 50239SCS |
| Solid Length | 0.197 in |
| Suggested Max Deflection | 0.165 in |
| Suggested Max Load | 5.285 lbf |
| Total Coils | 5 |
| Wire Diameter | 0.039 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 50239S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 11.99 mm |
| Inside Diameter | 7.01 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 8.99 mm |
| Rate | 5.61 N/mm |
| SKU | 50239SCS |
| Solid Length | 5 mm |
| Suggested Max Deflection | 4.19 mm |
| Suggested Max Load | 23.51 N |
| Total Coils | 5 |
| Wire Diameter | 0.99 mm |
The 50239SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.039" diameter 316 stainless steel, the 50239S spring design exhibits reliable strength across its 5 active coils, withstanding repeated compression cycles with a maximum load of 5.285 lbf without succumbing to fatigue.
We manufacture the 50239S design to provide a compression spring that is 0.472" long at rest and provides a consistent rate of 32.04 lbs/in along its recommended maximum of 0.165" deflection. For best results, your application should fully accommodate the inner (0.276") and outer (0.354") diameters of this spring and be designed for its closed & ground end configuration.
