Century Spring

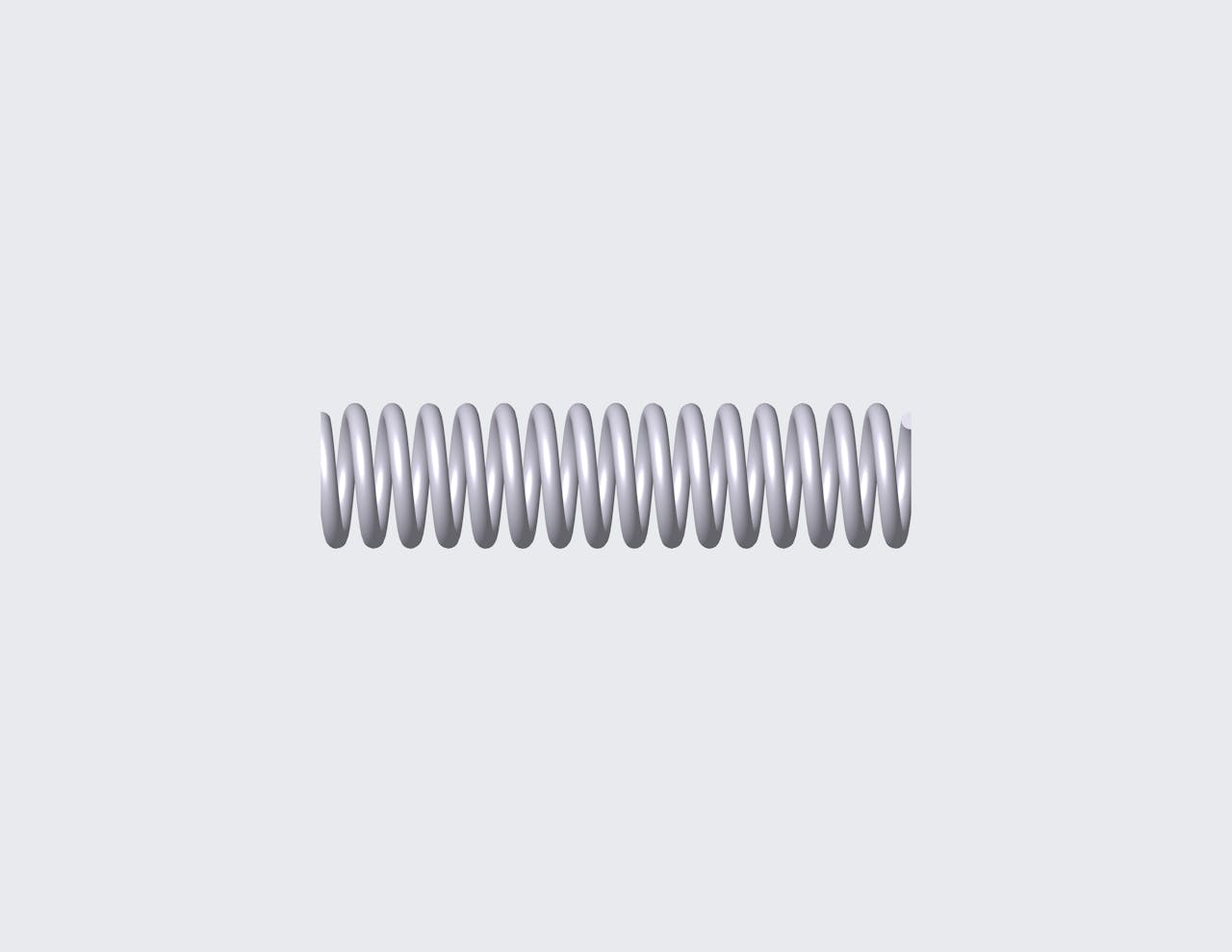

50219SCS - 1.378" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 15.3 coils and closed & ground ends. This spring features an O.D. of 0.341", and an I.D. of 0.246".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50219S
Ends Closed & Ground
Finish Passivated
Free Length 1.378 in
Inside Diameter 0.246 in
Material 316 Stainless Steel
Outside Diameter 0.341 in
Rate 18.556 lbs/in
SKU 50219SCS
Solid Length 0.723 in
Suggested Max Deflection 0.482 in
Suggested Max Load 8.937 lbf
Total Coils 15.3
Wire Diameter 0.047 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50219S
Ends Closed & Ground
Finish Passivated
Free Length 35 mm
Inside Diameter 6.25 mm
Material 316 Stainless Steel
Outside Diameter 8.66 mm
Rate 3.25 N/mm
SKU 50219SCS
Solid Length 18.36 mm
Suggested Max Deflection 12.24 mm
Suggested Max Load 39.75 N
Total Coils 15.3
Wire Diameter 1.19 mm
The compression spring 50219SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 50219S compression spring design exhibits exceptional tensile strength and resilience.

The 50219S design is manufactured with a free length of 1.378", with an outer diameter of 0.341", an inner diameter of 0.246", and a total of 15.3 coils, expertly designed to deliver consistent compression characteristics including a rate of 18.556 lbs/in.

The 50219SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 50219S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
