Century Spring

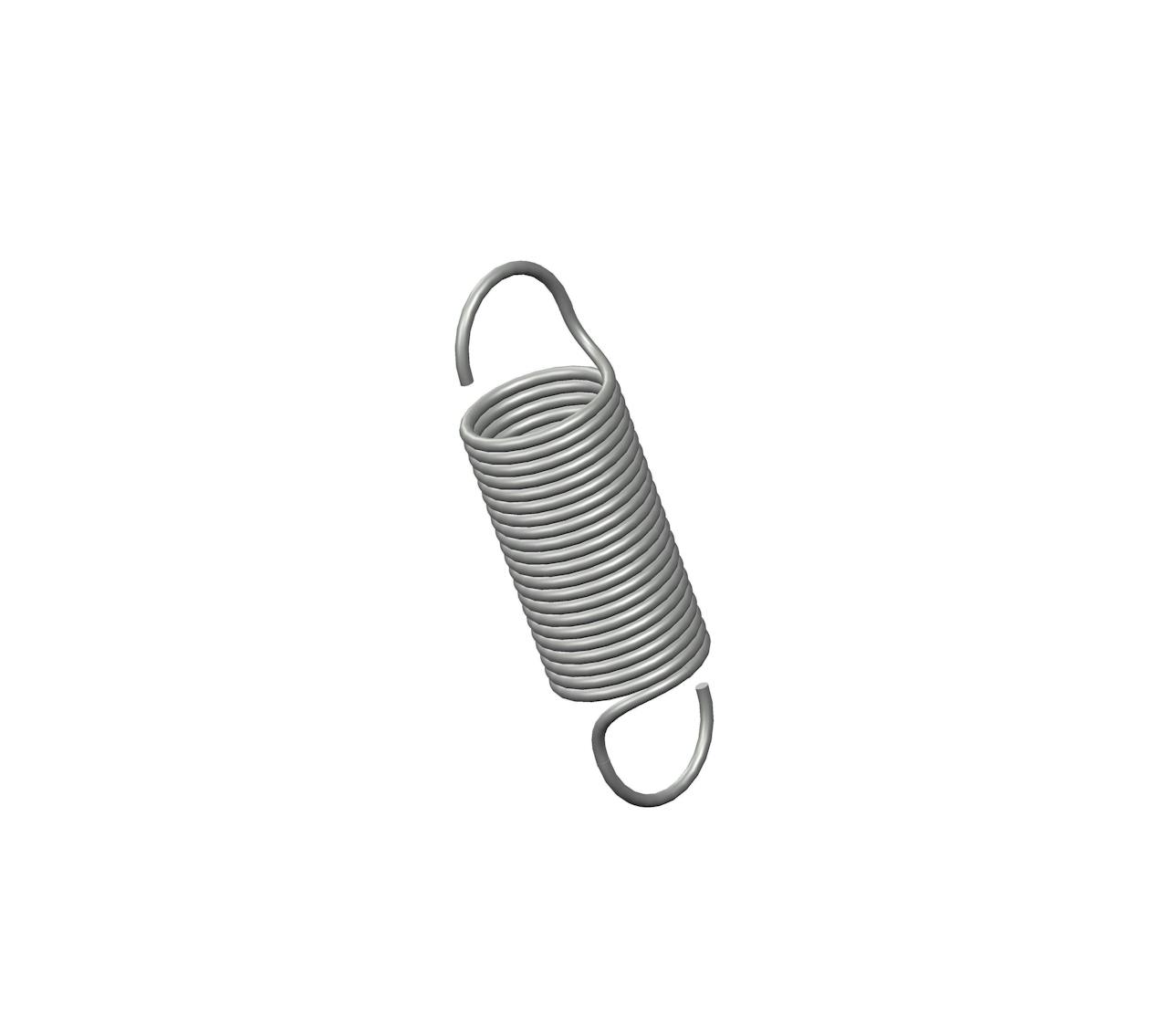

5017CS - 2.34 Inch High Carbon Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in High Carbon Steel. This spring features an O.D. of 0.625 Inch and an initial tension of 1 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5017
Ends Full Loop
Finish Zinc
Initial Tension 1 lb
Length 2.34 in
Material High Carbon Steel
Outside Diameter 0.625 in
Part Type Standard
Rate 2.4 lbs/in
SKU 5017CS
Sugg Max Deflection 3.1 in
Sugg Max Load 8.3 lbf
Wind Direction Left
Wire Diameter 0.054 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5017
Ends Full Loop
Finish Zinc
Initial Tension 0.45 kg
Length 59.44 mm
Material High Carbon Steel
Outside Diameter 15.88 mm
Part Type Standard
Rate 0.42 N/mm
SKU 5017CS
Sugg Max Deflection 78.74 mm
Sugg Max Load 36.92 N
Wind Direction Left
Wire Diameter 1.37 mm
