Century Spring

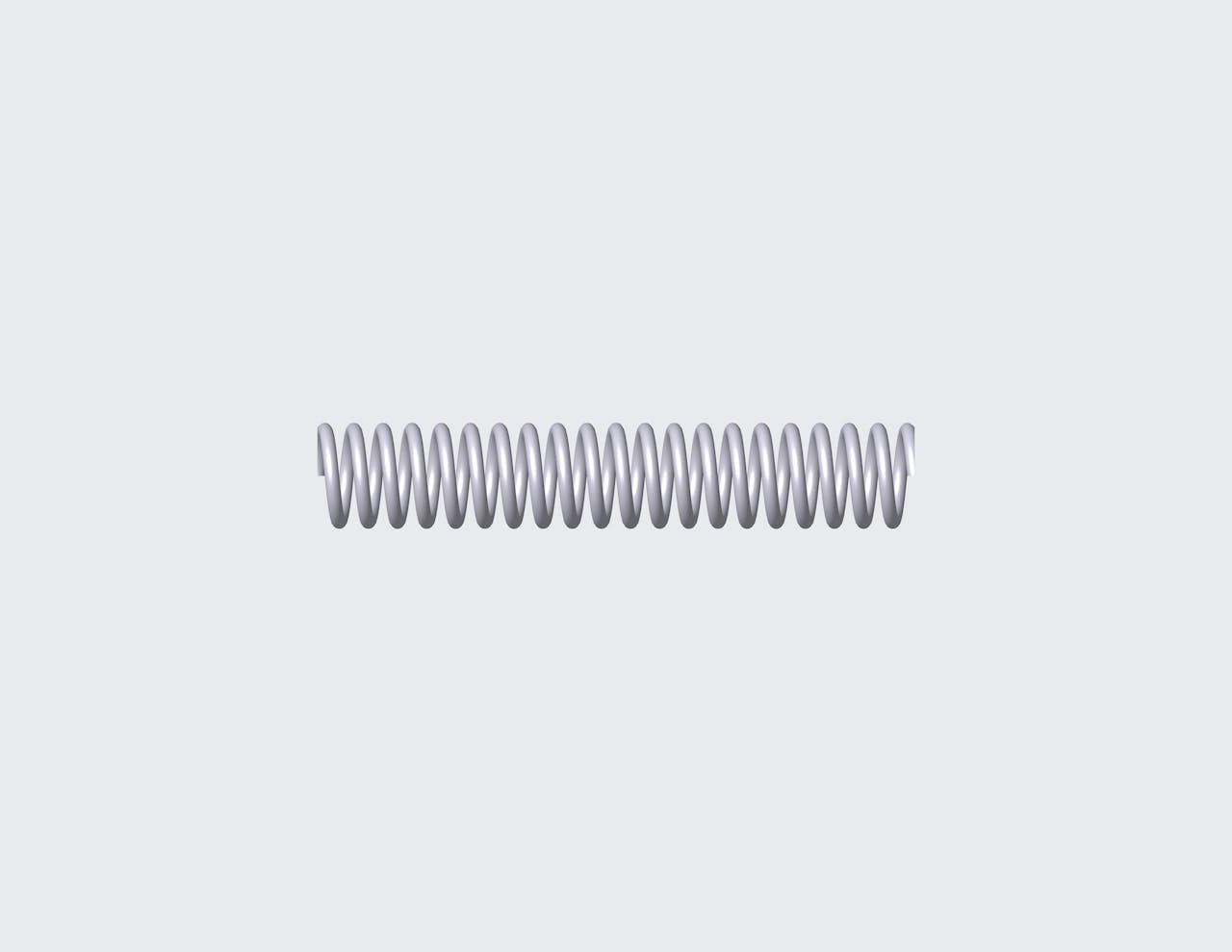

50172SCS - 1.614" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 20 coils and closed & ground ends. This spring features an O.D. of 0.287", and an I.D. of 0.209".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50172S
Ends Closed & Ground
Finish Passivated
Free Length 1.614 in
Inside Diameter 0.209 in
Material 316 Stainless Steel
Outside Diameter 0.287 in
Rate 10.934 lbs/in
SKU 50172SCS
Solid Length 0.787 in
Suggested Max Deflection 0.586 in
Suggested Max Load 6.412 lbf
Total Coils 20
Wire Diameter 0.039 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50172S
Ends Closed & Ground
Finish Passivated
Free Length 41 mm
Inside Diameter 5.31 mm
Material 316 Stainless Steel
Outside Diameter 7.29 mm
Rate 1.91 N/mm
SKU 50172SCS
Solid Length 19.99 mm
Suggested Max Deflection 14.88 mm
Suggested Max Load 28.52 N
Total Coils 20
Wire Diameter 0.99 mm
The compression spring 50172SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 50172S compression spring design exhibits exceptional tensile strength and resilience.

The 50172S design is manufactured with a free length of 1.614", with an outer diameter of 0.287", an inner diameter of 0.209", and a total of 20 coils, expertly designed to deliver consistent compression characteristics including a rate of 10.934 lbs/in.

The 50172SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 50172S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
