Century Spring

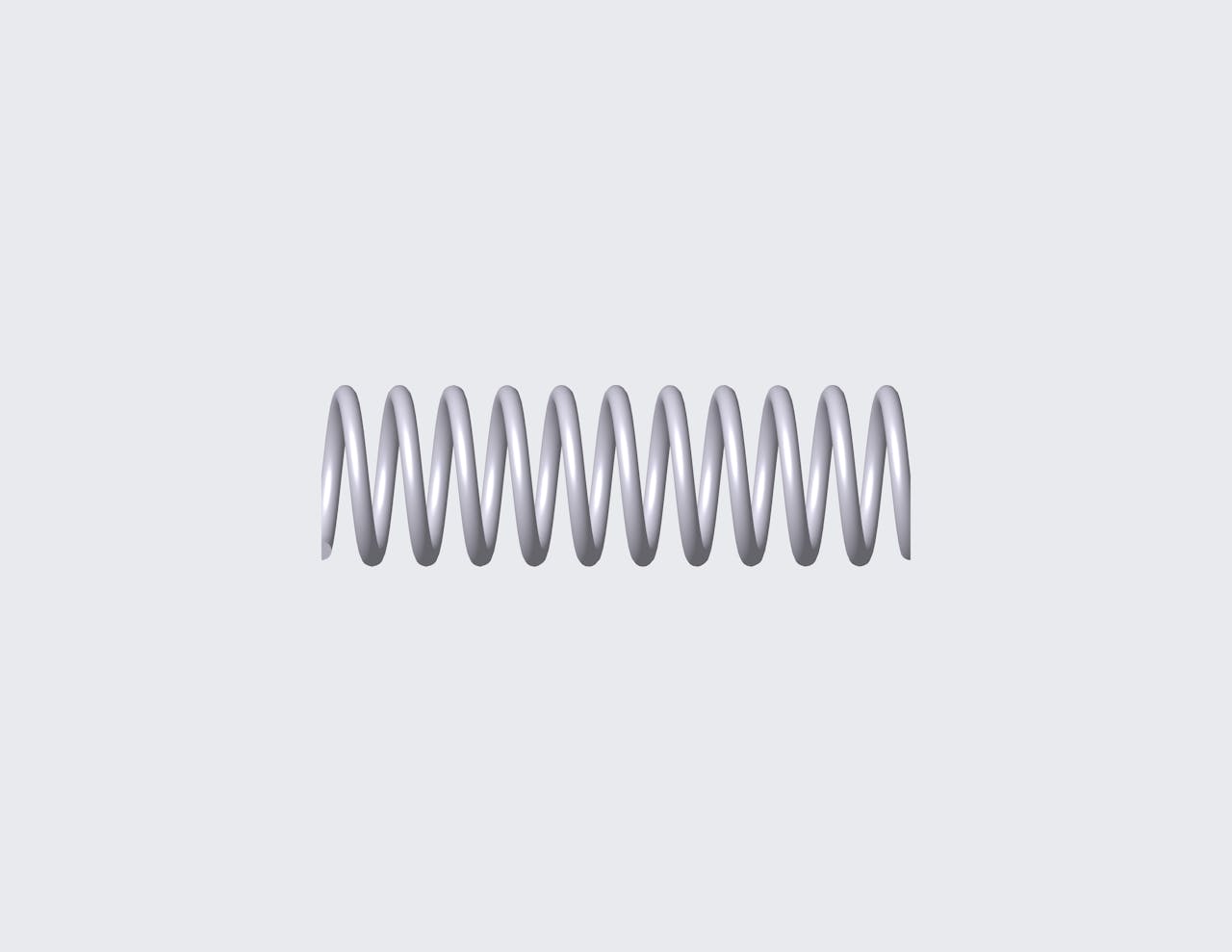

50152SCS - 0.906" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 10.5 coils and closed & ground ends. This spring features an O.D. of 0.28", and an I.D. of 0.217".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50152S
Ends Closed & Ground
Finish Passivated
Free Length 0.906 in
Inside Diameter 0.217 in
Material 316 Stainless Steel
Outside Diameter 0.28 in
Rate 9.484 lbs/in
SKU 50152SCS
Solid Length 0.331 in
Suggested Max Deflection 0.361 in
Suggested Max Load 3.427 lbf
Total Coils 10.5
Wire Diameter 0.031 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50152S
Ends Closed & Ground
Finish Passivated
Free Length 23.01 mm
Inside Diameter 5.51 mm
Material 316 Stainless Steel
Outside Diameter 7.11 mm
Rate 1.66 N/mm
SKU 50152SCS
Solid Length 8.41 mm
Suggested Max Deflection 9.17 mm
Suggested Max Load 15.24 N
Total Coils 10.5
Wire Diameter 0.79 mm
The 50152S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 316 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 50152SCS compression spring is designed with a free length of 0.827" total of 10 coils, and a rate of 10.077 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 50152S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
