Century Spring

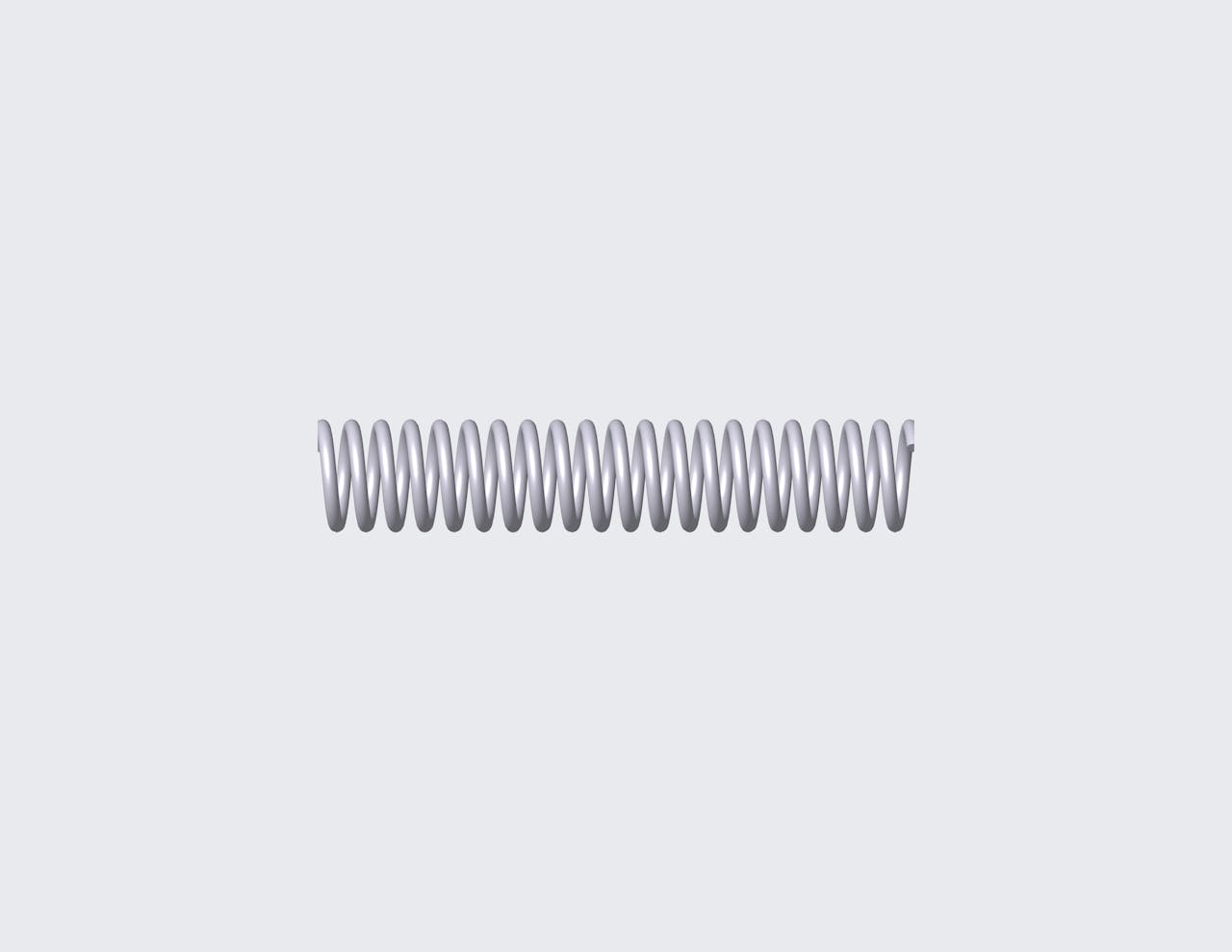

50108SCS - 1.181" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 19.8 coils and closed & ground ends. This spring features an O.D. of 0.224", and an I.D. of 0.165".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50108S
Ends Closed & Ground
Finish Passivated
Free Length 1.181 in
Inside Diameter 0.165 in
Material 316 Stainless Steel
Outside Diameter 0.224 in
Rate 7.213 lbs/in
SKU 50108SCS
Solid Length 0.585 in
Suggested Max Deflection 0.482 in
Suggested Max Load 3.477 lbf
Total Coils 19.8
Wire Diameter 0.03 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50108S
Ends Closed & Ground
Finish Passivated
Free Length 30 mm
Inside Diameter 4.19 mm
Material 316 Stainless Steel
Outside Diameter 5.69 mm
Rate 1.26 N/mm
SKU 50108SCS
Solid Length 14.86 mm
Suggested Max Deflection 12.24 mm
Suggested Max Load 15.47 N
Total Coils 19.8
Wire Diameter 0.76 mm
The 50108SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.03" diameter 316 stainless steel, the 50108S spring design exhibits reliable strength across its 19.8 active coils, withstanding repeated compression cycles with a maximum load of 3.477 lbf without succumbing to fatigue.

We manufacture the 50108S design to provide a compression spring that is 1.181" long at rest and provides a consistent rate of 7.213 lbs/in along its recommended maximum of 0.482" deflection. For best results, your application should fully accommodate the inner (0.165") and outer (0.224") diameters of this spring and be designed for its closed & ground end configuration.
