Century Spring

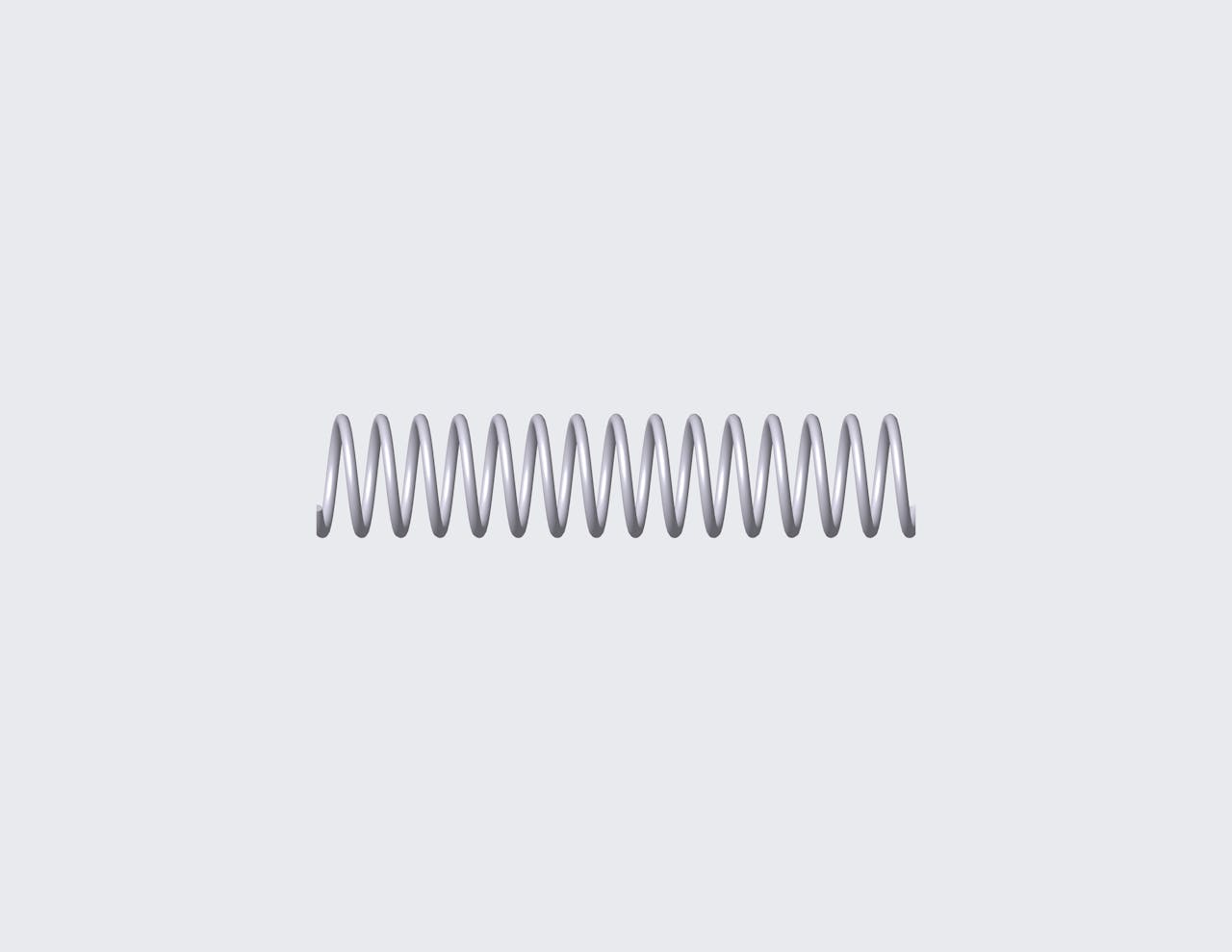

50094SCS - 0.984" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 15 coils and closed & ground ends. This spring features an O.D. of 0.205", and an I.D. of 0.165".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50094S
Ends Closed & Ground
Finish Passivated
Free Length 0.984 in
Inside Diameter 0.165 in
Material 316 Stainless Steel
Outside Diameter 0.205 in
Rate 2.279 lbs/in
SKU 50094SCS
Solid Length 0.295 in
Suggested Max Deflection 0.506 in
Suggested Max Load 1.153 lbf
Total Coils 15
Wire Diameter 0.02 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50094S
Ends Closed & Ground
Finish Passivated
Free Length 24.99 mm
Inside Diameter 4.19 mm
Material 316 Stainless Steel
Outside Diameter 5.21 mm
Rate 0.4 N/mm
SKU 50094SCS
Solid Length 7.49 mm
Suggested Max Deflection 12.85 mm
Suggested Max Load 5.13 N
Total Coils 15
Wire Diameter 0.51 mm
The compression spring 50094SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 50094S compression spring design exhibits exceptional tensile strength and resilience.

The 50094S design is manufactured with a free length of 0.984", with an outer diameter of 0.205", an inner diameter of 0.165", and a total of 15 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.279 lbs/in.

The 50094SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 50094S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
