Century Spring

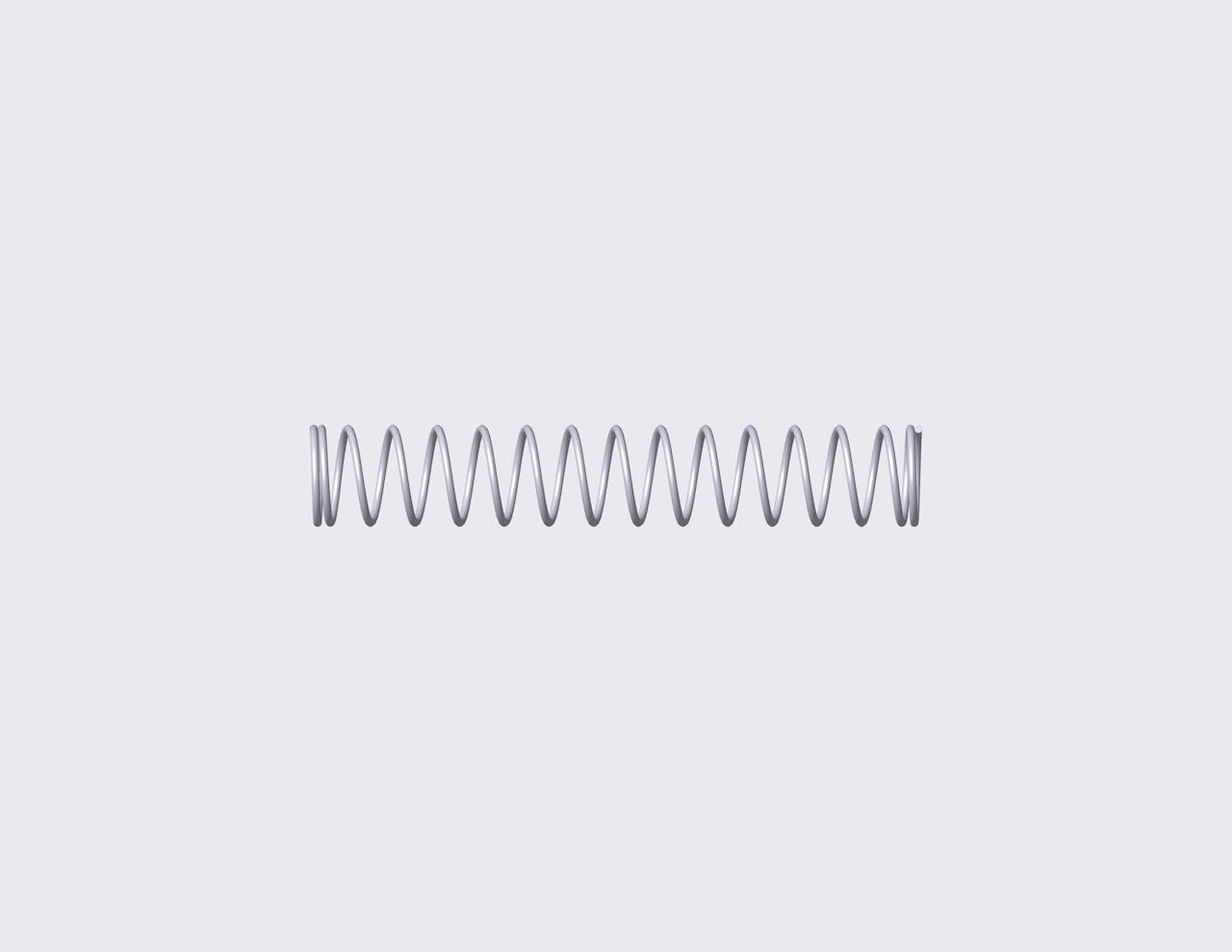

50091SCS - 1.181" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 16 coils and closed ends. This spring features an O.D. of 0.197", and an I.D. of 0.165".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50091S
Ends Closed
Finish Passivated
Free Length 1.181 in
Inside Diameter 0.165 in
Material 316 Stainless Steel
Outside Diameter 0.197 in
Rate 0.925 lbs/in
SKU 50091SCS
Solid Length 0.268 in
Suggested Max Deflection 0.67 in
Suggested Max Load 0.619 lbf
Total Coils 16
Wire Diameter 0.016 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50091S
Ends Closed
Finish Passivated
Free Length 30 mm
Inside Diameter 4.19 mm
Material 316 Stainless Steel
Outside Diameter 5 mm
Rate 0.16 N/mm
SKU 50091SCS
Solid Length 6.81 mm
Suggested Max Deflection 17.02 mm
Suggested Max Load 2.75 N
Total Coils 16
Wire Diameter 0.41 mm
The compression spring 50091SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 50091S compression spring design exhibits exceptional tensile strength and resilience.

The 50091S design is manufactured with a free length of 1.181", with an outer diameter of 0.197", an inner diameter of 0.165", and a total of 16 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.925 lbs/in.

The 50091SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 50091S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
