50090SCS - 0.394" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

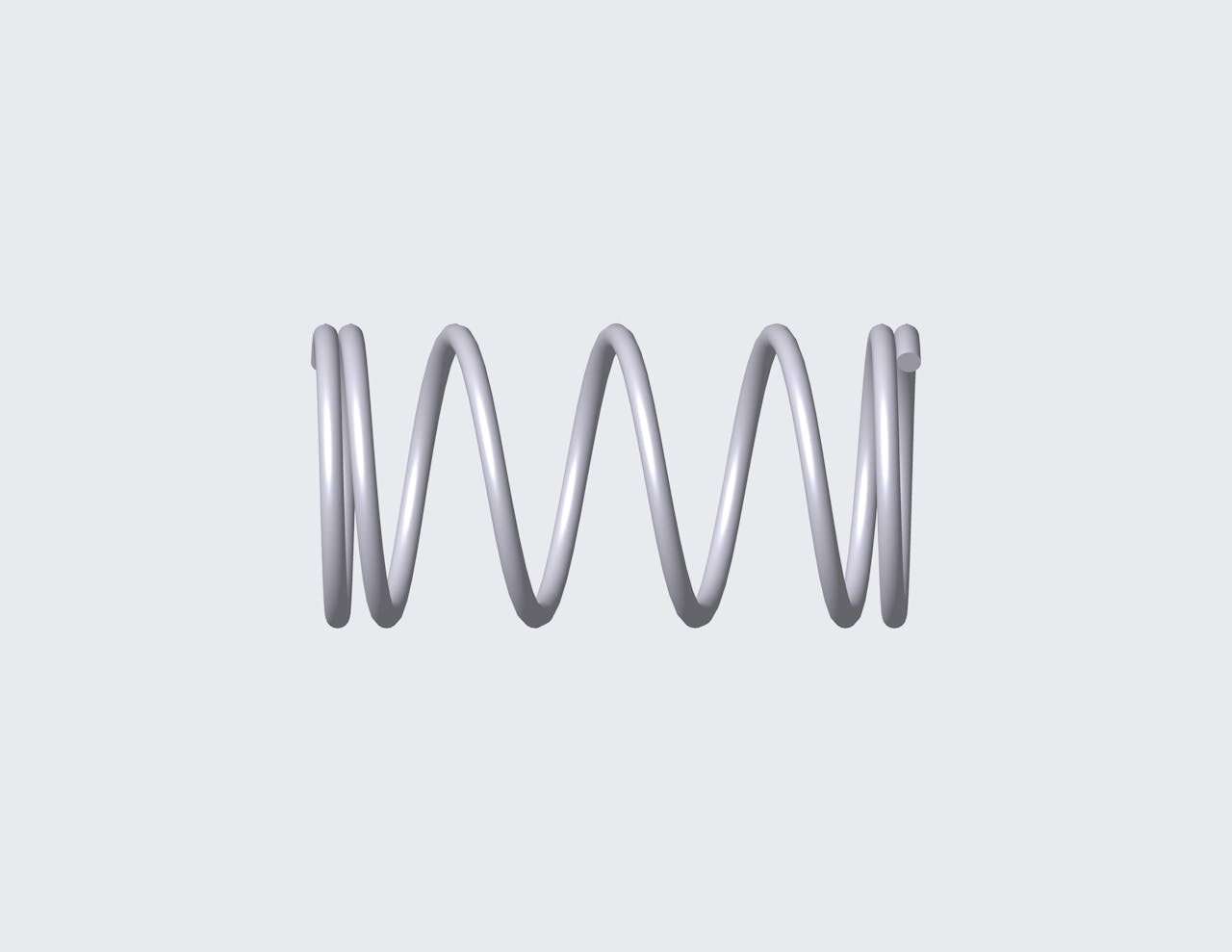

Compression spring manufactured from 316 stainless steel with 6.2 coils and closed ends. This spring features an O.D. of 0.197", and an I.D. of 0.165".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50090S
Ends Closed
Finish Passivated
Free Length 0.394 in
Inside Diameter 0.165 in
Material 316 Stainless Steel
Outside Diameter 0.197 in
Rate 3.082 lbs/in
SKU 50090SCS
Solid Length 0.113 in
Suggested Max Deflection 0.201 in
Suggested Max Load 0.619 lbf
Total Coils 6.2
Wire Diameter 0.016 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50090S
Ends Closed
Finish Passivated
Free Length 10.01 mm
Inside Diameter 4.19 mm
Material 316 Stainless Steel
Outside Diameter 5 mm
Rate 0.54 N/mm
SKU 50090SCS
Solid Length 2.87 mm
Suggested Max Deflection 5.11 mm
Suggested Max Load 2.75 N
Total Coils 6.2
Wire Diameter 0.41 mm
The 50090SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.016" diameter 316 stainless steel, the 50090S spring design exhibits reliable strength across its 6.2 active coils, withstanding repeated compression cycles with a maximum load of 0.619 lbf without succumbing to fatigue.

We manufacture the 50090S design to provide a compression spring that is 0.394" long at rest and provides a consistent rate of 3.082 lbs/in along its recommended maximum of 0.201" deflection. For best results, your application should fully accommodate the inner (0.165") and outer (0.197") diameters of this spring and be designed for its closed end configuration.
