Century Spring

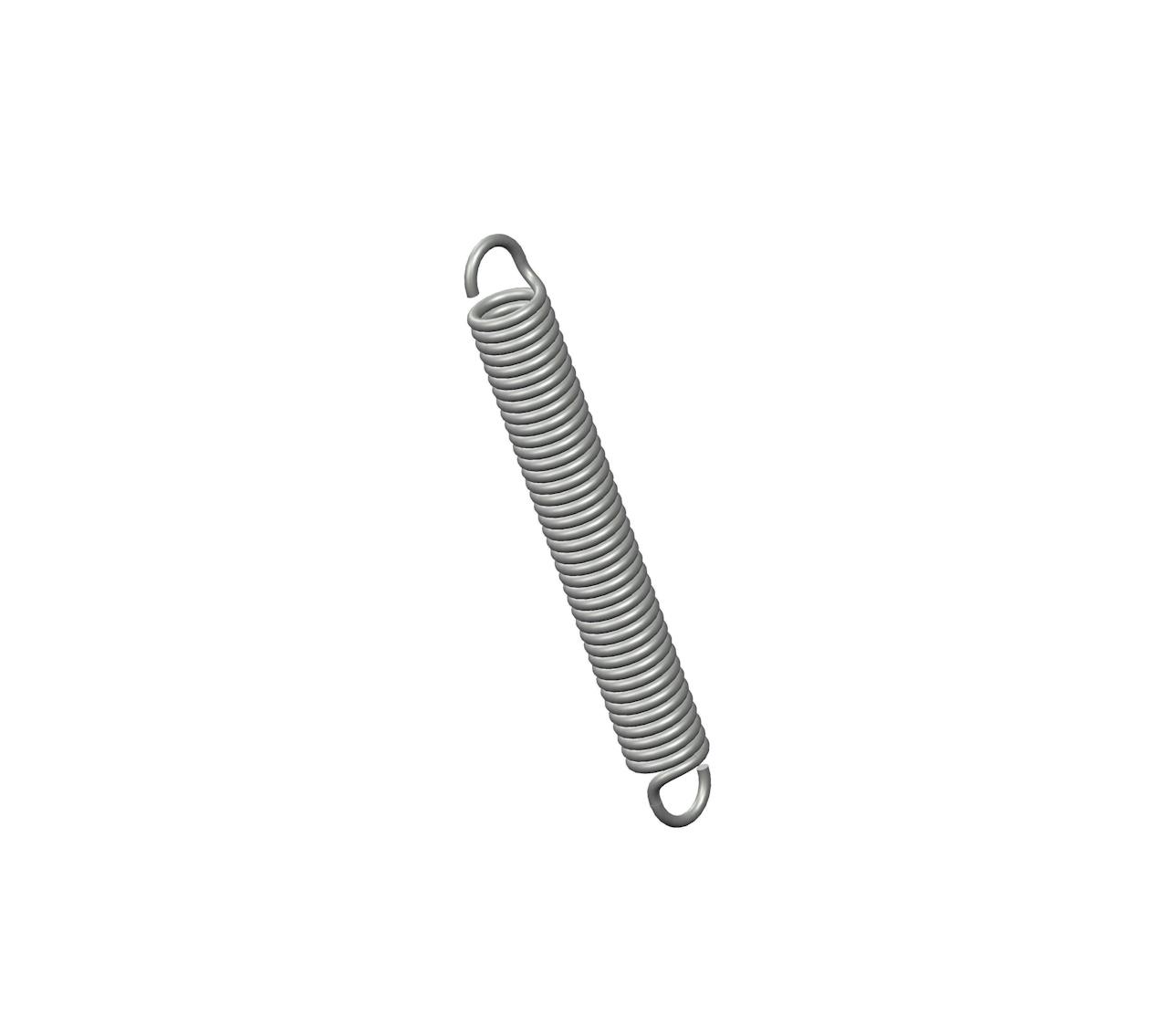

5005CS - 5.75 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.718 Inch and an initial tension of 17 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5005
Ends Extended Hook
Finish Zinc
Initial Tension 17 lb
Length 5.75 in
Material Spring Steel
Outside Diameter 0.718 in
Part Type Standard
Rate 27 lbs/in
SKU 5005CS
Sugg Max Deflection 1.7 in
Sugg Max Load 62 lbf
Wind Direction Left
Wire Diameter 0.112 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5005
Ends Extended Hook
Finish Zinc
Initial Tension 7.71 kg
Length 146.05 mm
Material Spring Steel
Outside Diameter 18.24 mm
Part Type Standard
Rate 4.73 N/mm
SKU 5005CS
Sugg Max Deflection 43.18 mm
Sugg Max Load 275.78 N
Wind Direction Left
Wire Diameter 2.84 mm
