Century Spring

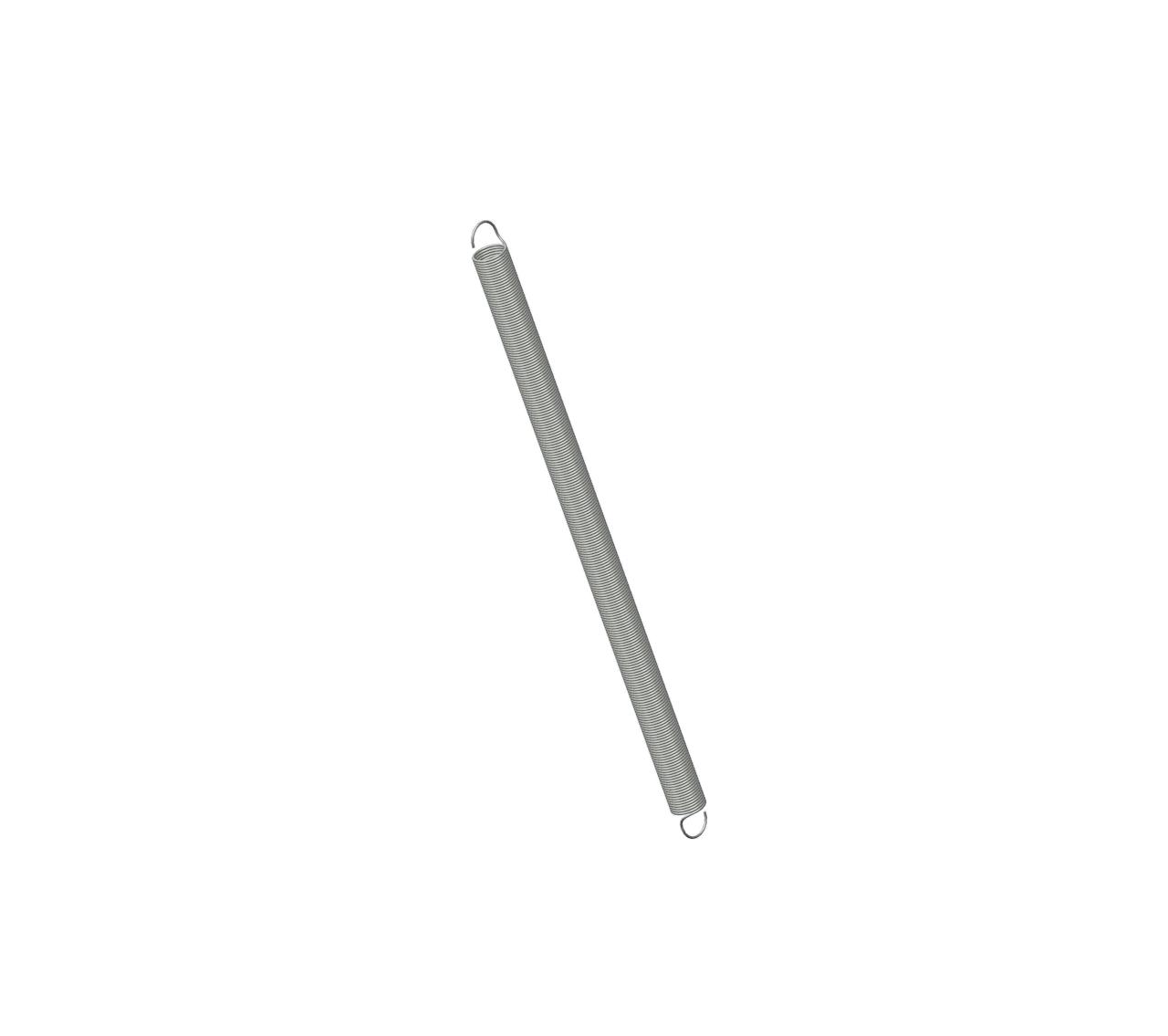

5001CS - 12 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.625 Inch and an initial tension of 0.6 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5001
Ends Machine Hook
Finish Zinc
Initial Tension 0.6 lb
Length 12 in
Material Spring Steel
Outside Diameter 0.625 in
Part Type Standard
Rate 0.17 lbs/in
SKU 5001CS
Sugg Max Deflection 32 in
Sugg Max Load 6.2 lbf
Wind Direction Left
Wire Diameter 0.048 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5001
Ends Machine Hook
Finish Zinc
Initial Tension 0.27 kg
Length 304.8 mm
Material Spring Steel
Outside Diameter 15.88 mm
Part Type Standard
Rate 0.03 N/mm
SKU 5001CS
Sugg Max Deflection 812.8 mm
Sugg Max Load 27.58 N
Wind Direction Left
Wire Diameter 1.22 mm
