Century Spring

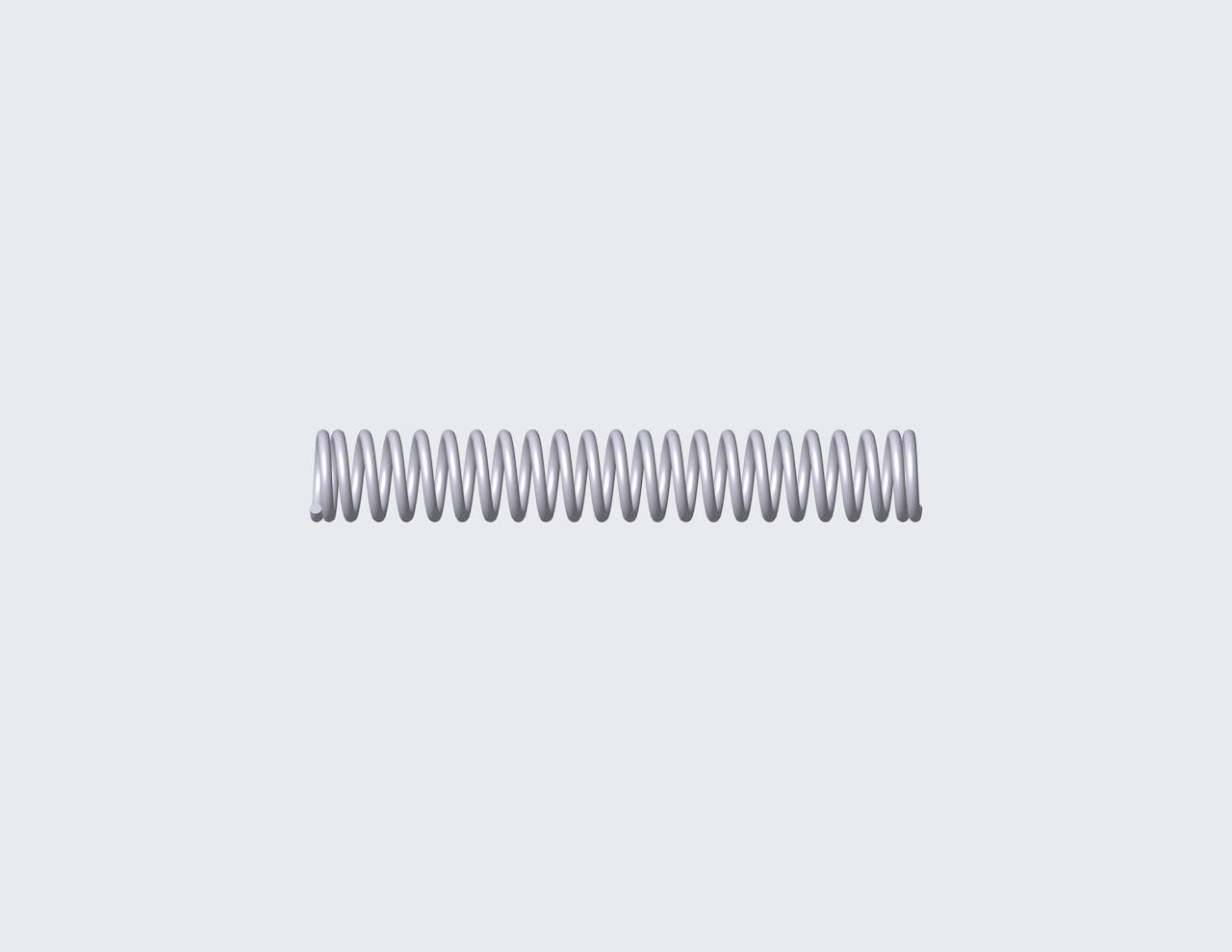

50006SCS - 0.394" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 23.2 coils and closed ends. This spring features an O.D. of 0.06", and an I.D. of 0.044".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50006S
Ends Closed
Finish Passivated
Free Length 0.394 in
Inside Diameter 0.044 in
Material 316 Stainless Steel
Outside Diameter 0.06 in
Rate 1.615 lbs/in
SKU 50006SCS
Solid Length 0.191 in
Suggested Max Deflection 0.16 in
Suggested Max Load 0.258 lbf
Total Coils 23.2
Wire Diameter 0.008 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50006S
Ends Closed
Finish Passivated
Free Length 10.01 mm
Inside Diameter 1.12 mm
Material 316 Stainless Steel
Outside Diameter 1.52 mm
Rate 0.28 N/mm
SKU 50006SCS
Solid Length 4.85 mm
Suggested Max Deflection 4.06 mm
Suggested Max Load 1.15 N
Total Coils 23.2
Wire Diameter 0.2 mm
The 50006SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.008" diameter 316 stainless steel, the 50006S spring design exhibits reliable strength across its 23.2 active coils, withstanding repeated compression cycles with a maximum load of 0.258 lbf without succumbing to fatigue.

We manufacture the 50006S design to provide a compression spring that is 0.394" long at rest and provides a consistent rate of 1.615 lbs/in along its recommended maximum of 0.16" deflection. For best results, your application should fully accommodate the inner (0.044") and outer (0.06") diameters of this spring and be designed for its closed end configuration.
